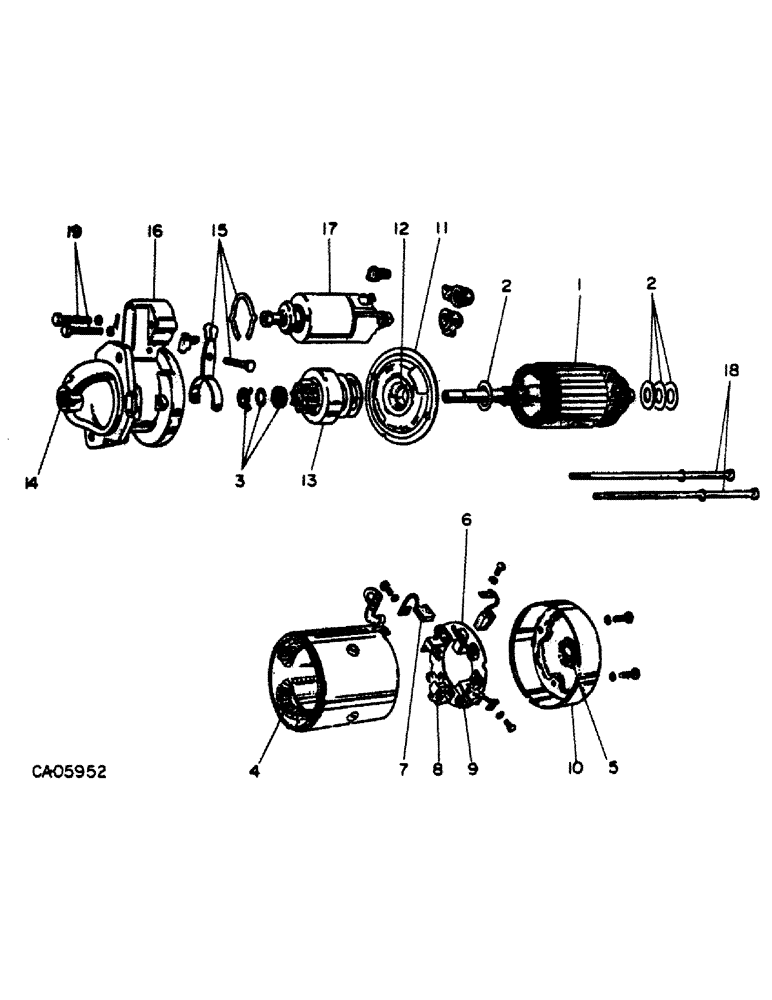

Запчасти Case IH 4150 (08-10) - ELECTRICAL, STARTER, ISUZU ENGINE, LOADER (06) - ELECTRICAL

73991C91

STARTING MOTOR

MOTOR ASSY, starter

1шт.

74569C1

BOLT, starter mounting

2шт.

74570C1

WASHER, starter mtg bolt lock

2шт.

74538C1

WASHER, starter mtg bolt flat

2шт.

1

74681C1

ARMATURE ASSY

1шт.

2

74682C1

KIT, thrust washer

1шт.

3

74683C1

KIT, pinion stop

1шт.

4

74684C1

COIL ASSY, field

1шт.

5

74685C1

WASHER, rear cover thrust, Furnish as part of 74690C1

1шт.

6

74686C91

HOLDER ASSY, brush

1шт.

7

74687C1

BRUSH, positive

2шт.

8

74688C1

BRUSH, negative

2шт.

9

74689C1

SPRING, brush

4шт.

10

74690C1

COVER ASSY, rear

1шт.

11

74691C1

BEARING ASSY, center

1шт.

12

74692C1

WASHER, center bearing thrust

1шт.

13

74693C1

DRIVE ASSY, starter

1шт.

14

74694C1

WASHER

gear case thrust, Furnished as part of 74696C1

1шт.

15

74695C1

LEVER ASSY, shift

1шт.

16

74696C1

HOUSING, gear

1шт.

17

74697C1

SWITCH

ASSY, starter

1шт.

18

74698C1

BOLT, through

2шт.

19

74699C1

BOLT, gear housing

2шт.
