Запчасти Case IH 4150 (08-01) - ELECTRICAL, ELECTRICAL, LOADER, DIESEL, LOADER, GAS (06) - ELECTRICAL

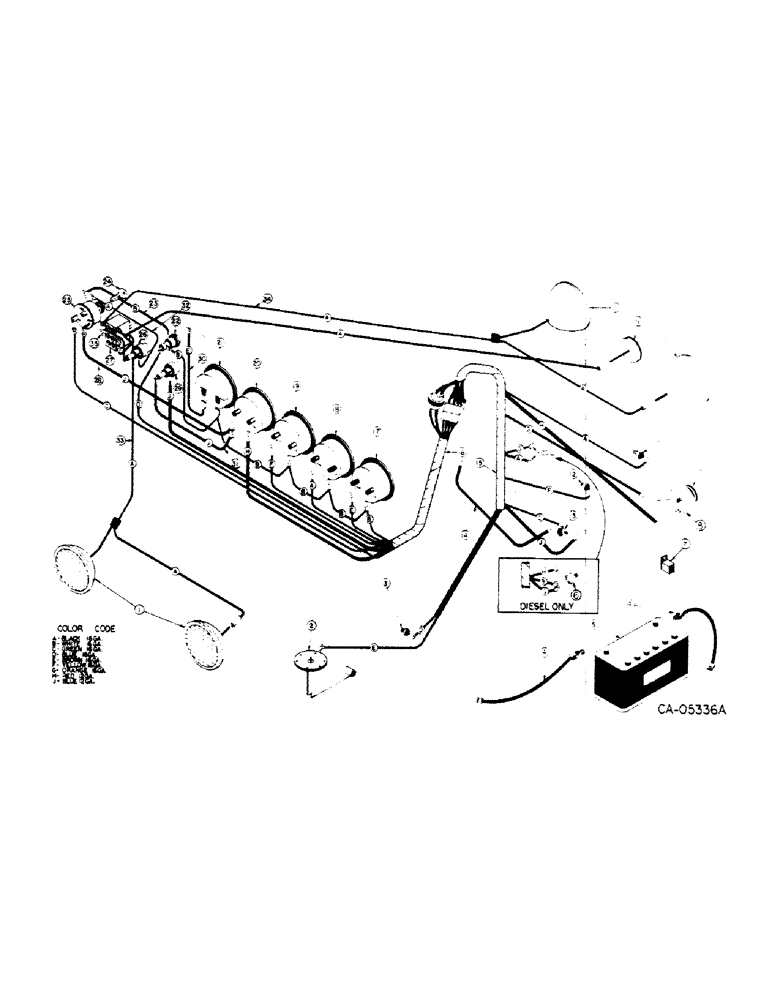

Схема запчастей Case IH 4150 - (08-01) - ELECTRICAL, ELECTRICAL, LOADER, DIESEL, LOADER, GAS (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

1

72275C91

LIGHT ASSY, head

4шт.

373662R91

LAMP

replacement #4411

4шт.

131508C1

LAMP BASE

LAMP, replacement H-7610, Furnished as part of 72275C91

4шт.

2

77597C91

KIT

fuel sender, replaces 72228C1

1шт.

72135C1

GASKET

fuel sender

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

5шт.

77695C1

WASHER

1шт.

3

72128C1

SWITCH

pressure

1шт.

4

72136C1

CABLE

battery, gas

1шт.

4

72247C1

CABLE, battery, gas

1шт.

4

72137C1

CABLE, battery, diesel

2шт.

5

IHMF24PF

DRY BATTERY

gas

1шт.

5

72039C1

BATTERY, diesel

1шт.

6

72246C1

SWITCH

oil pressure shut off, diesel

1шт.

7

72229C1

REGULATOR, voltage

1шт.

8

72268C91

ALTERNATOR, standard

1шт.

9

72233C1

PULLEY, alternator

1шт.

10

77586C91

KIT

temperature sender, Replaces 72234C1

1шт.

11

72276C91

TAIL LIGHT ASSY

1шт.

20627R1

BULB,C2F, #194, 14V

tail light #194, Furnished as part of 72276C91

1шт.

12

77590C1

SENDER UNIT

SENDER, oil pressure, Replaces 72235C1

1шт.

13

72589C1

RELAY

starter

1шт.

14

72236C1

CABLE, starter

1шт.

15

72139C1

HARNESS, engine wiring, gas

1шт.

15

72140C1

HARNESS, engine wiring, diesel

1шт.

16

72141C1

HARNESS

canopy wiring, gas

1шт.

16

72142C1

HARNESS, canopy wiring, diesel

1шт.

17

77597C91

KIT

fuel gauge, Replaces 72237C1

1шт.

18

77586C91

KIT

temperature gauge, Replaces 72238C1

1шт.

19

77589C1

GAUGE

oil pressure, Replaces 72239C1

1шт.

20

77592C91

KIT

ammeter, Replaces 72240C1

1шт.

21

72241C1

METER

hour

1шт.

22

72242C1

LIGHT, indicator

1шт.

58554C1

BULB,C2F, #1892, 14V

replacement, #1892, Furnished as part of 72242C1

1шт.

23

72143C1

CABLE, jumper, ind, Serial Range: lt.-ign

1шт.

24

72243C1

KEY

ignition

1шт.

25

72244C1

IGNITION SWITCH

SWITCH, ignition

1шт.

26

72277C1

HOLDER, 20 amp fuse

1шт.

432644

FUSE,20 Amp, Type SFE

20 amp, SFE 20

1шт.

27

647646C91

SWITCH, light

1шт.

28

72144C1

CABLE, jumper, Serial Range: ammeter-switch

1шт.

29

72245C1

HOLDER, 30 amp fuse

1шт.

147686

FUSE,30 Amp, Type SFE

30 amp, SFE 30

1шт.

30

72145C1

CABLE, jumper, hour, Serial Range: meter-ground

1шт.

31

72146C1

CABLE, jumper, Serial Range: ammeter-fuse

1шт.

32

72278C1

CABLE, jumper, 20 amp fuse to ignition switch

1шт.

33

72279C1

HARNESS, running lights wiring

1шт.

34

72280C1

HARNESS, working lights wiring

1шт.

35

72281C1

CABLE, jumper, fuse to light switch

1шт.

72208C1

ANGLE, light kit, bracket

1шт.
