Запчасти Case IH 4150 (13-06) - SUPERSTRUCTURE, SUPERSTRUCTURE, LOADER (05) - SUPERSTRUCTURE

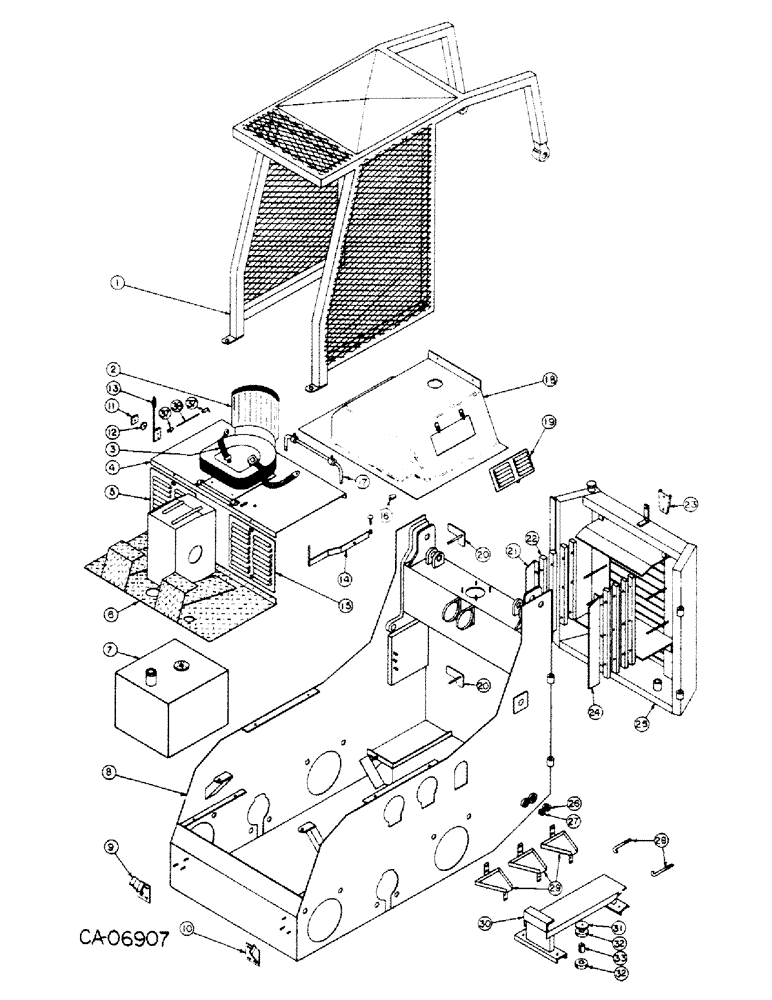

Схема запчастей Case IH 4150 - (13-06) - SUPERSTRUCTURE, SUPERSTRUCTURE, LOADER (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

72148C1

TOP, rops, canopy

1шт.

328400C1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW, 1/4-14 x 3/4 cad c/r s/d tap

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

2шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

2

77991C91

SEAT ASSY.

SEAT ASSY

1шт.

77992C1

CUSHION

seat, back

1шт.

77993C1

CUSHION

seat, bottom

1шт.

77994C1

FRAME, seat

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

2шт.

3

72179C1

BELT

SAFETY BELT

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 type 5

2шт.

4

72001C2

PLATE, SEAT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x.051

4шт.

78054C1

STRIP, wear pad

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

No. 6 x 1/2 znp p/hdcr mach

2шт.

178349

LOCK WASHER,Ext-Int Tooth, #6

WASHER, No. 6 ext-int tooth lock

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

5

73843C1

PLATE, kick, RH

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

6

77799C1

PLATFORM, floor w/console

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

7

77800C1

TANK, fuel

1шт.

72187C1

CAP

fuel tank

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

444709

PLUG,Hex Soc, 3/4"-14

3/4-14 auto hex-soc-hd drain

1шт.

8

78150C1

FRAME, main

1шт.

9

73845C1

GUIDE, boom, RH

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

10

73846C1

GUIDE, boom, LH

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

11

72007C1

PAD, restrictor

1шт.

12

78242C1

BELLEVILLE WASHER

belleville, Replaces 73847C1

1шт.

13

72006C1

LEVER, throttle

1шт.

72125C1

GRIP, throttle lever

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

14

76986C1

ARM, safety lock

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8 x 2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/l2 type 5

1шт.

120376

NUT,5/16"-18, G5

2шт.

15

72005C1

PLATE, kick, LH

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

16

75199C1

BAR, shroud, tab

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

17

75009C1

ROD, throttle crossover

1шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18

77802C1

ORIFICE RING

SHROUD, engine

1шт.

72150C1

CLIP, shroud

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

19

72008C1

VENTILATOR, engine shroud

1шт.

20

78151C1

HANDLE, latch

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

2шт.

21

78152C1

SUPPORT, cooler, RH

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

3шт.

22

78153C1

STRIP, filler, As required

1шт.

23

398976R1

BRACKET

SOCKET, smv

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

24

78154C1

SUPPORT, cooler, LH

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 cad p/t lock type 5

3шт.

25

78155C91

HOUSING, rear grill

1шт.

72265C1

CAP

radiator

1шт.

444705

PLUG,Hex Soc, 1/2"-14, Brass

1/2-14 soc hd auto pipe

2шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5 type 5

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

2шт.

26

444705

PLUG,Hex Soc, 1/2"-14, Brass

1/2-14 soc hd auto pipe

2шт.

27

444699

PLUG,Hex Soc, 3/8"-18

3/8-18 soc hd auto pipe

1шт.

28

73855C1

BOLT,5/8" - 11 x 5 1/2"

J

2шт.

131016

WASHER

.656 x 1.312 x .074

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

29

73856C1

SUPPORT, filter mount

3шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

30

77803C1

SUPPORT, lower motor, mount

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

31

72157C1

WASHER, retainer

4шт.

32

72158C1

MOUNT, rubber

8шт.

33

72159C1

BUSHING

4шт.

37

72266C1

END

rod

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

38

75008C1

STUD

throttle

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

Выбрано товаров: 113
