Запчасти Case IH 4150 (13-01) - SUPERSTRUCTURE, SUPERSTRUCTURE, LOADER, DIESEL LOADER, GAS (05) - SUPERSTRUCTURE

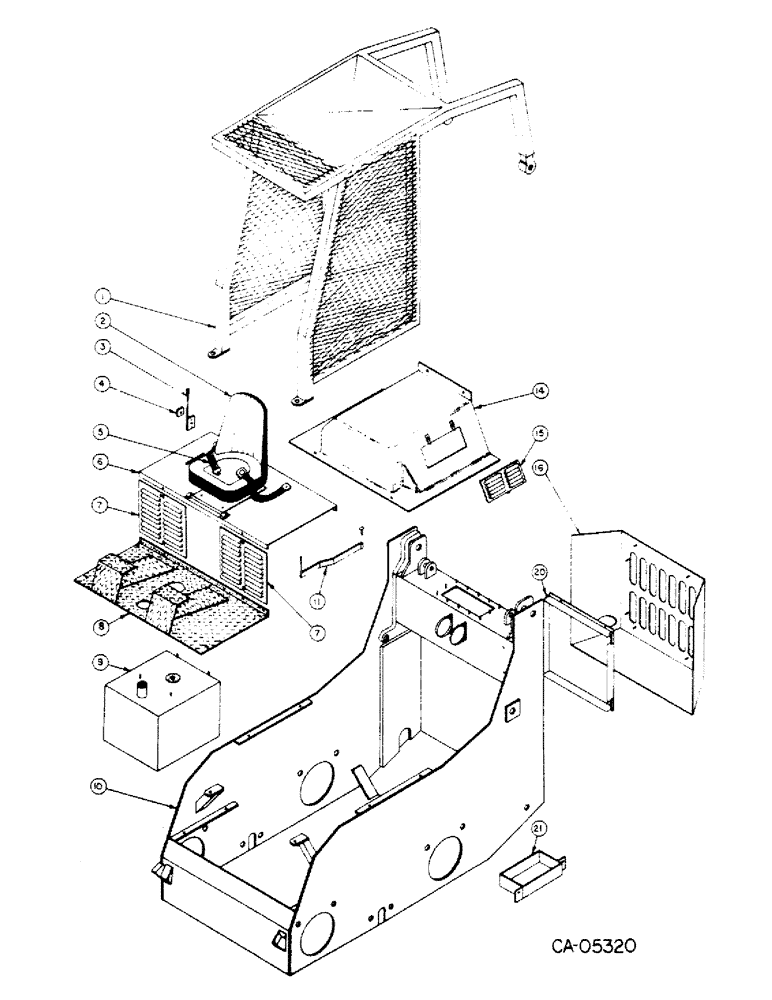

Схема запчастей Case IH 4150 - (13-01) - SUPERSTRUCTURE, SUPERSTRUCTURE, LOADER, DIESEL LOADER, GAS (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

72148C1

TOP, ROPS, canopy

1шт.

328400C1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW, 1/4-14 x 3/4 znd hex-hd tap

2шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

2

72009C1

SEAT

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

2шт.

3

72006C1

LEVER, throttle

1шт.

72125C1

GRIP, throttle lever

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 znd hex lock

1шт.

4

72007C1

PAD, restrictor

1шт.

5

72179C1

BELT

SAFETY BELT

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

7/16-14 x 1-1/4 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex

2шт.

6

72000C1

PLATE, seat, gas

1шт.

6

72001C1

PLATE, seat, diesel

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

7

72005C1

PLATE, kick

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd pln

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

8

72002C1

PLATE, floor

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

9

72152C1

TANK, fuel

1шт.

72187C1

CAP

fuel tank

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 and hex-hd cap

4шт.

444709

PLUG,Hex Soc, 3/4"-14

3/4-14 auto hex-soc-hd drain

1шт.

10

72147C1

FRAME, main

1шт.

72149C1

BRACKET, filter

1шт.

11

72004C1

SUPPORT, safety lock, bar

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8-16 x 2 znd crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

SCREW, 5/16-18 x 1-1/l2 znd hex-hd cap

1шт.

120376

NUT,5/16"-18, G5

2шт.

14

72011C1

SHROUD

engine

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd pln

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

15

72008C1

VENTILATOR, engine shroud

2шт.

72150C1

CLIP, hood

4шт.

16

72003C1

GRILLE

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 znd hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 phc hex lock

2шт.

20

72013C1

SHROUD, hot air outlet

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 znd pln

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

21

72014C1

BOX, battery, gas

1шт.

21

72015C1

BOX, battery, diesel

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

Выбрано товаров: 60
