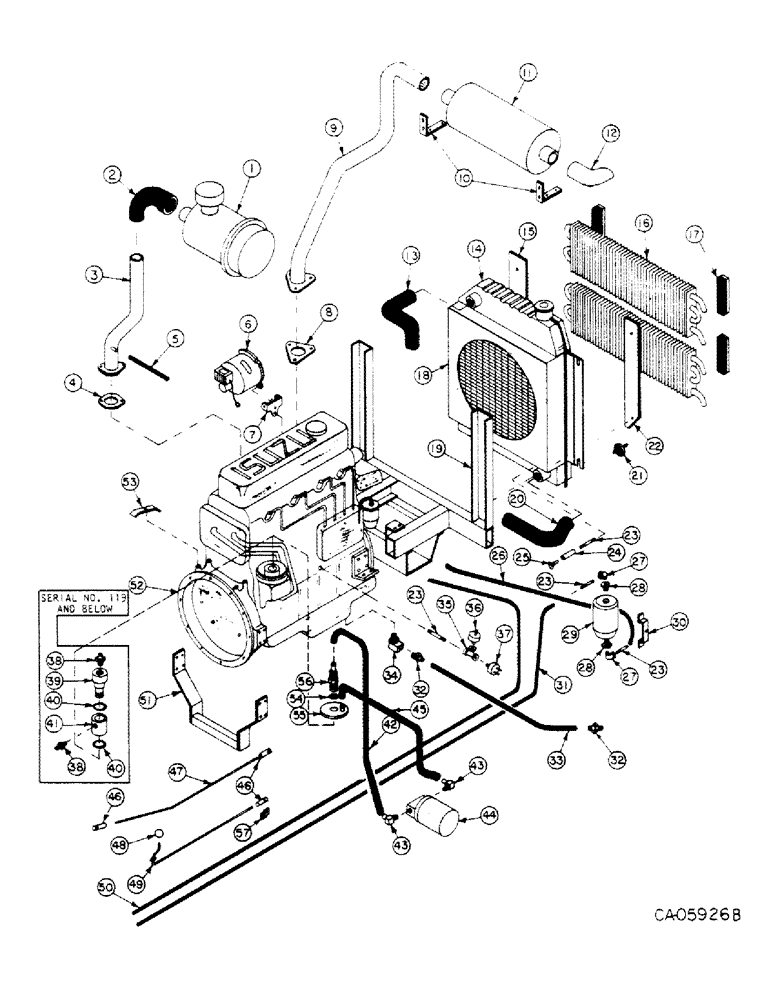

Запчасти Case IH 4150 (12-48) - POWER, ENGINE AND MOUNTING, DIESEL, LOADER, ISUZU ENGINE (04) - Drive Train

1

72252C91

CLEANER ASSY, air

1шт.

72253C1

ELEMENT

air cleaner

1шт.

72254C1

WASHER, gasket

1шт.

72255C1

SCREW, thumb

1шт.

72256C1

CLAMP ASSY

1шт.

72257C1

BAFFLE ASSY

1шт.

72258C1

CUP ASSY

1шт.

72259C1

CAP, air stack

1шт.

72260C1

FILTER, precleaner, optional

1шт.

2

73862C1

HOSE, air inlet

1шт.

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, #32 hose

1шт.

995222R1

CLAMP

#36 hose

1шт.

3

73863C1

PIPE, air inlet

1шт.

73928C1

BOLT, air inlet pipe

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

73864C1

GASKET, air inlet

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE, air inlet breather, Use 5 in. from 50 ft. roll marked, 427685C1

1шт.

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

6

NSS

NOT SOLD SEPARAT

ALTERNATOR, Refer to electrical unit

1шт.

7

73865C1

SUPPORT, alternator, bracket

1шт.

73929C1

WASHER, alternator bracket

2шт.

73930C1

BOLT, alternator bracket

2шт.

8

73866C1

GASKET, exhaust

1шт.

9

73867C1

PIPE, exhaust, Serial Range: 107-133

1шт.

9

78156C1

PIPE, exhaust, lower, Serial Range: 134-168

1шт.

9

78157C1

PIPE, exhaust, upper, Serial Range: 134-168

1шт.

72249C1

CLAMP

muffler

1шт.

73931C1

BOLT, exhaust pipe

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

3шт.

10

73868C1

ANGLE, exhaust, bracket, Serial Range: 107-133

2шт.

10

76478C1

ANGLE, exhaust, bracket, Serial Range: 134-168

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

11

72250C1

MUFFLER, exhaust, Serial Range: 107-133

1шт.

11

76477C1

MUFFLER

exhaust, Serial Range: 134-168

1шт.

72249C1

CLAMP

muffler

2шт.

12

73869C1

TUBE, tail, pipe 36924" OD, 5" Length

1шт.

13

73870C1

HOSE

radiator, upper

1шт.

73871C1

ADAPTER, radiator hose

1шт.

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, hose #24

2шт.

14

73872C1

RADIATOR

1шт.

72265C1

CAP

radiator

1шт.

15

73873C1

BAR, oil cooler mounting RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

16

73874C1

COOLER

oil

1шт.

17

73875C1

BAR, oil cooler retainer

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

18

73876C1

SHROUD, fan

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

19

73877C1

SUPPORT, rear motor, mount

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

77022C1

BAR, retainer, Start Serial: 140

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

20

73878C1

HOSE, radiator, lower

1шт.

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, #24 hose

1шт.

27337R1

HOSE CLAMP,#28, 1.31/2.25 Type F Worm, W/liner

CLAMP, #28 hose

1шт.

21

73879C1

INSULATOR

radiator

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x.051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

27701R1

WASHER

.406 x 1.750 x .105

4шт.

22

73880C1

BAR, oil cooler mounting, LH

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

23

NLS

NO LONGER SERVICED

NIPPLE, 1/8 x 3 pipe

4шт.

24

105408

COUPLING,1/8" NPT

1/8 pipe

1шт.

25

103647

VALVE

drain

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE, water separator to injection pump, Use 18 in. from 50 ft. roll marked 180730C1

1шт.

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

27

105422

ELBOW UNION

ELBOW, 1/8-90 degree street

2шт.

28

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4-1/8 reducing pipe

2шт.

29

72054C1

FILTER

SEPARATOR, water

1шт.

30

73881C1

CLAMP, water separator, bracket

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

538122R1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm, W/liner

CLAMP, #80 hose

2шт.

31

NSS

NOT SOLD SEPARAT

HOSE, tank to water separator, Use 60 in. from 50 ft. roll marked 180730C1

1шт.

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

32

74761C1

CONNECTOR

2шт.

33

NSS

NOT SOLD SEPARAT

HOSE, engine drain, Use 36 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

34

73882C1

ELBOW

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

.924 x .116

1шт.

35

105416

TEE,1/8" NPT, Fem

1/8 pipe

1шт.

36

NSS

NOT SOLD SEPARAT

SENDER, oil pressure, Refer to electrical group

1шт.

37

72246C1

SWITCH

oil pressure shut-off

1шт.

38

73932C1

CONNECTOR, barb nipple, Serial Range: -119

1шт.

39

73883C1

CONNECTOR, remote filter, Serial Range: -119

1шт.

40

343909R1

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1.484 x 1.762 x .139, Serial Range: -119

1шт.

41

73884C1

BUSHING, remote filter adapter, Serial Range: -119

1шт.

42

NSS

NOT SOLD SEPARAT

HOSE ADAPTER TUBE TO FILTER, Use 12 in form 50 ft roll marked 180718C1

1шт.

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

43

73496C1

ELBOW, beaded

2шт.

44

76396C1

HEAD, filter

1шт.

73321C1

ELEMENT

filter, 25 micron

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

45

NSS

NOT SOLD SEPARAT

HOSE, adapter sleeve to filter, Use 22 in. form 50 ft roll marked 180718C1

1шт.

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

46

72266C1

END

1/4 rod

3шт.

47

72053C1

ROD, throttle, Serial Range: 107-119

1шт.

47

76788C1

ROD, throttle, Start Serial: 120

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

5шт.

48

73885C1

BALL, kill lever

1шт.

49

73886C1

ROD, kill lever

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

50

NSS

NOT SOLD SEPARAT

HOSE, Use 60 in. from 50 ft. roll marked 180730C1

1шт.

279025R91

HOSE CLAMP,#06, .44/.78 Type F Worm

2шт.

51

73887C1

SUPPORT, front motor, mount

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

8шт.

52

73933C91

ENGINE ASSY, Isuzu C-240 diesel

1шт.

53

73888C1

CLAMP, hose

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

1шт.

54

75198C1

GASKET, nylon, washer, Start Serial: 120

1шт.

55

76380C1

PLATE, remote oil filter adapter

1шт.

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3.75 I.D. x .125, Start Serial: 120

1шт.

56

76382C1

FITTING, remote oil filter adapter

1шт.

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-NF p/t lock type 5, Start Serial: 120

1шт.

57

75077C1

SUPPORT, extender, bracket, Start Serial: 120

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.
