Запчасти Case IH 4150 (12-45) - POWER, ENGINE AND MOUNTING DIESEL, LOADER, FORD ENGINE (04) - Drive Train

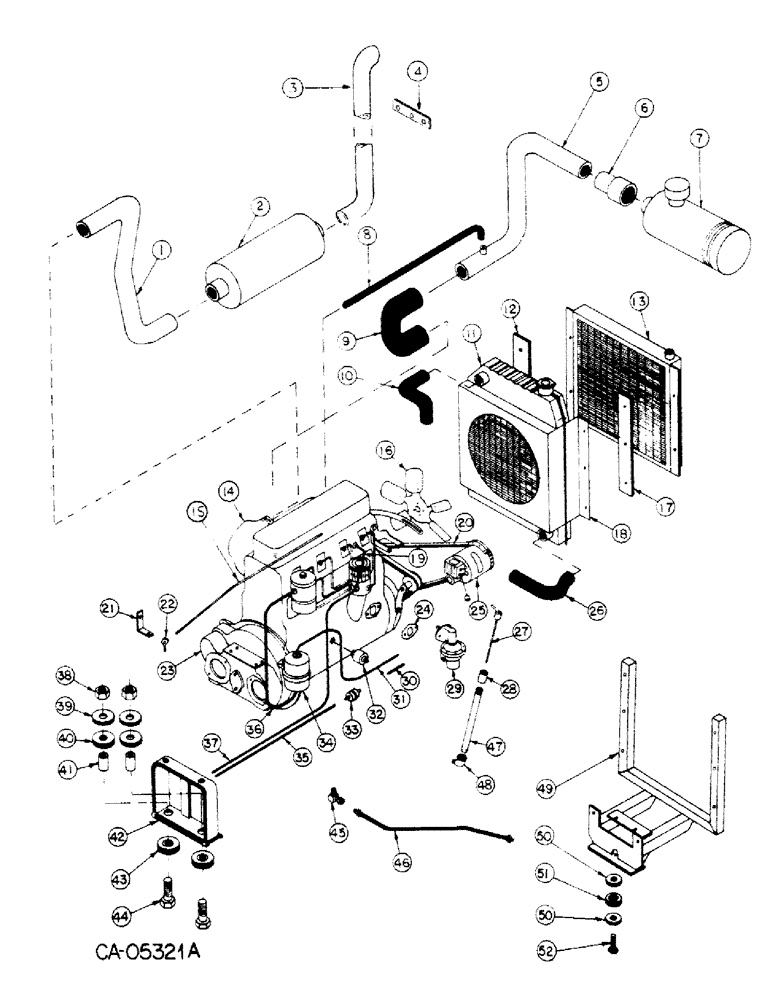

Схема запчастей Case IH 4150 - (12-45) - POWER, ENGINE AND MOUNTING DIESEL, LOADER, FORD ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

1

72035C1

PIPE, exhaust

1шт.

72249C1

CLAMP

muffler

1шт.

2

72250C1

MUFFLER, exhaust

1шт.

72249C1

CLAMP

muffler

1шт.

3

72809C1

TUBE, tail, pipe

1шт.

72249C1

CLAMP

muffler

1шт.

4

72808C1

BAR, tailpipe, bracket

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW, 3/8-16 x 3 znd hex-hd cap

1шт.

72249C1

CLAMP

tail pipe

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

5

72042C1

PIPE, air inlet

1шт.

6

72251C1

HOSE

reducer

1шт.

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, hose #32

1шт.

401345R1

HOSE CLAMP,#40, 2.06/3.00 Type F Worm, W/liner

CLAMP, hose #40

1шт.

7

72252C91

CLEANER ASSY, air, Consists of

1шт.

72253C1

ELEMENT

air cleaner

1шт.

72254C1

WASHER, gasket

1шт.

72255C1

SCREW, thumb

1шт.

72256C1

CLAMP ASSY

1шт.

72257C1

BAFFLE ASSY

1шт.

72258C1

CUP ASSY

1шт.

72259C1

CAP, AIR STACK

1шт.

72260C1

PRE-CLEANER, optional

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE, vent, Use 26-1/2 in. from sq. ft. roll marked, 117724C1

1шт.

9

72094C1

HOSE, connector

1шт.

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, hose #32

2шт.

10

72261C1

HOSE, upper radiator

1шт.

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, hose #24

2шт.

11

NSS

NOT SOLD SEPARAT

RADIATOR ASSY, See your local Ford ind. dealer

1шт.

72265C1

CAP

radiator

1шт.

103647

VALVE

COCK, drain

1шт.

12

72047C1

BAR, oil cooler, RH, mount

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 and pln

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

13

NSS

NOT SOLD SEPARAT

COOLER, oil, Refer to hydralic system

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

NSS

NOT SOLD SEPARAT

ENGINE, Ford 172 DH, See your local industrial Ford dealer for service parts

1шт.

15

72053C1

ROD, throttle

1шт.

72266C1

END

1/4 rod

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 znd hex.

4шт.

16

NSS

NOT SOLD SEPARAT

FAN, See your local Ford ind. dealer

1шт.

17

72048C1

BAR, oil cooler, LH, mount

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051 znd pln

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

18

72040C1

SHROUD, radiator

1шт.

24367R1

SCREW, 6-20 x 1/2 znd cr-rec-pan hd tap

12шт.

19

544178R1

HOSE, engine block return fuel

1шт.

72271C1

CLAMP, hose

2шт.

9409939

TEE,1/8"-27 NPTF Fem Run x 1/8"-27 NPTF Male Br

1/8-27 auto, int., ext

1шт.

72270C1

ELBOW

barb nipple

3шт.

20

72098C1

V-BELT, 0.54" W, Alternator 0.54" W

1шт.

21

72055C1

SUPPORT, throttle, bracket

1шт.

22

72020C1

BOLT, eye

1шт.

120376

NUT,5/16"-18, G5

2шт.

23

NSS

NOT SOLD SEPARAT

HOUSING, drive, Refer to drive axle

1шт.

24

NSS

NOT SOLD SEPARAT

GASKET, fuel pump, See your local Ford ind. dealer

1шт.

25

NSS

NOT SOLD SEPARAT

ALTERNATOR-GENERATOR, Refer to electrical unit

1шт.

26

72267C1

HOSE

lower radiator

1шт.

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, hose #24

1шт.

27337R1

HOSE CLAMP,#28, 1.31/2.25 Type F Worm, W/liner

CLAMP, hose #28

1шт.

27

73298C1

GAUGE, pump drive, dipstick

1шт.

28

111661

COUPLING,3/4" NPT

3/4 pipe

1шт.

29

NSS

NOT SOLD SEPARAT

PUMP, fuel, See your local Ford ind. dealer

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

72270C1

ELBOW

barb nipple

2шт.

30

72043C1

HOSE, fuel, Serial Range: filter-pump

1шт.

72271C1

CLAMP, hose

2шт.

31

72115C1

HOSE, fuel pump to water separator

1шт.

72271C1

CLAMP, hose

2шт.

32

72246C1

SWITCH

oil pressure shut-off

1шт.

33

72272C1

FILTER

fuel in line

1шт.

34

72054C1

FILTER

SEPARATOR, water

1шт.

72160C1

SUPPORT, water separator, bracket

1шт.

180048

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

SCREW, 1/4-20 x 2-1/2 znd hex-hd cap

1шт.

120392

WASHER,1/4", SAE

.312 x .734 x .051 znd pln

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

72270C1

ELBOW

barb nipple

2шт.

35

72101C1

HOSE, fuel, Serial Range: tank-filter

1шт.

72271C1

CLAMP, hose

2шт.

36

72112C1

HOSE, BULK

HOSE, water separator

1шт.

72271C1

CLAMP, hose

2шт.

37

72101C1

HOSE, fuel return

1шт.

72271C1

CLAMP, hose

2шт.

38

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 phc hex lock

2шт.

39

72157C1

WASHER, retainer

2шт.

40

72158C1

MOUNT, rubber

2шт.

41

72159C1

BUSHING

2шт.

42

72049C1

MOUNT, front engine

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.656 x 1.312 x .074 znd pln

2шт.

999567C91

SEALANT, loctite, 2CC tube

1шт.

43

72158C1

MOUNT, rubber

1шт.

44

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

2шт.

45

72273C1

ADAPTER, oil pan

1шт.

46

363716R91

HOSE ASSY, oil drain

1шт.

444703

PLUG,Hex Soc, 1/2"-14

1/2-14 auto. hex-soc-hd drain

1шт.

47

72051C1

PIPE, dipstick

1шт.

48

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 90 degree pipe street

1шт.

49

72156C1

SUPPORT, rear motor, mount

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-1/2 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074 znd reg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 phc hex lock

1шт.

72159C1

BUSHING

1шт.

50

72157C1

WASHER, retainer

2шт.

51

72158C1

MOUNT, rubber

1шт.

52

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2-13 x 4 znd hex-hd cap

1шт.

Выбрано товаров: 119
