Запчасти Case IH 4150 (12-37) - POWER, OIL FILTER AND FUEL FILTER, ISUZU ENGINE (04) - Drive Train

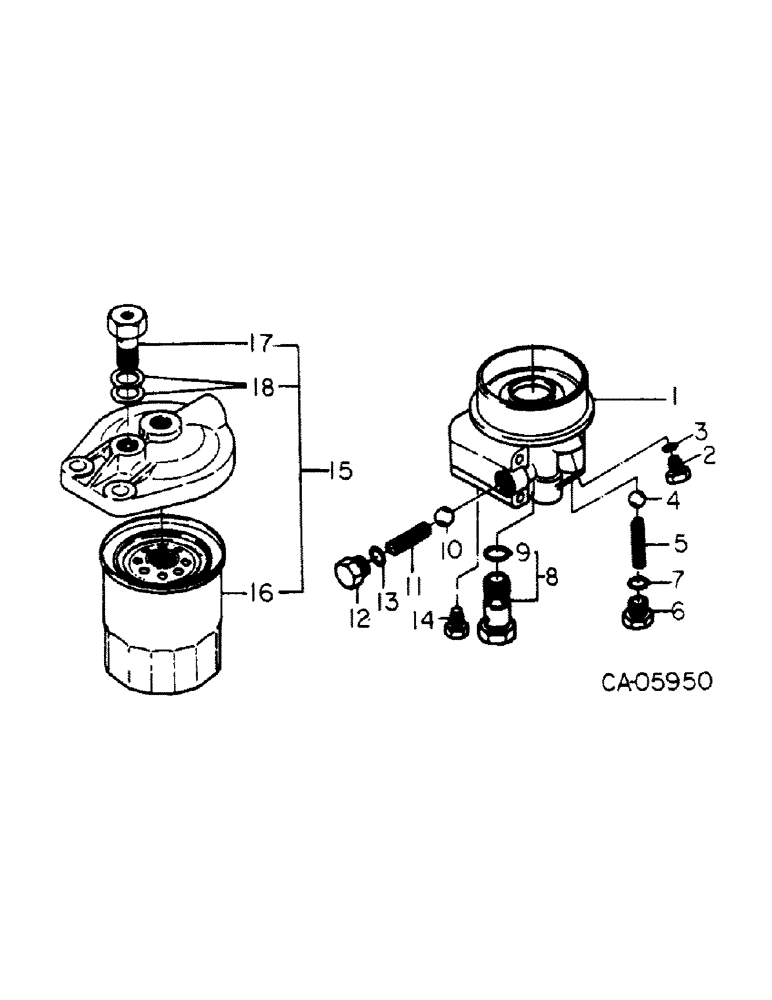

Схема запчастей Case IH 4150 - (12-37) - POWER, OIL FILTER AND FUEL FILTER, ISUZU ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

1

74623C91

BASE ASSY, oil filter

1шт.

2

74634C1

PLUG, oil filter drain

1шт.

3

74650C1

SEAL, drain plug o-ring

1шт.

4

74651C1

BALL, over-flow valve

1шт.

5

74652C1

SPRING, over-flow valve

1шт.

6

74653C1

CAP, valve spring

1шт.

7

74654C1

SEAL, over-flow valve cap o-ring

1шт.

8

74655C1

VALVE ASSY, relief

1шт.

9

74656C1

SEAL, relief valve o-ring

1шт.

10

74657C1

BALL, cooler relief valve

1шт.

11

74658C1

SPRING, cooler relief valve

1шт.

12

74659C1

CAP, cooler relief valve

1шт.

13

74660C1

SEAL, cooler relief valve o-ring

1шт.

14

74634C1

PLUG, filter base

1шт.

15

74661C91

FILTER ASSY, fuel

1шт.

16

74662C1

FILTER

fuel

1шт.

17

74663C1

VALVE ASSY, over flow

1шт.

18

74553C1

GASKET

plug

2шт.

Выбрано товаров: 18
