Запчасти Case IH 4150 (12-31) - POWER, FUEL INJECTOR, ISUZU ENGINE (04) - Drive Train

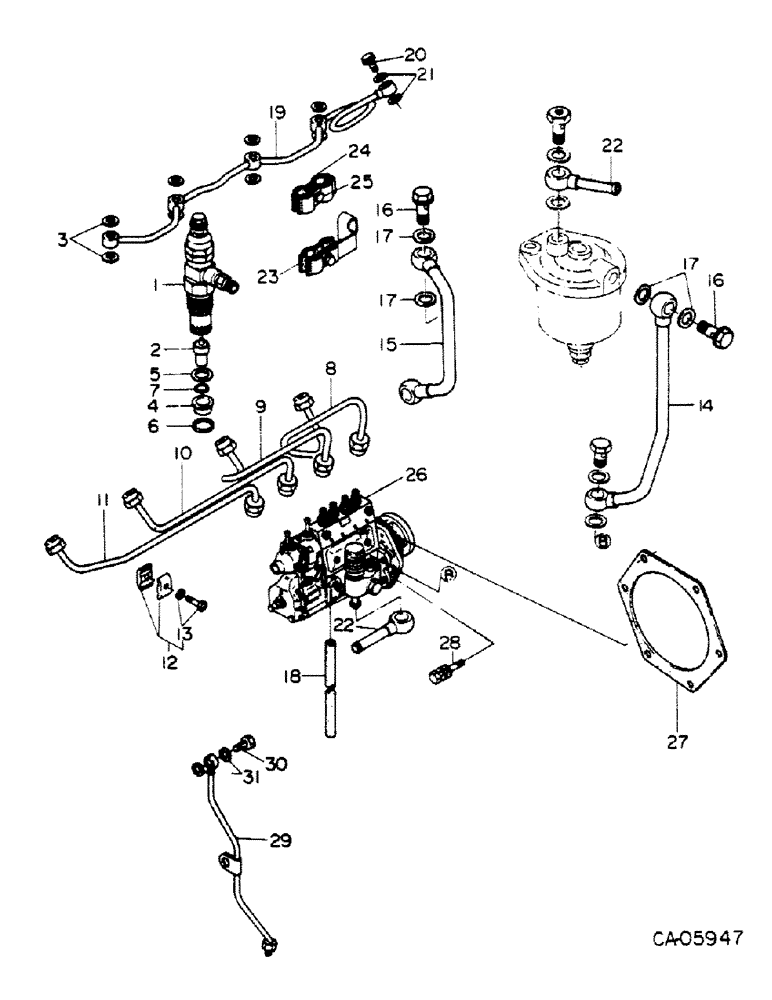

Схема запчастей Case IH 4150 - (12-31) - POWER, FUEL INJECTOR, ISUZU ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

1

73087C1

INJECTOR ASSY, fuel

4шт.

2

73082C1

NOZZLE INJECTION

NOZZLE

4шт.

3

73975C1

WASHER

sealing

8шт.

4

74571C1

ADAPTER

nozzle heat

4шт.

5

74572C1

WASHER, injector nozzle

4шт.

6

74573C1

WASHER

heat shield adapter

4шт.

7

74574C1

WASHER

corrugated

4шт.

8

74575C1

TUBE ASSY, fuel injector no. 1

1шт.

9

74576C1

TUBE ASSY, fuel injector no. 2

1шт.

10

74577C1

TUBE ASSY, fuel injector no. 3

1шт.

11

74578C1

TUBE ASSY, fuel injector no. 4

1шт.

12

74579C1

CLAMP ASSY, injector tubing

4шт.

13

74580C1

WASHER, tubing clamp lock

4шт.

74581C1

BOLT, tubing clamp

4шт.

14

74582C1

TUBE ASSY, fuel filter feed

1шт.

15

74583C1

TUBE ASSY, filter to fuel pump

1шт.

16

74584C1

SCREW

fuel filter union

2шт.

17

74553C1

GASKET

WASHER, sealing

4шт.

18

74585C1

TUBING, vinyl injector pump leak

1шт.

19

74586C1

TUBE ASSY, injector nozzle leak off

1шт.

20

74587C1

SCREW, leak off tubing union

1шт.

21

73975C1

WASHER

sealing

2шт.

22

74588C1

TUBE ASSY, fuel return

2шт.

23

74589C1

CLIP, fuel tubing

1шт.

24

74590C1

CLIP, fuel tubing

1шт.

25

74591C1

BOLT, fuel tubing clip

1шт.

26

74592C1

PUMP ASSY, fuel injector

1шт.

27

74593C1

GASKET, fuel injector pump

1шт.

28

74594C1

BOLT, fuel pump mounting

2шт.

28

74529C1

BOLT, fuel pump mounting

4шт.

74566C1

WASHER, fuel pump mtg. bolt

2шт.

29

74595C1

TUBE ASSY, rocker oil feed

1шт.

30

74596C1

SCREW, rocker oil feed union

1шт.

31

74597C1

WASHER, sealing

2шт.

79638C1

PUMP, priming

1шт.

79639C1

PUMP, feed

1шт.

Выбрано товаров: 36
