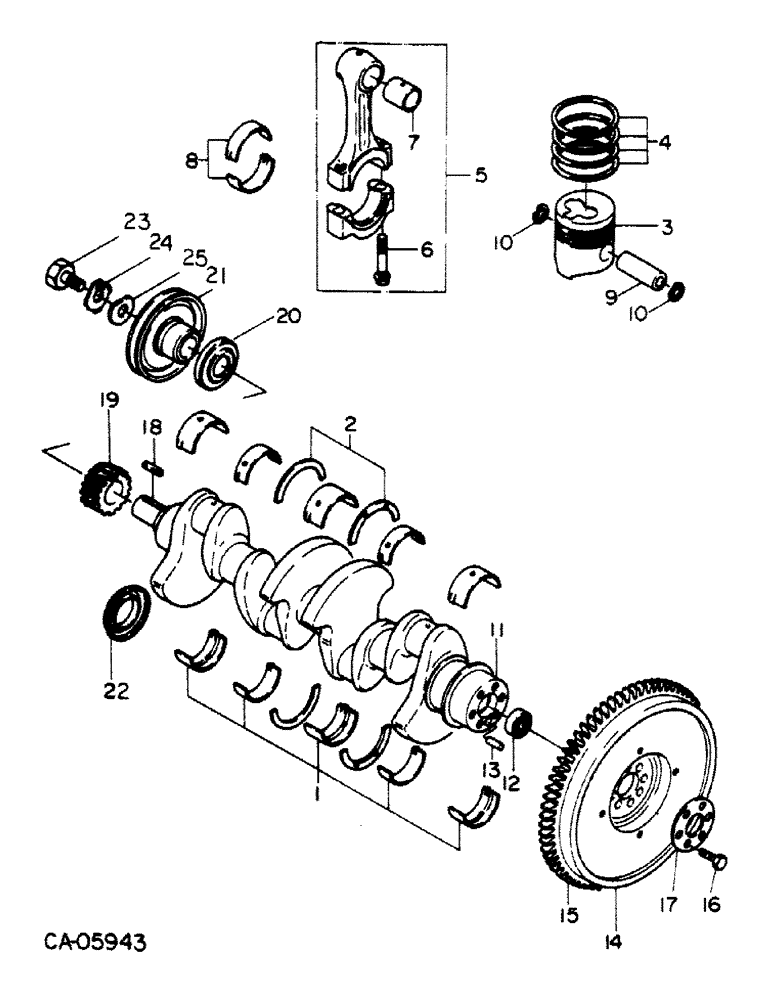

Запчасти Case IH 4150 (12-27) - POWER, CRANKSHAFT, ISUZU ENGINE (04) - Drive Train

1

72945C1

SET, crankshaft bearing, std

1шт.

1

72946C1

SET, crankshaft bearing, 50 U/S

1шт.

1

72947C1

SET, crankshaft bearing, 1.00 U/S

1шт.

2

72948C1

BEARING, thrust

2шт.

3

72949C1

PISTON

4шт.

4

72950C1

SET, piston ring

1шт.

5

72951C91

ROD ASSY, connectiong

4шт.

6

72952C1

BOLT, connecting rod

8шт.

7

72953C1

BUSHING, connecting rod

4шт.

8

72954C1

SET

connecting rod bearing

4шт.

9

72955C1

PIN, piston

4шт.

10

72956C1

RING, snap

8шт.

11

72957C91

CRANKSHAFT W/PIN ASSY

1шт.

13

72959C1

PIN, crankshaft, Furnished as part of 72957C91

1шт.

14

72960C91

FLYWHEEL W/RING GEAR

1шт.

15

72961C1

GEAR, ring

1шт.

16

72962C1

BOLT, flywheel

6шт.

17

72963C1

WASHER, flywheel

1шт.

18

72964C1

KEY

1шт.

19

72965C1

GEAR, crankshaft

1шт.

20

72966C1

SLINGER, crankshaft oil

1шт.

21

77859C1

PULLEY, crankshaft, Replaces 72967C1

1шт.

22

72968C1

SLINGER, dust seal

1шт.

23

72969C1

BOLT, crankshaft pulley

1шт.

24

72970C1

WASHER, tab

1шт.

25

72971C1

WASHER, crankshaft pulley

1шт.
