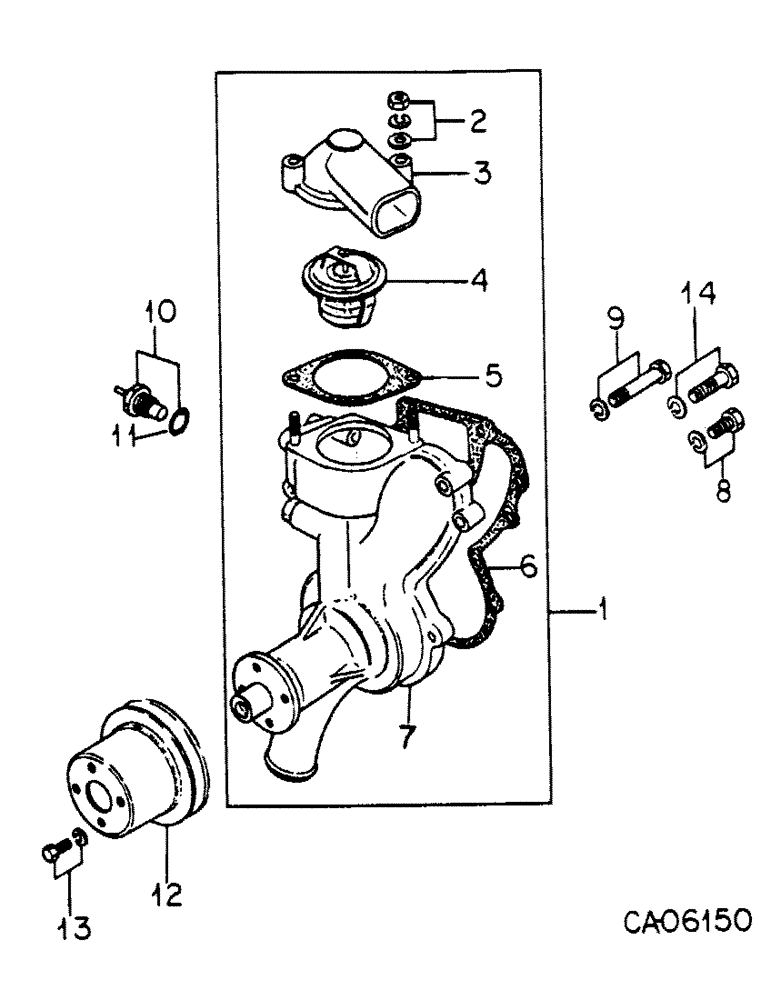

Запчасти Case IH 4150 (12-19) - POWER, WATER PUMP, MAZDA ENGINE (04) - Drive Train

1

76266C91

PUMP ASSY, water, Includes ref. nos 2 thru 7

1шт.

2

76083C1

NUT, outlet

2шт.

75849C1

WASHER, lock

2шт.

76267C1

WASHER, plain

2шт.

3

76268C1

OUTLET, water

1шт.

4

76269C1

THERMOSTAT

1шт.

5

76270C1

GASKET, outlet

1шт.

6

76271C1

GASKET, pump

1шт.

7

76272C1

BODY, water pump

1шт.

8

76273C1

BOLT, water pump

2шт.

75849C1

WASHER, lock

2шт.

9

76274C1

BOLT, water pump

2шт.

75849C1

WASHER, lock

2шт.

10

76275C91

GAUGE, water temp sending, Includes ref. no. 11

1шт.

11

76276C1

O-RING, temp sending gauge

1шт.

12

76277C1

PULLEY, water pump

1шт.

13

76278C1

BOLT W/WASHER, pulley

4шт.

14

76085C1

BOLT, water pump

1шт.

75849C1

WASHER, lock

1шт.
