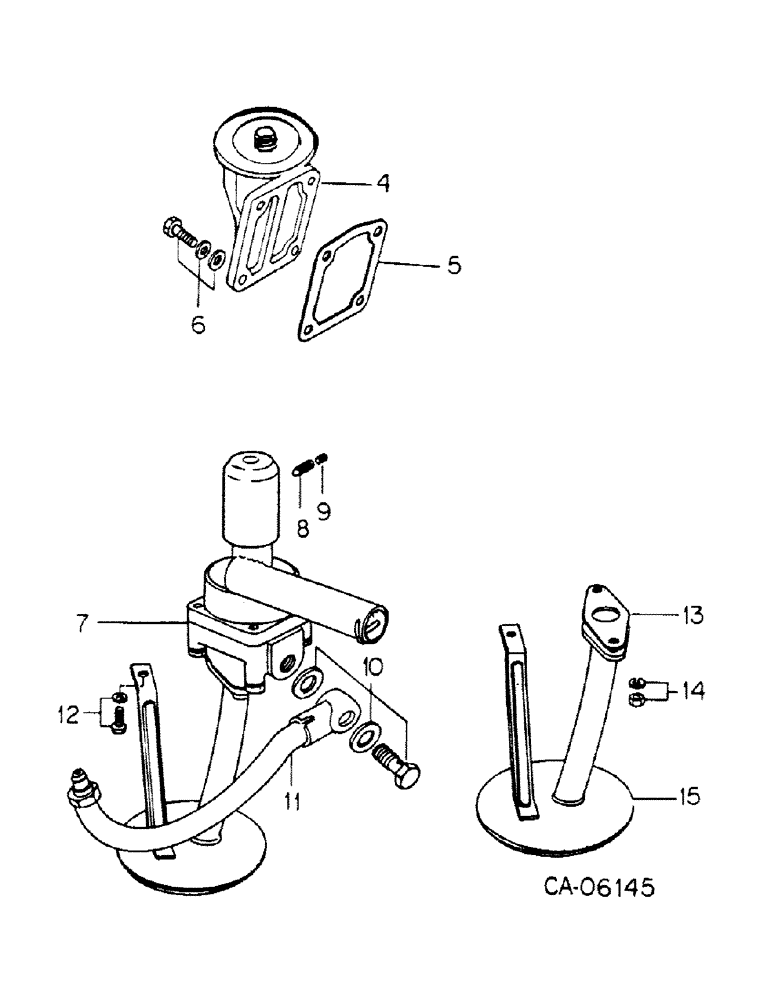

Запчасти Case IH 4150 (12-18) - POWER, OIL PUMP AND FILTER BASE, MAZDA ENGINE (04) - Drive Train

4

76252C1

HEAD, oil filter

1шт.

5

76253C1

GASKET, filter head

1шт.

6

76254C1

BOLT, filter head

4шт.

75849C1

WASHER, lock

4шт.

75896C1

WASHER, plain

4шт.

7

76255C1

PUMP ASSY, oil

1шт.

8

76256C1

SCREW, oil pump

1шт.

9

76257C1

SCREW, oil pump set

1шт.

10

76258C1

BOLT, connector

1шт.

76173C1

GASKET

2шт.

11

76260C1

PIPE, oil pump

1шт.

12

76261C1

BOLT, strainer

1шт.

75849C1

WASHER, lock

1шт.

13

76262C1

GASKET, strainer

1шт.

14

76099C1

NUT, oil strainer

2шт.

76264C1

WASHER, lock

2шт.

15

76265C1

STRAINER, oil

1шт.
