Запчасти Case IH 4150 (12-11) - POWER, INTAKE AND EXHAUST MANIFOLD, MAZDA ENGINE (04) - Drive Train

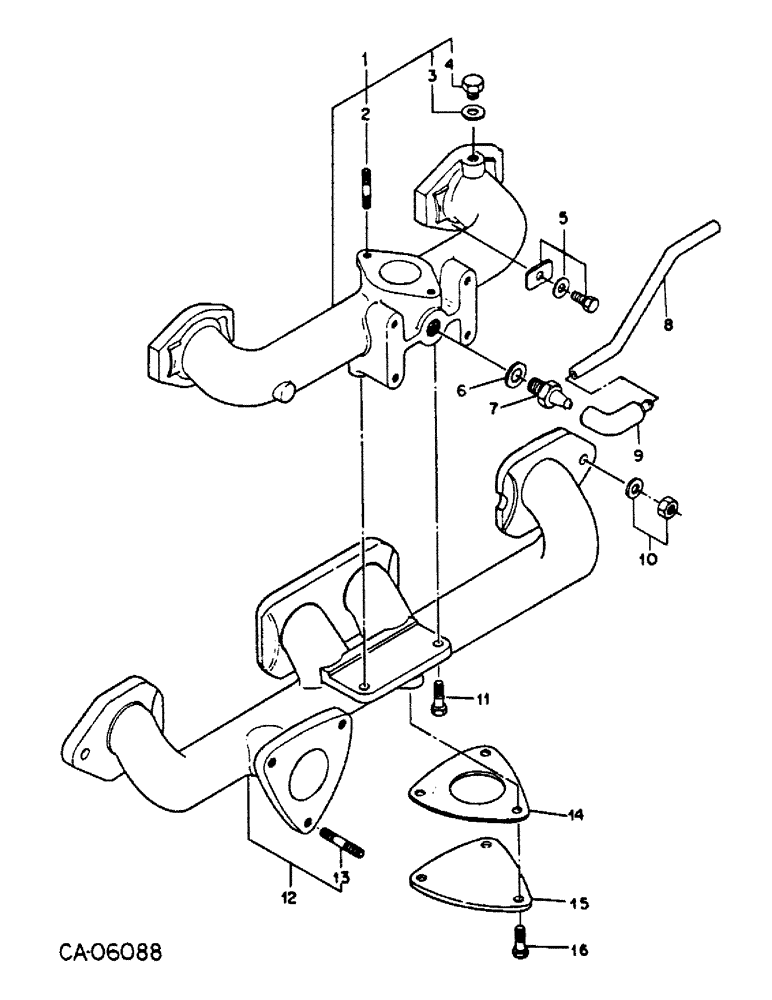

Схема запчастей Case IH 4150 - (12-11) - POWER, INTAKE AND EXHAUST MANIFOLD, MAZDA ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

1

76167C91

MANIFOLD ASSY, intake, Includes ref. nos. 2, 3 and 4

1шт.

2

76168C1

STUD, carburetor mounting

2шт.

3

76169C1

GASKET, plug

1шт.

4

76170C1

PLUG, intake manifold

1шт.

5

76171C1

PLATE, bimetal

4шт.

76172C1

BOLT, bimetal plate

4шт.

75885C1

WASHER, lock

4шт.

6

76173C1

GASKET, pcv valve

1шт.

7

76174C1

VALVE, pcv

1шт.

8

76175C1

PIPE, ventilation

1шт.

9

76176C1

ADAPTER, Serial Range: valve-pipe

1шт.

10

76177C1

NUT, manifold

2шт.

75885C1

WASHER, lock

2шт.

11

76178C1

BOLT, manifold connecting

2шт.

12

76179C91

MANIFOLD ASSY, exhaust, Includes ref no. 13

1шт.

13

76180C1

STUD, exhaust manifold

3шт.

14

76181C1

GASKET, exhaust outlet

1шт.

15

76182C1

COVER, exhaust outlet

1шт.

16

76183C1

BOLT, exhaust cover

3шт.

Выбрано товаров: 19
