Запчасти Case IH 4150 (07-07) - DRIVE TRAIN, HYDRAULIC PUMP DRIVE, LOADER, DIESEL, LOADER, GAS (04) - Drive Train

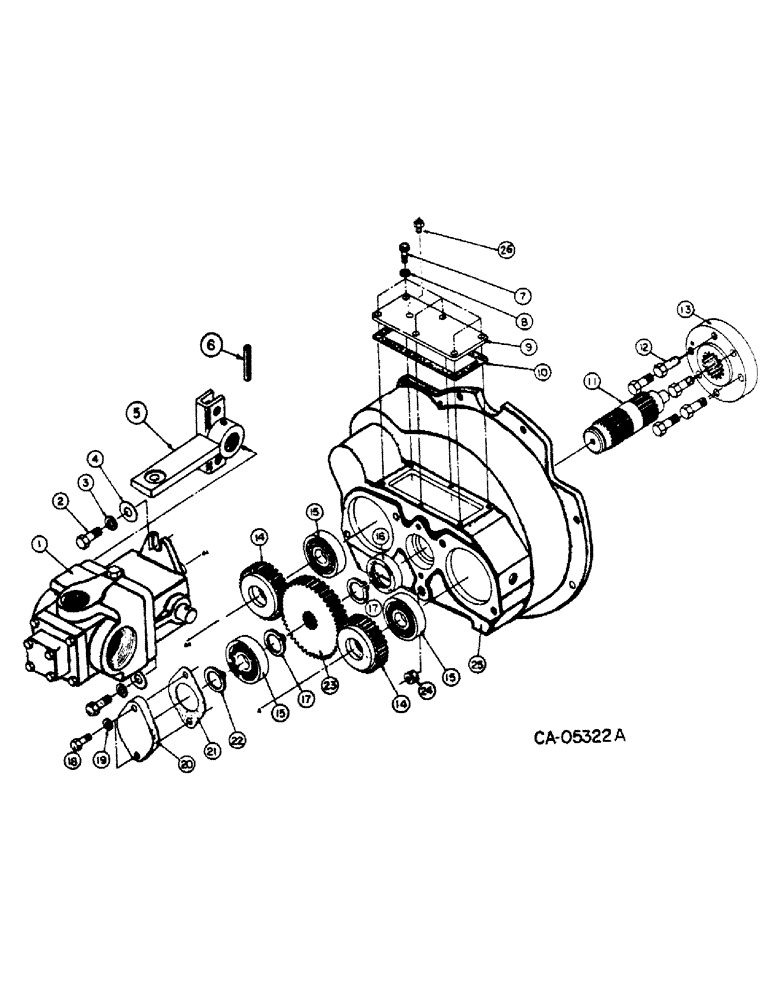

Схема запчастей Case IH 4150 - (07-07) - DRIVE TRAIN, HYDRAULIC PUMP DRIVE, LOADER, DIESEL, LOADER, GAS (04) - Drive Train

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

PUMP ASSY, hydrostatic, Refer to hydraulic pump assy. for list of components

1шт.

72264C1

GASKET

pump

2шт.

2

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

4шт.

3

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

120389

WASHER,7/16"

.500 x 1.250 x .064 znd

4шт.

5

NSS

NOT SOLD SEPARAT

LEVER, control, Refer to hydraulic pump power assist

1шт.

6

NSS

NOT SOLD SEPARAT

PIN, control lever, Refer to hydraulic pump power assist

1шт.

7

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

8

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

72059C1

BAR, pump drive, cover

1шт.

10

72060C1

GASKET

cover

1шт.

11

72061C1

SHAFT, input

1шт.

12

860308R1

BOLT,7/16" x 3", Gr 8

SCREW, 7/16-20 x 3 znd hex-hd cap type 8

6шт.

13

72062C1

HUB, drive

1шт.

14

72063C1

GEAR, pump

2шт.

15

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

3шт.

16

161919H2

SEAL

input

1шт.

17

202306R1

SNAP RING,#162, Ext

Ring, Snap, #162, Ext

2шт.

18

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

19

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

72064C1

COVER, bearing, cap

1шт.

21

72065C1

GASKET

bearing cap

1шт.

22

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

23

72066C1

GEAR, input

1шт.

24

72216C1

PLUG, drain

1шт.

25

72067C1

HOUSING, pump drive

1шт.

26

73301C1

BREATHER

1шт.

Выбрано товаров: 27
