Запчасти Case IH 4150 (07-03) - DRIVE TRAIN, HYD. & HYDROSTATIC CONTROLS, LOADER, GAS, LOADERS, DIESEL (04) - Drive Train

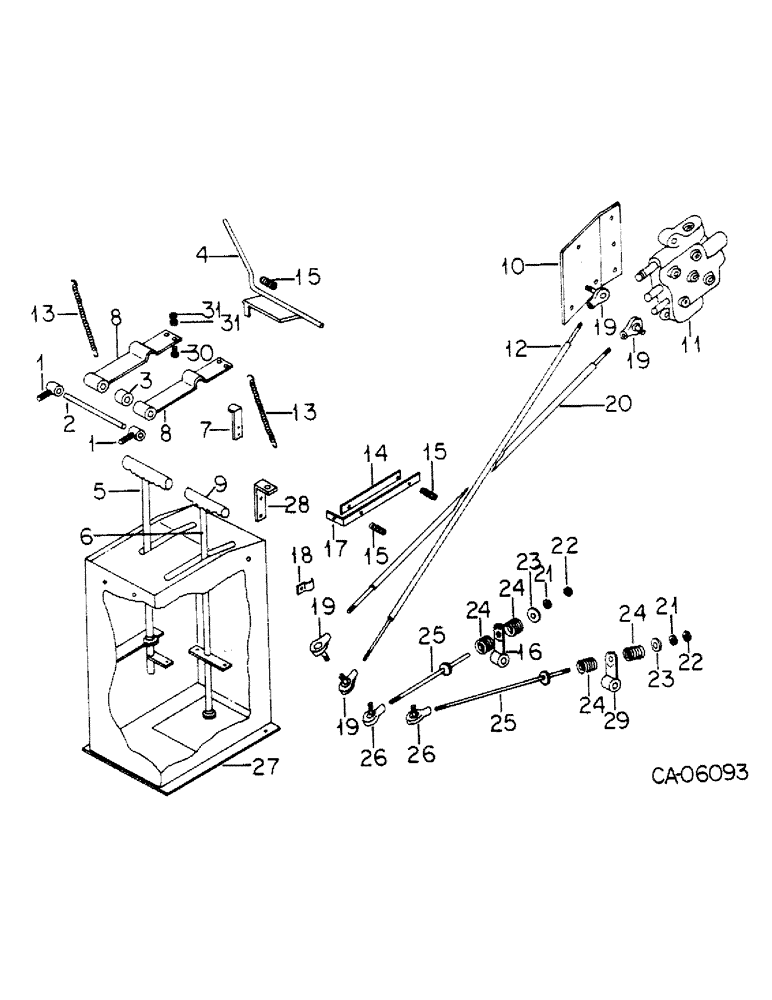

Схема запчастей Case IH 4150 - (07-03) - DRIVE TRAIN, HYD. & HYDROSTATIC CONTROLS, LOADER, GAS, LOADERS, DIESEL (04) - Drive Train

Артикул

Название

Примечание

Количество

1

76446C1

PIVOT, lock arm

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

76467C1

ROD, lock arm pivot

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

3

127530H1

SPACER

lock arm

1шт.

4

76468C1

LEVER, control lock

1шт.

5

76469C1

LEVER, hydraulic control, Furnished as part of 76474C91

1шт.

72017C1

CONDUIT, hyraulic lever, handle, Furnished as part of 76474C91

1шт.

6

72022C1

ROD, drive control, Furnished as part of 76474C91

1шт.

72017C1

CONDUIT, drive lever, handle, Furnished as part of 76474C91

1шт.

76911C1

FITTING, bevel, washer, Furnished as part of 76474C91

1шт.

7

72031C1

SUPPORT, choke, lever, gas only

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

8

76471C1

ARM, control lock

2шт.

9

72210C1

GRIP

handle

4шт.

10

73858C1

SUPPORT, control valve, mount

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120388

.438 x 1.000 x .064

3шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

11

NSS

NOT SOLD SEPARAT

VALVE ASSY, control, Refer to hyd & hydrostatic system

1шт.

12

73859C1

ROD, lift

1шт.

120368

NUT,5/16"-24, G5

2шт.

13

72211C1

SPRING

tension

2шт.

14

72023C1

BAR, friction, loose

1шт.

180044

SPRING

1/4 x 2 type 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

15

76472C1

SPRING

tension, short

3шт.

16

76473C1

LEVER, drive, RH

1шт.

17

72024C1

BAR, friction, mounted

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

18

72032C1

TAB, choke cable retainer, gas only

1шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

19

72212C1

END ASSY.

END, rod

4шт.

232-4615

LOCK NUT,5/16"-24, GC

5/16-NF phc p/t lock type 5

4шт.

20

73860C1

ROD, tilt

1шт.

120368

NUT,5/16"-24, G5

2шт.

21

120369

NUT,3/8"-24, G5

2шт.

22

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

23

72166C1

THRUST WASHER

thrust

2шт.

24138541C1

PACKAGE, spring, contains 4 springs

1шт.

25

73861C1

ROD, drive

2шт.

120369

NUT,3/8"-24, G5

2шт.

26

72213C1

END

3/8 rod

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

27

76474C91

HOUSING ASSY, control, console

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

28

72672C1

SUPPORT, neutral start switch

1шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT, 1/4 x 1 crg type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

29

76475C1

LEVER, drive, LH

1шт.

30

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

31

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

77925C1

ARM, neutral start switch activator

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

1шт.

94711655

NUT, 3/8 cad p/t lock type 5

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051, Diesel loader serial number 158 thru 168

1шт.

Выбрано товаров: 71
