Запчасти Case IH 4150 (06-01) - COOLING, ENGINE OIL COOLER - IZUZU ENGINE (04) - Drive Train

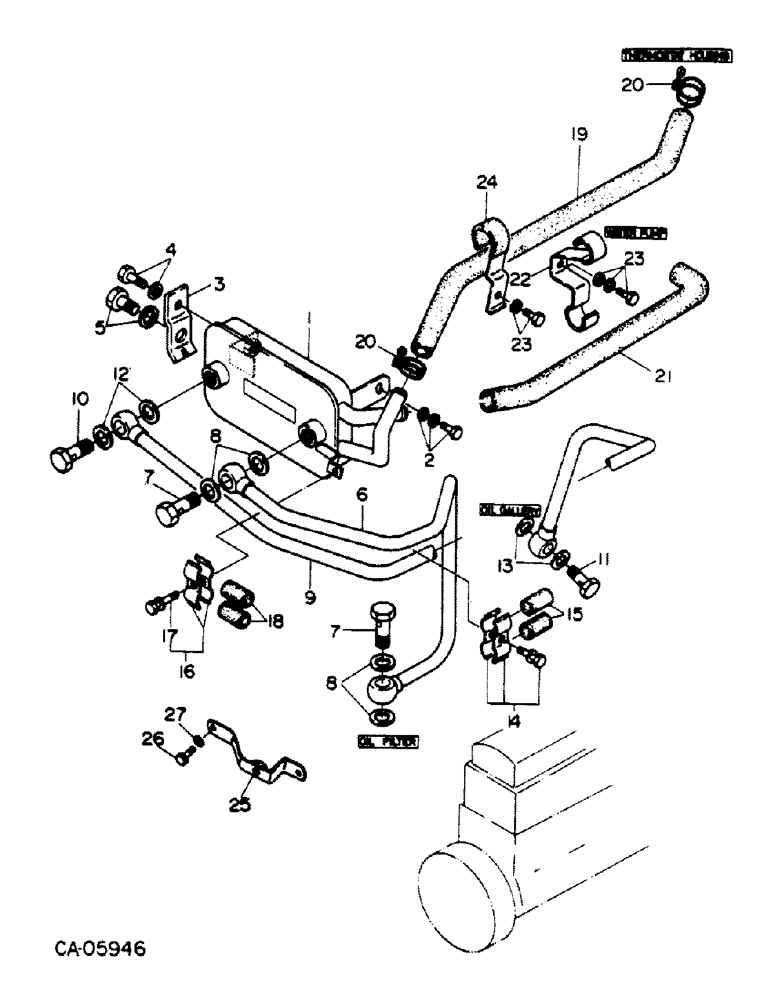

Схема запчастей Case IH 4150 - (06-01) - COOLING, ENGINE OIL COOLER - IZUZU ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

1

73089C1

COOLER ASSY, engine oil

1шт.

2

73092C1

BOLT, oil cooler mounting

1шт.

74558C1

WASHER, lock

1шт.

74559C1

WASHER, flat

1шт.

3

73102C1

SUPPORT, oil cooler side

1шт.

4

73103C1

BOLT, oil cooler side mounting

1шт.

74536C1

WASHER, lock

1шт.

5

73101C1

BOLT, support to cylinder block

1шт.

73095C1

WASHER, lock

1шт.

6

73109C1

TUBE ASSY, oil, Serial Range: cooler-filter

1шт.

7

73124C1

SCREW, oil cooler tube union

2шт.

8

73126C1

WASHER, sealing

4шт.

9

73130C1

TUBE ASSY, oil, Serial Range: cooler-gallery

1шт.

10

73124C1

SCREW, oil cooler tube union

1шт.

11

73136C1

SCREW, oil cooler tube union

1шт.

12

73126C1

WASHER, sealing

2шт.

13

74553C1

GASKET

WASHER, sealing

2шт.

14

73151C1

CLAMP ASSY, oil tubing

1шт.

15

73159C1

HOSE, rubber

2шт.

16

73190C91

CLAMP W/BOLT ASSY, oil tubing

1шт.

17

73197C1

BOLT, tubing clamp

1шт.

18

73159C1

HOSE, rubber

2шт.

19

74773C1

HOSE, thermostat housing to oil cooler

1шт.

20

74562C1

CLAMP ASSY, oil cooler hose

4шт.

21

74563C1

HOSE

water pump to oil cooler

1шт.

22

74564C1

SUPPORT, oil cooler

2шт.

23

74565C1

BOLT, oil cooler hose support

2шт.

74558C1

WASHER, lock

2шт.

74566C1

WASHER, flat

2шт.

24

74567C1

CLIP, oil cooler hose

1шт.

25

74568C1

SUPPORT, oil cooler

1шт.

26

74565C1

BOLT, oil cooler support

1шт.

27

74558C1

WASHER, lock

1шт.

Выбрано товаров: 33
