Запчасти Case IH 4140 (07-01) - HYDRAULIC & HYDROSTATIC CONTROLS, LOADER S/N 114 & BELOW - GAS, LOADER S/N 118 & BELOW - DIESEL (04) - Drive Train

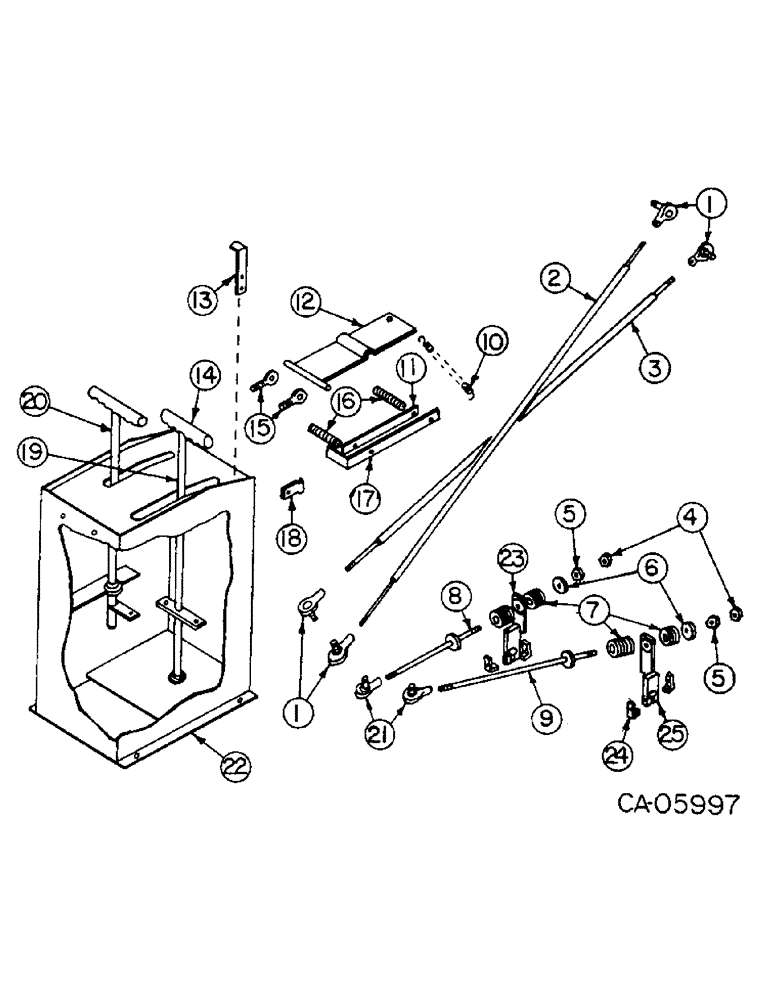

Схема запчастей Case IH 4140 - (07-01) - HYDRAULIC & HYDROSTATIC CONTROLS, LOADER S/N 114 & BELOW - GAS, LOADER S/N 118 & BELOW - DIESEL (04) - Drive Train

Артикул

Название

Примечание

Количество

1

72212C1

END ASSY.

END, rod

4шт.

274558

FAN SWITCH

5/16-NF phc p/t lock type 5

4шт.

2

75022C1

ROD, lift

1шт.

120368

NUT,5/16"-24, G5

2шт.

3

75023C1

ROD, tilt

1шт.

120368

NUT,5/16"-24, G5

2шт.

4

232-4615

LOCK NUT,5/16"-24, GC

5/16-NF phc p/t lock type 5

2шт.

5

120368

NUT,5/16"-24, G5

2шт.

6

72365C1

THRUST WASHER

thrust

2шт.

7

138541C1

SET

PACKAGE, spring, Contains 4 springs

1шт.

8

75024C1

ROD

drive, RH

1шт.

120368

NUT,5/16"-24, G5

1шт.

9

75025C1

ROD

drive, LH

1шт.

120368

NUT,5/16"-24, G5

1шт.

10

72211C1

SPRING

tension

1шт.

11

72023C1

BAR, friction, Loose

1шт.

180048

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

1/4 x 2-1/2 type 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

12

72021C1

PLATE, control lock

1шт.

13

72031C1

SUPPORT, choke, lever, Gas only

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

3шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

14

72210C1

GRIP

handle

4шт.

15

72020C1

BOLT, eye

2шт.

120376

NUT,5/16"-18, G5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

16

72188C1

SPRING, tension, Short

2шт.

17

72024C1

BAR, friction, mounted

1шт.

18

72032C1

TAB, choke cable retainer, Gas only

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

273924

SNAP RING

NUT, 1/4 cad p/t lock type 5

1шт.

19

73251C1

ROD, drive control, lever, Furnished as part of 75027C91

1шт.

20

75026C1

LEVER, hyd control, Furnished as part of 75027C91

1шт.

21

72554C1

END

rod, Replaces 72212C1

2шт.

274558

FAN SWITCH

5/16-NF phc p/t lock type 5

2шт.

22

75027C91

HOUSING ASSY, control, console

1шт.

23

75028C1

LEVER

drive, RH

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

24

73413C1

SUPPORT

RETAINER

4шт.

25

75029C1

LEVER

drive, LH

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

Выбрано товаров: 49
