Запчасти Case IH 4140 (10-14) - HYDROSTATIC MOTOR (07) - HYDRAULICS

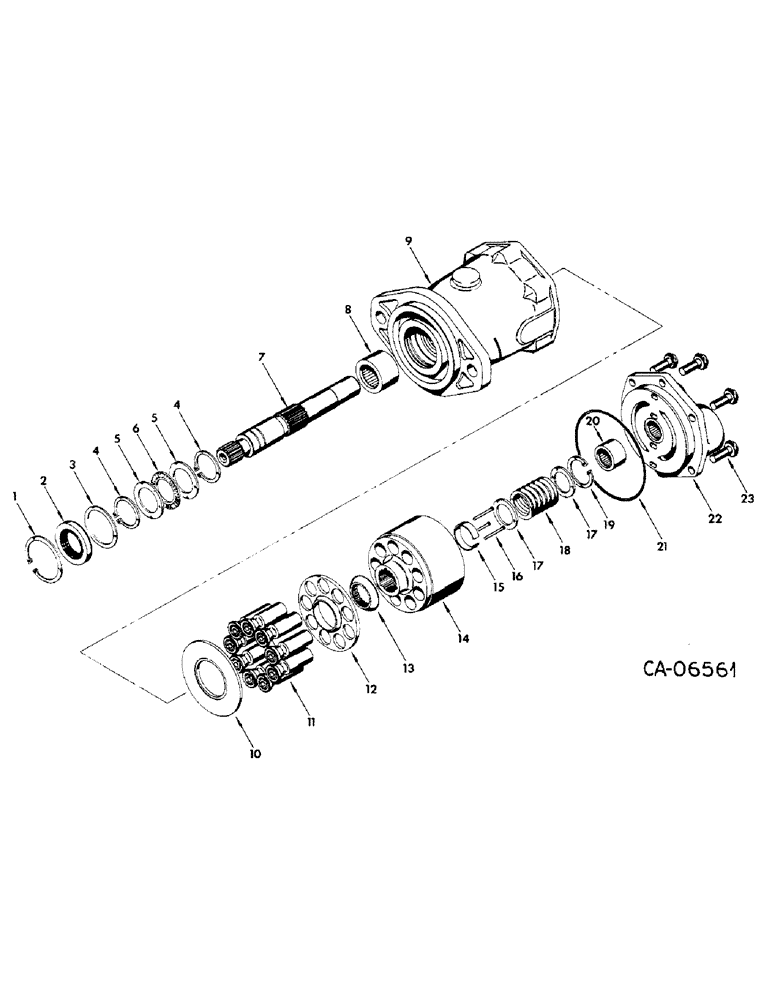

Схема запчастей Case IH 4140 - (10-14) - HYDROSTATIC MOTOR (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

75108C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydrostatic

1шт.

DR74973

REMAN-HYDROSTAT MOTO

Remanufactured HYDRAULIC MOTOR - for N.A. Only

1шт.

DC74973

CORE-HYDROSTAT MOTOR

Return No, HYDRAULIC MOTOR - for N.A. Only

1шт.

1

513010R1

SNAP RING,2", Int, #200

Ring, Snap, 2", Int, #200

1шт.

2

631883C1

SEAL

shaft lip

1шт.

3

138308C1

WASHER

lip seal

1шт.

4

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

5

631879C1

RACE

thrust bearing

2шт.

6

619150C91

BEARING

needle thrust

1шт.

7

138307C1

DRIVE SHAFT

SHAFT, motor

1шт.

8

NSS

NOT SOLD SEPARAT

order housing w/bearing 138306C1

1шт.

9

138306C1

HOUSING

W/BEARING, motor

1шт.

10

138309C1

WASHER, THRUST

PLATE, thrust

1шт.

11

NSS

NOT SOLD SEPARAT

order cyl. block kit 138310C1

1шт.

Part of cylinder block kit P/N 138310C1

1шт.

12

NSS

NOT SOLD SEPARAT

order cyl. block kit 138310C1

1шт.

Part of cylinder block kit P/N 138310C1

1шт.

13

NSS

NOT SOLD SEPARAT

order cyl. block kit 138310C1

1шт.

Part of cylinder block kit P/N 138310C1

1шт.

14

NSS

NOT SOLD SEPARAT

order cyl. block kit 138310C1

1шт.

Part of cylinder block kit P/N 138310C1

1шт.

15

NSS

NOT SOLD SEPARAT

order cyl. block kit 138310C1

1шт.

Part of cylinder block kit P/N 138310C1

1шт.

16

NSS

NOT SOLD SEPARAT

order cyl. block kit 138310C1

1шт.

Part of cylinder block kit P/N 138310C1

1шт.

17

NSS

NOT SOLD SEPARAT

order cyl. block kit 138310C1

1шт.

Part of cylinder block kit P/N 138310C1

1шт.

18

NSS

NOT SOLD SEPARAT

order cyl. block kit 138310C1

1шт.

Part of cylinder block kit P/N 138310C1

1шт.

19

NSS

NOT SOLD SEPARAT

order cyl. block kit 138310C1

1шт.

Part of cylinder block kit P/N 138310C1

1шт.

20

NSS

NOT SOLD SEPARAT

order back plate w/bearing 138311C1

1шт.

21

343700R1

O-RING,-155, 70 Duro, 3.987" ID x .103" Thk

4 x 4-3/16 x 3/32

1шт.

22

138311C1

PLATE

W/BEARING, back

1шт.

23

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

6шт.

138310C1

KIT

cylinder block, Includes ref nos. 11 thru 19

1шт.

Выбрано товаров: 36
