Запчасти Case IH 4140 (10-12) - HYDROSTATIC PUMP (07) - HYDRAULICS

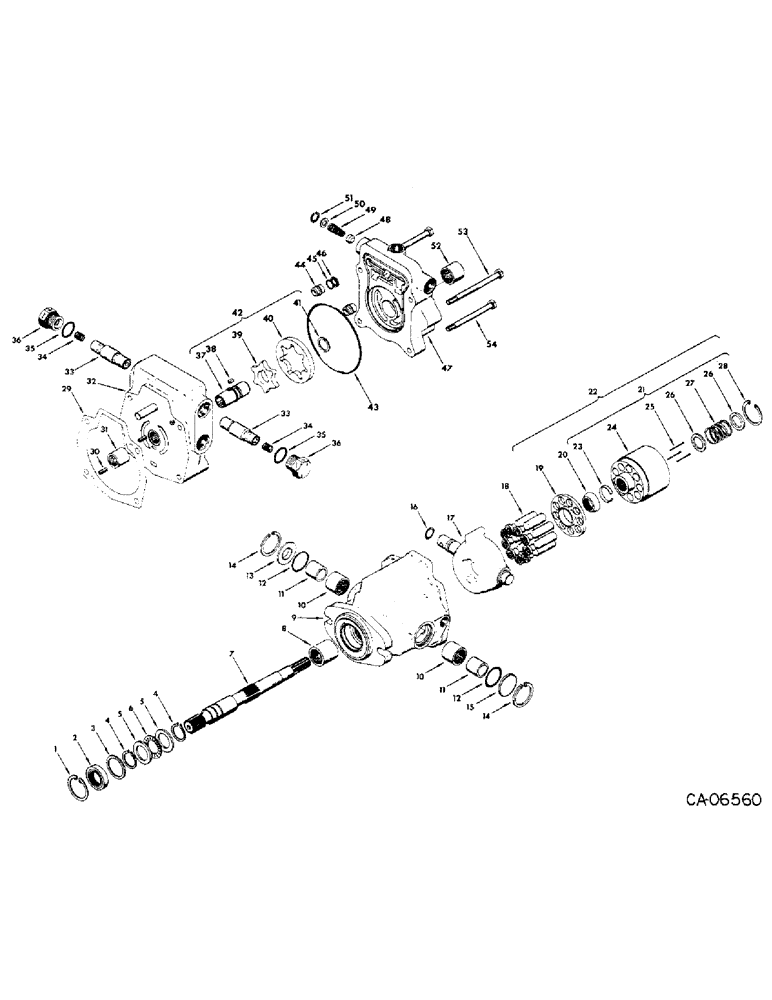

Схема запчастей Case IH 4140 - (10-12) - HYDROSTATIC PUMP (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

224522C91

PUMP

ASSY, hydrostatic, Replaces 75078C91

1шт.

1

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

2

138317C1

SEAL

shaft lip

1шт.

3

138316C1

WASHER

lip seal

1шт.

4

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

5

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

RACE, thrust bearing

2шт.

6

368372R91

THRUST BEARING

needle thrust

1шт.

7

138315C1

SHAFT, pump

1шт.

8

NSS

NOT SOLD SEPARAT

order housing w/bearing 138314C91

1шт.

9

138314C91

HOUSING

W/BEARING, pump

1шт.

10

550839R91

BEARING, NEEDLE

BEARING ASSY NEEDLE

2шт.

11

138319C1

RACE

bearing inner

2шт.

12

382418R1

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

1-5/16 x 1-1/2 x 3/32

2шт.

13

138321C1

SLEEVE

WASHER, trunnion, sleeve

1шт.

14

160094R1

SNAP RING,1.50", Int, #150

RING, SNAP, 1.50", Int, #150

2шт.

15

138320C1

COVER

PIN, trunnion bearing, cover

1шт.

16

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 x 3/4 x 1/16

1шт.

17

224403C1

PLATE

swash, housing, Replaces 138318C1

1шт.

18

142601C1

PISTON

KIT, piston

1шт.

19

NSS

NOT SOLD SEPARAT

order cylinder block kit 76511C1

1шт.

20

NSS

NOT SOLD SEPARAT

order cylinder block kit 76511C1

1шт.

21

NSS

NOT SOLD SEPARAT

order cylinder block kit 76511C1

1шт.

22

76511C1

KIT

cylinder block, Includes ref. nos. 19 thru 28

1шт.

23

NSS

NOT SOLD SEPARAT

order cylinder block kit 76511C1

1шт.

24

NSS

NOT SOLD SEPARAT

order cylinder block kit 76511C1

1шт.

25

NSS

NOT SOLD SEPARAT

order cylinder block kit 76511C1

1шт.

26

NSS

NOT SOLD SEPARAT

order cylinder block kit 76511C1

1шт.

27

NSS

NOT SOLD SEPARAT

order cylinder block kit 76511C1

1шт.

28

NSS

NOT SOLD SEPARAT

order cylinder block kit 76511C1

1шт.

29

138322C1

GASKET

housing

1шт.

30

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Furnished as part of 138314C91 3/16" x 1/2", Slotted

2шт.

31

NSS

NOT SOLD SEPARAT

order back plate assy 138323C1

1шт.

32

138323C2

PLATE ASSY, back

1шт.

33

138324C1

KIT

VALVE ASSY, relief

2шт.

34

NSS

NOT SOLD SEPARAT

order plug assy 138352C1

1шт.

35

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube, Furnished as part of 138325C1

2шт.

36

138325C1

PLUG

ASSY, relief valve

2шт.

37

D73657

SPLINED COUPLING

order gerotor coupling assy 138328C1

1шт.

38

NSS

NOT SOLD SEPARAT

order gerotor coupling assy 138328C1

1шт.

39

N6035

ROTATOR

order gerotor coupling assy 138328C1

1шт.

40

N6035

ROTATOR

order gerotor coupling assy 138328C1

1шт.

41

D31918

RING

order gerotor coupling assy 138328C1

1шт.

42

138328C1

COUPLING

ASSY, gerotor

1шт.

43

22284R1

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

4-1/2 x 4-11/16 x 3/32

1шт.

44

138326C1

VALVE, CHECK

VALVE ASSY, check

2шт.

45

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 x 9/16 x 1/16

2шт.

46

138327C1

WASHER

back-up

2шт.

47

138329C91

ADAPTER

ASSY, pump

1шт.

48

NSS

NOT SOLD SEPARAT

order adapter assy 138329C91

1шт.

49

NSS

NOT SOLD SEPARAT

order adapter assy 138329C91

1шт.

50

NSS

NOT SOLD SEPARAT

order adapter assy 138329C91

1шт.

51

336919R1

RING,0.625", Int, #62

Snap, 0.625", Int, #62

1шт.

52

NSS

NOT SOLD SEPARAT

order adapter assy 138329C91

1шт.

53

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

2шт.

54

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

5/16 x 3-1/4 pln type 5

1шт.

138333C1

COVER

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

26970R1

O-RING,0.07" Thk x 3.239" ID, -42, Cl 6, 90 Duro

3-1/4 x 3-3/8 x 1/16

1шт.

138313C91

KIT

seal repair, Consists of

1шт.

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

2шт.

138327C1

WASHER

2шт.

138322C1

GASKET

1шт.

138317C1

SEAL

1шт.

379181R1

O-RING,0.614" ID x 0.07" Width

1шт.

382418R1

O-RING,0.103" Thk x 1.299" ID, -125, Cl 5, 75 Duro

2шт.

22784R1

SCREW

O-RING

1шт.

454417R1

SNAP RING,#100, Ext

Ring, Snap, #100, Ext

2шт.

299470R1

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

336919R1

RING,0.625", Int, #62

Snap, 0.625", Int, #62

1шт.

160094R1

SNAP RING,1.50", Int, #150

RING, SNAP, 1.50", Int, #150

2шт.

Выбрано товаров: 71
