Запчасти Case IH 4140 (10-11) - HYDRAULIC PUMP (07) - HYDRAULICS

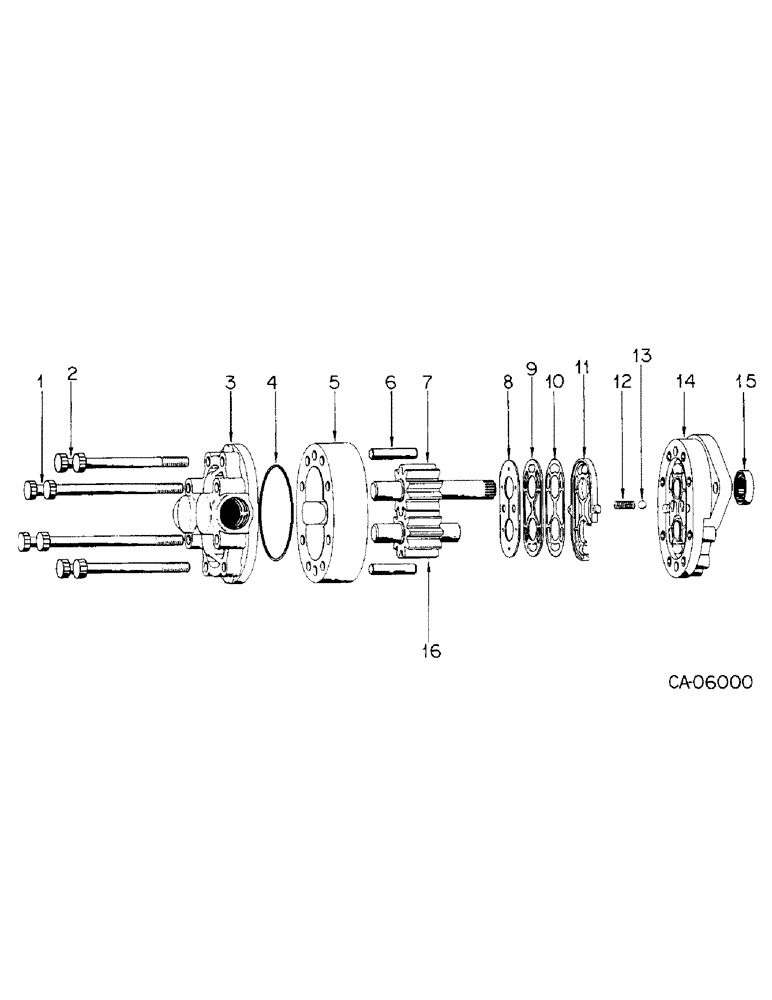

Схема запчастей Case IH 4140 - (10-11) - HYDRAULIC PUMP (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

75105C91

PUMP

ASSY, lift, Cessna

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT, tie, order pump assy

4шт.

2

NSS

NOT SOLD SEPARAT

BOLT, tie, order pump assy

4шт.

3

NSS

NOT SOLD SEPARAT

PLATE ASSY, back, order pump assy

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING, order seal kit

1шт.

Part of Seal Service kit P/N 827487C1

1шт.

5

NSS

NOT SOLD SEPARAT

BODY, order pump assy

1шт.

6

NSS

NOT SOLD SEPARAT

PIN, dowel, order pump assy

2шт.

7

NSS

NOT SOLD SEPARAT

GEAR ASSY, drive, order pump assy

1шт.

8

NSS

NOT SOLD SEPARAT

DIAPHRAGM, order seal kit

1шт.

Part of Seal Service kit P/N 827487C1

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET, order seal kit

1шт.

Part of Seal Service kit P/N 827487C1

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET, protector, order seal kit

1шт.

Part of Seal Service kit P/N 827487C1

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL, diaphragm, order seal kit

1шт.

Part of Seal Service kit P/N 827487C1

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING, order seal kit

1шт.

Part of Seal Service kit P/N 827487C1

1шт.

13

17007R1

BALL

steel

1шт.

Part of Seal Service kit P/N 827487C1

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE ASSY, front, order pump assy

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL, shaft, order seal kit

1шт.

Part of Seal Service kit P/N 827487C1

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR ASSY, idler, order pump assy

1шт.

827487C1

SEAL KIT

KIT, seal service, Consists of ref 4, 8, 9, 10, 11, 12, 13 & 15

1шт.
