Запчасти Case IH 4140 (10-09) - LIFT CYLINDER (07) - HYDRAULICS

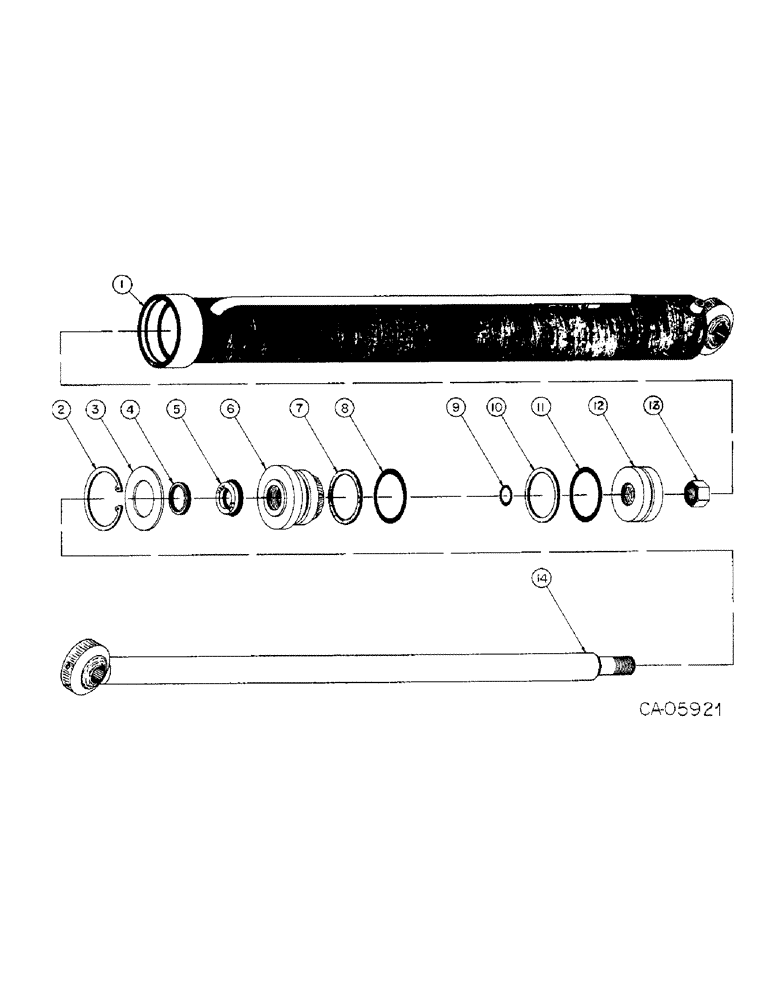

Схема запчастей Case IH 4140 - (10-09) - LIFT CYLINDER (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

75131C91

CYLINDER ASSY, lift

2шт.

1

75133C1

BODY, cylinder, tube 2.5" Diameter, 27" Length

2шт.

2

603625C1

SNAP RING,2.875", Int, #287

Ring, Snap, 2.875", Int, #287

2шт.

3

72935C1

THRUST WASHER

thrust

2шт.

4

72315C1

WIPER

rod

2шт.

5

72316C1

SEAL, rod

2шт.

6

75134C1

END

packing, head

2шт.

7

23502R1

RING,Rect, 2.25" ID x 2.5" OD, Cl 5

WASHER, 2.234 x 2.502 x .134 backup

2шт.

8

343923R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2.324 x 2.512 x .139

2шт.

9

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

2шт.

10

72574C1

SEAL

piston

2шт.

11

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2.050 x 2.256 x .103

2шт.

12

72387C1

PISTON

cylinder

2шт.

13

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-NF p/t lock type 5

2шт.

14

75135C1

ROD, cylinder

2шт.

75132C91

SEAL KIT

PACKAGE, o-ring and seal service

2шт.

Выбрано товаров: 16
