Запчасти Case IH 4140 (10-01) - HYDRAULIC AND HYDROSTATIC SYSTEM (07) - HYDRAULICS

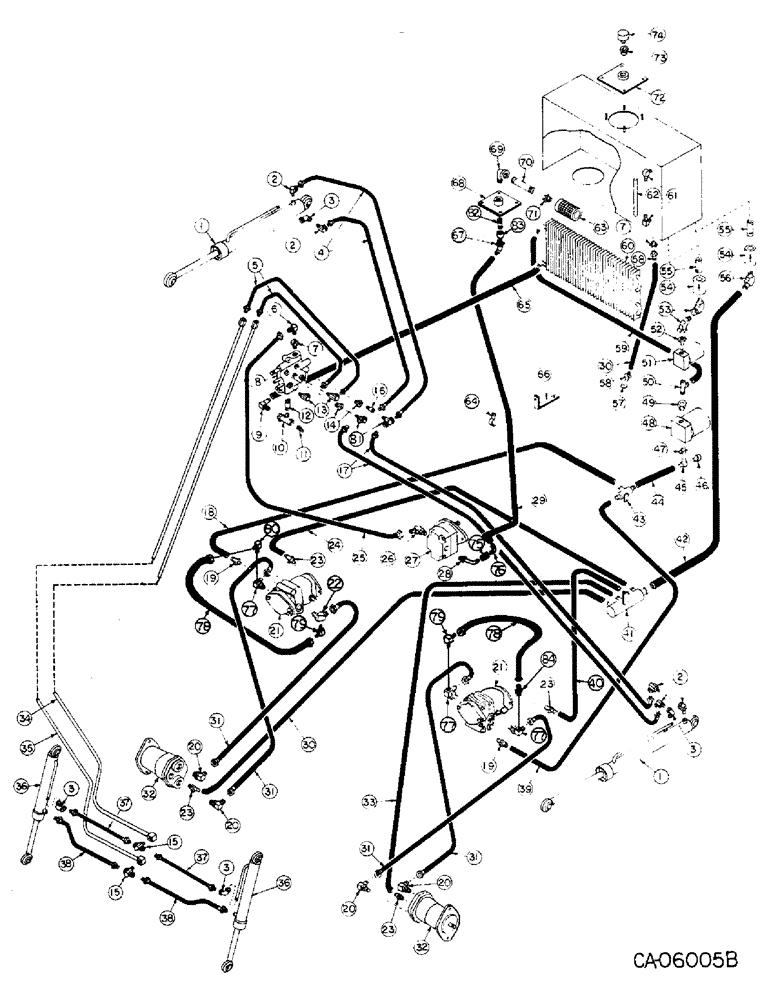

Схема запчастей Case IH 4140 - (10-01) - HYDRAULIC AND HYDROSTATIC SYSTEM (07) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

75131C91

CYLINDER ASSY, lift, Refer to lift cylinder assy for service parts

2шт.

2

293350R91

UNION

ELBOW

5шт.

3

120063

BOLT,Hex, M8 x 80, 8.8

3/8 90 deg street

2шт.

4

75100C1

HOSE ASSY, lift cylinder

2шт.

5

73922C1

HOSE ASSY, tilt cylinder

2шт.

6

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

reducer

1шт.

7

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

8

73342C91

VALVE ASSY, control, Refer to control valve assy for service parts

1шт.

9

74648C1

ELBOW

1шт.

10

125988

TEE,3/4" NPT, Fem

3/4 pipe

1шт.

11

444638

PLUG,Hex Hd, 3/4"-14, Brass

3/4 hex. pipe

1шт.

12

192470

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE, 3/4 close

1шт.

13

72298C1

ELBOW

2шт.

14

175778H1

ADAPTER

1/2 - 3/8 reducing pipe

2шт.

15

73916C1

TEE

2шт.

16

73917C1

ADAPTER

1шт.

17

75101C1

HOSE ASSY, lift cylinder

2шт.

18

NSS

NOT SOLD SEPARAT

HOSE, pump to manifold, Use 46 in. from 50 ft. roll marked 73200C1

1шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, #10 hose

2шт.

19

73489C1

CONNECTOR, RH charge pump

1шт.

19

77261C1

ELBOW, 45 deg. connector LH charge pump

1шт.

20

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

37 deg flared tube adj

4шт.

21

224522C91

PUMP

ASSY, hydrostatic, Replaces 75078C91, Refer to hydrostatic pump for service parts, Gas loader serial number 234 & above, Diesel loader serial number 201 & above

2шт.

21

77678C91

PACKAGE, hydrostatic lamp, Gas loader serial nimber 233 & below, Diesel serial number 200 & below

1шт.

72264C1

GASKET

2шт.

22

72221C1

ELBOW

Gas loader serial number 155 & below, Diesel serial number 192 & below

1шт.

22

76709C1

ELBOW, tapped, 45 deg., Gas loader serial number 156 & above, Diesel loader serial number 193 & above

1шт.

23

75102C1

FITTING

4шт.

24

NSS

NOT SOLD SEPARAT

HOSE, case drain, Use 41 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

25

75103C1

HOSE

ASSY., Serial Range: pump-valve

1шт.

26

75104C1

ELBOW

1шт.

27

75105C91

PUMP

ASSY., hydraulic, Refer to hydraulic pump assy for service parts

1шт.

73305C1

GASKET

1шт.

28

76775C1

TUBE,6.5" Length

beaded 90 deg

1шт.

29

NSS

NOT SOLD SEPARAT

HOSE, reservoir to pump, Use 42 in. from 50 ft. roll marked 490960R1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

30

NSS

NOT SOLD SEPARAT

HOSE, case drain, Use 25 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

4шт.

31

75107C1

HOSE

ASSY, Serial Range: pump-motor

4шт.

32

75108C91

MOTOR, HYDRAULIC

MOTOR ASSY, hydrostatic, Refer to hydrostatic motor for service parts

2шт.

32

DR74973

REMAN-HYDROSTAT MOTO

Remanufactured HYDRAULIC MOTOR - for N.A. Only

1шт.

32

DC74973

CORE-HYDROSTAT MOTOR

Return No, HYDRAULIC MOTOR - for N.A. Only

1шт.

72264C1

GASKET

2шт.

33

NSS

NOT SOLD SEPARAT

HOSE, case drain, Use 30 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

34

75109C1

TUBE ASSY, tilt down 66.5" Length

1шт.

35

75110C1

TUBE,0.5" OD, 69, 16.375" Length

ASSY, tilt up

1шт.

36

75136C91

CYLINDER

ASSY, tilt, Refer to tilt cylinder assy for service parts

2шт.

37

75111C1

HOSE ASSY, tilt cylinder

2шт.

38

130111H1

HOSE ASSY, tilt cylinder

2шт.

39

NSS

NOT SOLD SEPARAT

HOSE PUMP TO FILTER, Use 16 in. from 50 ft. roll marked 73200C1

1шт.

27861R1

HOSE CLAMP,#10, .56/1.06 Type F Worm, W/liner

CLAMP, #10 hose

2шт.

40

NSS

NOT SOLD SEPARAT

HOSE, hydro pump to manifold, Use 20 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

41

73915C1

MANIFOLD, case drain

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

42

NSS

NOT SOLD SEPARAT

HOSE, manifold to reservoir, Use 34 in. from 50 ft. roll marked 490960R1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

43

75113C1

MANIFOLD, charge line

1шт.

44

NSS

NOT SOLD SEPARAT

HOSE, manifold to filter, Use 24 in. from 50 ft. roll marked 490960R1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

45

75114C1

ELBOW

1шт.

46

72128C1

SWITCH

pressure

1шт.

47

144065

ADAPTER,1 1/4" NPT Male x 1" NPT Fem

1-1/4 to 1 reducing pipe

1шт.

48

72155C1

HEAD

filter

1шт.

69149C1

FILTER

ELEMENT, filter

1шт.

69615C1

OIL SEAL

RING, filter element, gasket

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

446363

WASHER,5/16"

.375 x .875 x .064

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

49

221-608

REDUCER,Hex, 1 1/4" x 3/4" NPT

ADAPTER, 1-1/4 - 3/4 reducing pipe

1шт.

50

75115C1

MANIFOLD, filter

1шт.

51

72562C91

HEAD, filter

1шт.

73321C1

ELEMENT

filter

1шт.

52

75116C1

NIPPLE

1шт.

53

75117C1

ELBOW

2шт.

54

72163C1

VALVE, check

2шт.

55

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2 pipe

2шт.

56

670517C2

SPARE PART

ELBOW

1шт.

57

119101

CAP,1/2" NPT

1/2 pipe

1шт.

58

74761C1

CONNECOTR

2шт.

59

NSS

NOT SOLD SEPARAT

HOSE, filter to oil cooler, Use 60 in. from 25 ft. roll marked 180720C1

1шт.

27702R1

HOSE CLAMP,#12, .69/1.25 Type F Worm, W/liner

CLAMP, #12 hose

2шт.

60

73874C1

COOLER

oil

1шт.

61

72221C1

ELBOW

2шт.

62

72010C1

HOSE, oil level indicator

1шт.

63

75119C1

FILTER

sump

1шт.

64

75120C1

CLAMP

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

65

NSS

NOT SOLD SEPARAT

HOSE, cooler to valve, Use 32 in. from 25 ft. roll marked 180720C1

1шт.

27702R1

HOSE CLAMP,#12, .69/1.25 Type F Worm, W/liner

CLAMP, #12 hose

2шт.

66

75121C1

SUPPORT, hose clamp, bracket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

67

670517C2

SPARE PART

ELBOW

1шт.

68

75123C1

COVER, bottom

1шт.

72164C1

GASKET

1шт.

120388

.438 x 1.000 x .064

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

69

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 90 deg street

1шт.

70

26108R1

HYD CONNECTOR

NIPPLE, 3/4 x 5-1/2 pipe

1шт.

71

117219

ADAPTER,1" NPT Male x 3/4" NPT Fem

1 - 3/4 reducing pipe

1шт.

72

73911C1

SUPPORT, top, cover

1шт.

72164C1

GASKET

1шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

73

NLS

NO LONGER SERVICED

ADAPTER, 1-1/4 - 3/8 reducing pipe

1шт.

74

72220C1

VALVE

pressure

1шт.

75

NSS

NOT SOLD SEPARAT

HOSE, connector, Use 3 in. from 50 ft. roll marked 490960R1

1шт.

27723R1

HOSE CLAMP,#16, .81/1.50 Type F Worm, W/liner

CLAMP, #16 hose

2шт.

76

76776C1

ELBOW

beaded 90 deg

1шт.

77

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

37 deg flared tube adj, Gas loader serial number 155 & below, Diesel loader serial number 192 & below

3шт.

77

76708C1

ELBOW, tapped, 90 deg, Gas loader serial number 156 & above, Diesel loader serial number 193 & above

3шт.

78

514461C1

HOSE

ASSY, pump to pump, Gas loader serial number 156 & above, Diesel loader serial number 193 & above

2шт.

79

76707C1

ELBOW, restricted, Gas loader serial number 156 & above, Diesel loader serial number 193 & above

2шт.

80

9402823

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

1/4 c-z hyd flared tube 45D, Gas loader serial number 156 & above, Diesel loader serial number 193 & above, Replaces 9402862 on RH pump

1шт.

81

77019C1

TEE, restricted, Replaces 73916C1

2шт.

82

26108R1

HYD CONNECTOR

NIPPLE, 3/4 x 5-1/2 pipe

1шт.

83

111661

COUPLING,3/4" NPT

3/4 pipe

1шт.

84

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

ADAPTER, 1/8-27 hyd 37 deg flared, Replaces 9402862 on LH pump

1шт.

138538C91

KIT, wide neutral band, Gas loader serial number 155 & below, Diesel loader serial number 192 & below, Consists of

1шт.

514461C1

HOSE

ASSY

2шт.

9402823

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

1шт.

76707C1

ELBOW

2шт.

76708C1

ELBOW

3шт.

76709C1

ELBOW

1шт.

9402706

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

ADAPTER

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
