Запчасти Case IH 4140 (08-06) - ELECTRICAL - DIESEL (06) - ELECTRICAL

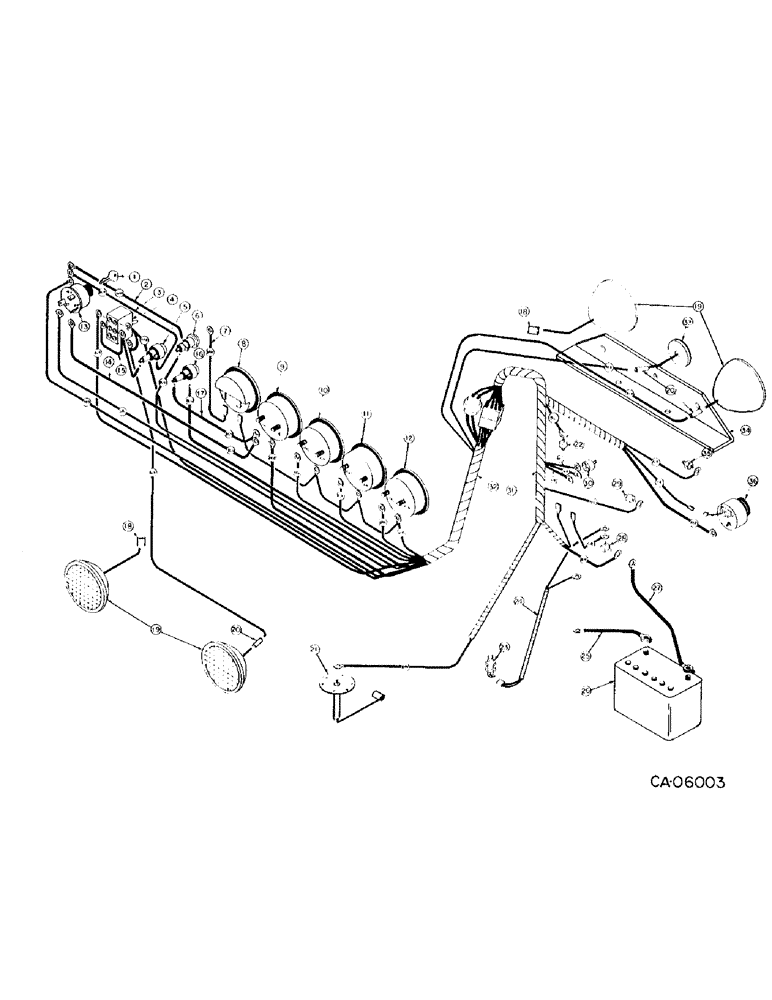

Схема запчастей Case IH 4140 - (08-06) - ELECTRICAL - DIESEL (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

1

72243C1

KEY

ignition

1шт.

2

72143C1

CABLE, jumper, ind, Serial Range: lt.-ign.

1шт.

3

72278C1

CABLE, jumper, 20 amp fuse to ignition switch

1шт.

4

647646C91

SWITCH, light

1шт.

5

72277C1

HOLDER, 20 amp fuse

1шт.

432644

FUSE,20 Amp, Type SFE

20 amp, SFE 20

1шт.

6

72242C1

LIGHT, indicator

1шт.

58554C1

BULB,C2F, #1892, 14V

LAMP, replacement, #1892

1шт.

7

72145C1

CABLE, jumper, hour meter to ground, Start Serial: 200

1шт.

7

77693C1

CABLE

gauge ground, Start Serial: 201

1шт.

8

72241C1

METER

hour

1шт.

9

77591C1

AMMETER

, Start Serial: 201

1шт.

9

77592C91

KIT

ammeter, Replaces 72240C1, Serial Range: -200

1шт.

10

77589C1

GAUGE

oil pressure, Replaces 72239C1

1шт.

11

77587C1

GAUGE, temperature, Start Serial: 201

1шт.

11

77586C91

KIT

temperature gauge, Replaces 72238C1, Serial Range: -200

1шт.

12

77593C1

GAUGE

fuel, Start Serial: 201

1шт.

12

77595C91

KIT

fuel gauge, Replaces 72237C1, Serial Range: -200

1шт.

13

72244C1

IGNITION SWITCH

SWITCH, ignition

1шт.

14

72144C1

CABLE, jumper, Serial Range: amm.-switch

1шт.

15

72281C1

CABLE, jumper, fuse to light switch

1шт.

16

72277C1

HOLDER, 30 amp fuse

1шт.

147686

FUSE,30 Amp, Type SFE

30 amp - SFE 30

1шт.

17

72146C1

CABLE, jumper, Serial Range: amm.-fuse

1шт.

18

72615C1

CONNECTOR

2шт.

19

72275C91

LIGHT ASSY, head

4шт.

373662R91

LAMP

replacement #4411, Optional w/131508C1

4шт.

131508C1

LAMP BASE

LAMP, replacement, Optional w/373662R91

4шт.

20

72611C1

CONNECTOR

3шт.

21

77594C1

SENDER UNIT

SENDER, fuel level, Start Serial: 201

1шт.

21

77595C91

KIT

fuel sender, Replaces 72228C1, Serial Range: -200

1шт.

72135C1

GASKET

fuel sender

1шт.

22844R1

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW, SELF TAPPING, Hex Hd, #10 x 1/2"

5шт.

77695C1

WASHER

5шт.

22

72128C1

SWITCH

pressure

1шт.

23

74700C1

SWITCH, glow plug

1шт.

24

73924C1

HARNESS, glow plug wiring

1шт.

25

75034C1

CABLE, battery, NEG

1шт.

26

IHMF24PF

DRY BATTERY

1шт.

27

72137C1

CABLE, battery, POS

1шт.

28

NSS

NOT SOLD SEPARAT

RELAY, Refer to Isuzu engine service parts

1шт.

29

77590C1

SENDER UNIT

SENDER, oil pressure, Replaces 72235C1

1шт.

30

72246C1

SWITCH

oil pressure shut-off

1шт.

31

73923C1

HARNESS, engine wiring, Diesel

1шт.

32

72142C1

HARNESS, canopy wiring

1шт.

33

72276C91

LIGHT ASSY, tail

1шт.

20627R1

BULB,C2F, #194, 14V

LAMP, tail light #194

1шт.

34

72208C1

ANGLE, light kit, bracket

1шт.

35

77588C1

KIT

SENDER, temperature, Start Serial: 201

1шт.

35

77586C91

KIT

temperature sender, Replaces 72234C1, Serial Range: -200

1шт.

36

72268C91

ALTERNATOR

1шт.

72229C1

REGULATOR

1шт.

72233C1

PULLEY, alternator

1шт.

121629C1

IGNITION SWITCH

SWITCH, neutral starting

1шт.

74702C91

LIGHT ATT, Consists of ref 18, 19, 20, 33 & 34

1шт.

Выбрано товаров: 55
