Запчасти Case IH 4140 (08-02) - STARTER MOTOR - ISUZU ENGINE, LOADER SERIAL NO. 139 AND BELOW (06) - ELECTRICAL

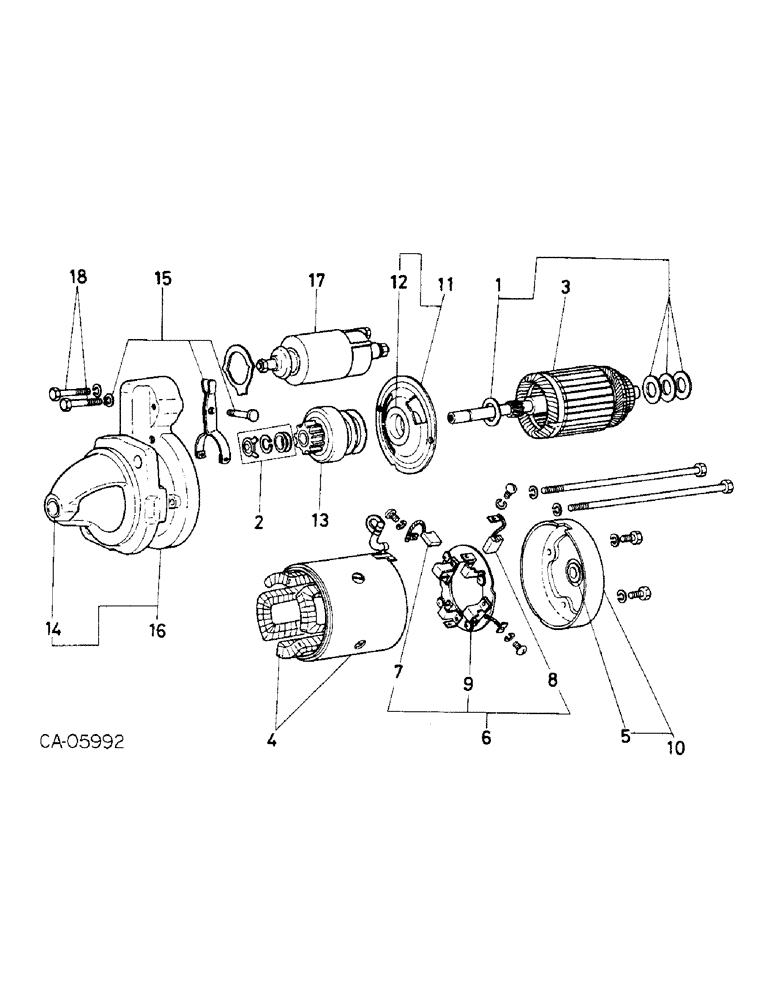

Схема запчастей Case IH 4140 - (08-02) - STARTER MOTOR - ISUZU ENGINE, LOADER SERIAL NO. 139 AND BELOW (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

74912C91

MOTOR

ASSY, starter

1шт.

74958C1

BOLT, starter mounting

2шт.

74570C1

WASHER, starter mtg lock

2шт.

74538C1

WASHER, starter mfg flat

2шт.

1

74682C1

KIT, thrust washer

1шт.

2

74959C1

KIT, pinion stopper

1шт.

3

74960C1

ARMATURE ASSY

1шт.

4

74961C1

COIL ASSY, field

1шт.

5

74685C1

WASHER, rear cover thrust, Furnished as part of 74966C91

1шт.

6

74962C91

HOLDER ASSY, brush

1шт.

7

74963C1

BRUSH, positive

2шт.

8

74964C1

BRUSH, negative

2шт.

9

74965C1

SPRING, brush

4шт.

10

74966C91

COVER ASSY, rear

1шт.

11

74691C1

BEARING ASSY, center

1шт.

12

74692C1

WASHER, center bearing thrust, Furnished as part of 74691C1

1шт.

13

74693C1

DRIVE ASSY, starter

1шт.

14

74694C1

WASHER

gear case thrust, Furnished as part of 74967C91

1шт.

15

74695C1

LEVER ASSY, shift

1шт.

16

74967C91

HOUSING ASSY, gear

1шт.

17

74697C1

SWITCH

ASSY, starter

1шт.

18

74699C1

BOLT, gear housing

2шт.

Выбрано товаров: 22
