Запчасти Case IH 4140 (08-01) - CHRYSLER ENGINE (06) - ELECTRICAL

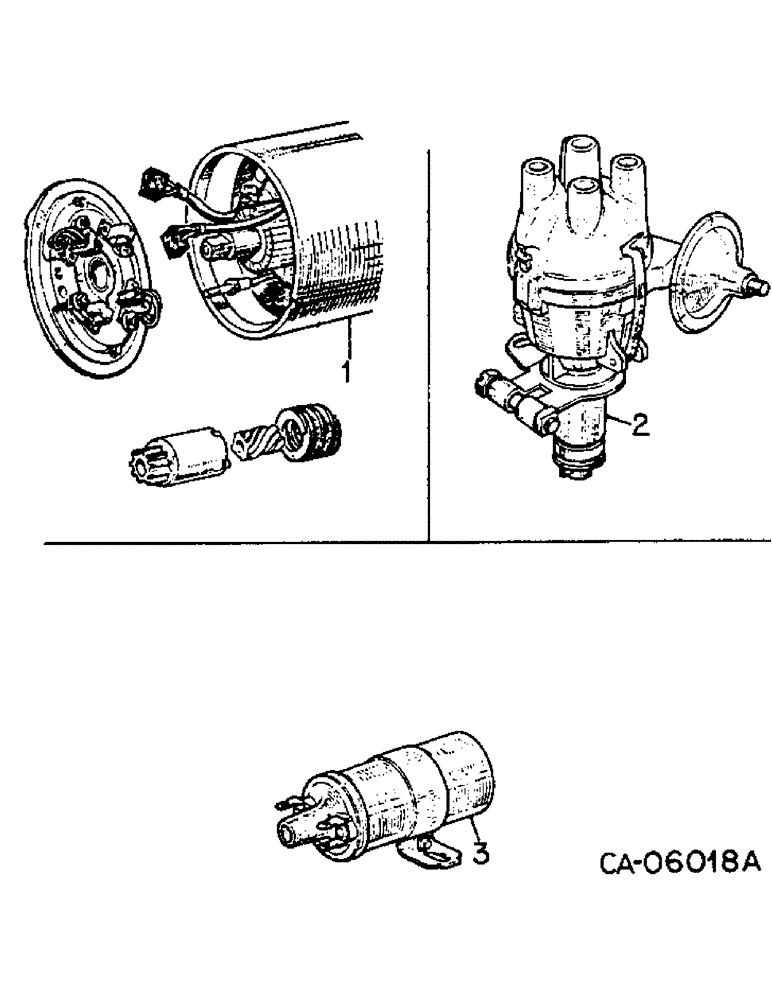

Схема запчастей Case IH 4140 - (08-01) - CHRYSLER ENGINE (06) - ELECTRICAL

Артикул

Название

Примечание

Количество

1

75687C91

MOTOR

ASSY, starter, Consists of

1шт.

75688C1

HOLDER, brush

1шт.

75689C1

SPRING, brush

1шт.

75690C1

BRUSH, COMMUTATOR

BRUSH

4шт.

75691C1

BEARING ARMATURE, brush end

1шт.

75692C1

DRIVE

clutch

1шт.

75693C1

STOP, pinion

1шт.

75694C1

BEARING, armature, drive end

1шт.

75695C91

RELAY

SOLENOID

1шт.

181651

SHIELD

BOLT, 3/8-NF x 2-3/4 type 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120369

NUT,3/8"-24, G5

2шт.

2

75698C91

DISTRIBUTOR ASSEMBLY, Consitst of

1шт.

75699C1

CAP

distributor

1шт.

75700C1

SPRING

CARBON AND SPRING

1шт.

75701C1

ROTOR

1шт.

75702C91

SET

contact breaker

1шт.

75703C1

CONDENSER

AND LEAD

1шт.

75704C91

PLATE ASSY, base

1шт.

75705C91

SET, spring, automatic advance

1шт.

75706C91

SHAFT

ASSY, distributor

1шт.

75707C1

VACUUM ADVANCE UNIT

1шт.

75708C1

DRIVE, distributor shaft

1шт.

75709C1

PLATE, clamping

1шт.

75710C1

BOLT, Serial Range: distributor-bracket

1шт.

75711C1

WASHER, distributor to bracket bolt

1шт.

N9Y

SPARK PLUG

PLUG, spark, Champion

4шт.

75712C1

CABLE

, Serial Range: coil-distributor

1шт.

75713C1

CABLE

spark plug, cyl 1

1шт.

75714C1

CABLE

spark plug, cyl 2

1шт.

75715C1

CABLE

spark plug, cyl 3 and 4

2шт.

3

75716C1

COIL

ignition

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-NF x 3/4 type 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

120368

NUT,5/16"-24, G5

2шт.

Выбрано товаров: 35
