Запчасти Case IH 4140 (17-05) - POST HOLE AUGER ATTACHMENT / AUGER BIT ATTACHMENT (05) - SUPERSTRUCTURE

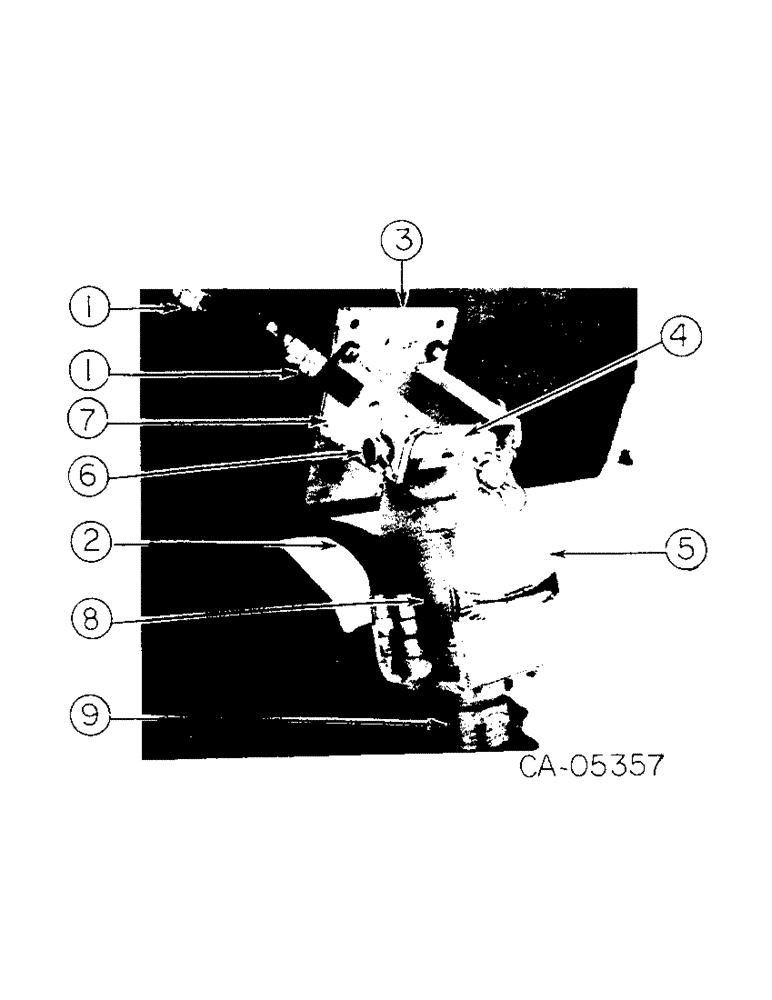

Схема запчастей Case IH 4140 - (17-05) - POST HOLE AUGER ATTACHMENT / AUGER BIT ATTACHMENT (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

72305C1

COUPLER, male

2шт.

2

72105C1

HYDRAULIC HOSE,0.50" ID x 55.00", SAE 100R1

HOPSE ASSY

2шт.

3

72111C1

BRACKET, mounting

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

102378

NUT, 1/2 type 5

4шт.

4

72165C1

PIVOT

1шт.

5

72231C1

BRACKET, motor mount

1шт.

6

72232C1

PIN, pivot

1шт.

7

520177R1

PIN

Q.A.

4шт.

8

72319C1

MOTOR ASY

1шт.

179891

SHAFT

1/2 x 2-1/2 pln type 5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

9

72320C1

ADAPTER

1шт.

179897

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 pln type 5

1шт.

18466R1

BOLT, 1/2 x 1-1/2 sq/hd mach type 1

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

72326C1

BLADE, 9 in. replacement cutting, auger bit attachment

1шт.

72327C1

BLADE, 12 in. replacement cutting, auger bit attachment

1шт.

72328C1

BLADE, 18 in. replacement cutting, auger bit attachment

1шт.

72330C1

POINT, replacement, auger bit attachment

1шт.

Выбрано товаров: 21
