Запчасти Case IH 4140 (13-01) - SUPERSTRUCTURE (05) - SUPERSTRUCTURE

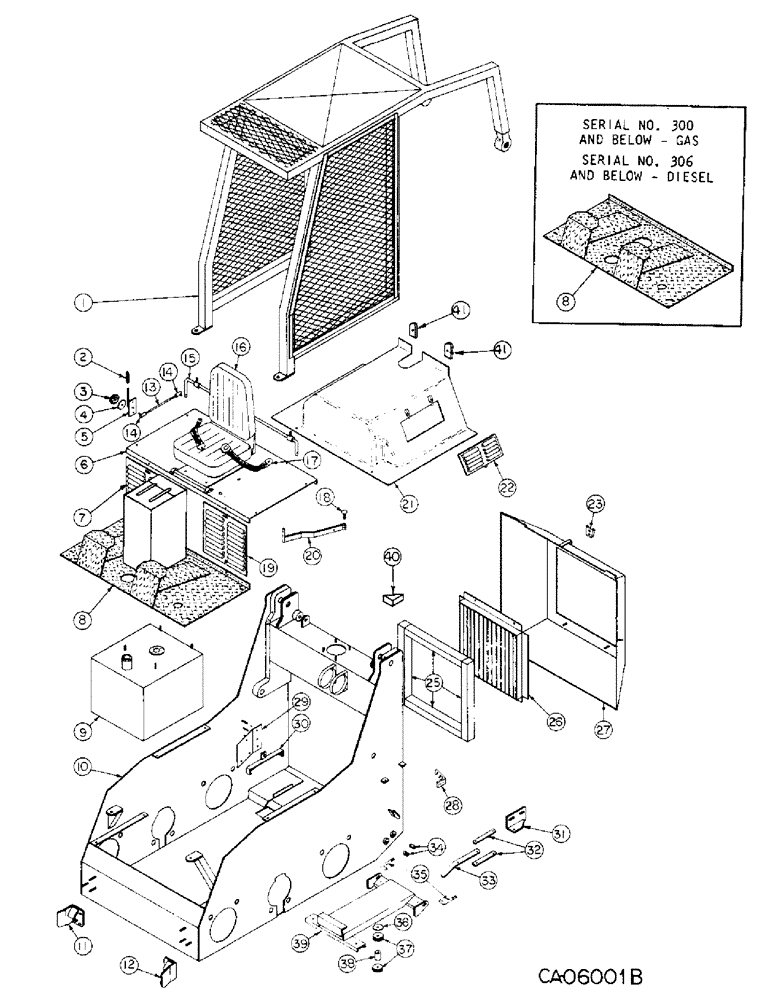

Схема запчастей Case IH 4140 - (13-01) - SUPERSTRUCTURE (05) - SUPERSTRUCTURE

Артикул

Название

Примечание

Количество

1

75000C1

CAB, rops, canopy

1шт.

24879R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25528R1

NUT,5/8"-11, G8

5/8 phc type 8

2шт.

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

25526R1

NUT,1/2"-13, G8

1/2 phc type 8

2шт.

2

72125C1

GRIP, throttle

1шт.

3

72007C1

PAD, restrictor

1шт.

4

78242C1

BELLEVILLE WASHER

Belleville, Replaces 73847C1

2шт.

5

72006C1

LEVER, throttle

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

6

75001C1

PLATE, seat, Serial no. 451 and below, Gas, Serial no. 360 and below, Diesel

1шт.

6

78693C1

PLATE, seat, Serial no. 452 and above, Gas, Serial no. 361 and above, Diesel

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

4шт.

78054C1

STRIP, wear pad, Serial no. 326 a & above, Gas, Serial no. 307 & above, Diesel

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp p/hdcr mach

2шт.

178349

LOCK WASHER,Ext-Int Tooth, #6

WASHER, no. 6 ext, int tooth lock

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

7

75002C1

VENTILATOR, kick, RH, plate

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120388

.438 x 1.000 x .064

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

75003C1

PLATE, floor, Serial no. 300 and below, Gas, Serial no. 306 and below, Diesel

1шт.

8

77928C1

HOUSING W/FLOOR PLATE, control, Serial no. 301 to 451, Gas, Serial no. 307 to 360, Diesel

1шт.

8

78692C1

CONSOLE ASSY, Serial no. 452 and above, Gas, Serial no. 361 and above, Diesel

1шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

9

75004C1

TANK, fuel

1шт.

72187C1

CAP

fuel tank

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

4шт.

10

75005C1

FRAME, main

1шт.

11

75006C1

GUIDE, boom, RH

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

12

75007C1

GUIDE, boom, LH

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

13

75008C1

STUD

throttle

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

14

72266C1

END

rod

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

15

75009C1

ROD, throttle crossover

1шт.

120388

.438 x 1.000 x .064

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

16

77991C91

SEAT ASSY.

SEAT, Replaces 72009C1

1шт.

77333C1

CUSHION

seat, back, Serial no. 325 & below, Gas, Serial no. 314 & below, Diesel

1шт.

77992C1

CUSHION

seat, back, Serial no. 326 & above, Gas, Serial no. 315 & above, Diesel

1шт.

77334C1

CUSHION, seat, bottom, Serial no. 325 & below, Gas, Serial no. 314 & below, Diesel

1шт.

77993C1

CUSHION

seat, bottom, Serial no. 326 & above, Gas, Serial no. 315 & above, Diesel

1шт.

77798C1

FRAME, seat, Serial no. 325 & below, Gas, Serial no. 314 & below, Diesel

1шт.

77994C1

FRAME, seat, Serial no. 326 & above, Gas, Serial no. 315 & above, Diesel

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

17

72179C1

BELT

SAFETY BELT

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16 type 5

2шт.

18

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8 x 2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

19

75010C1

VENTILATOR, kick, LH, plate

1шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x.064

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

20

72004C1

ARM, safety lock, Serial no. 114 & below, Gas, Serial no. 118 & below, Diesel

1шт.

20

76986C1

ARM, safety lock, Serial no. 115 & above, Gas, Serial no. 119 & above, Diesel

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

120376

NUT,5/16"-18, G5

2шт.

21

75011C1

SHROUD, engine, Gas

1шт.

21

75012C1

SHROUD, engine, Diesel

1шт.

120388

.438 x 1.000 x .064

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

22

72008C1

VENTILATOR, engine shroud

2шт.

23

398976R1

BRACKET

SOCKET, SMV

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

25

73851C1

STRIP, insulation

4шт.

26

75015C1

GRILLE

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

4шт.

102384

HYDRAULIC VALVE

WASHER, 1/2 lock

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

27

75016C1

GATE, rear grille

1шт.

28

75017C1

ANGLE, filter, bracket, Serial no. 198 & below, Gas, Serial no. 200 & below, Diesel

1шт.

28

77266C1

SUPPORT, oil filter mounting, Serial no. 199 & above, Gas, Serial no. 201 & above, Diesel

1шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

29

73858C1

SUPPORT, control valve, mount

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

30

75018C1

BRACKET, battery hold down

1шт.

120388

.438 x 1.000 x .064

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

31

73852C1

SUPPORT, latch, pivot

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

32

73853C1

BAR, latch pivot

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 type 5

2шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2 cad p/t lock type 5

2шт.

33

73854C1

SUPPORT, grille latch, handle

1шт.

73934C1

PIN, hitch

1шт.

34

444705

PLUG,Hex Soc, 1/2"-14, Brass

1/2-14 socket hd auto pipe

2шт.

35

75019C1

BOLT

J, gas

2шт.

35

73855C1

BOLT,5/8" - 11 x 5 1/2"

J, diesel

2шт.

131016

WASHER

.656 x 1.312 x .074

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

4шт.

36

72157C1

WASHER, retainer

4шт.

37

72158C1

MOUNT, rubber

4шт.

38

72159C1

BUSHING

4шт.

39

75020C1

SUPPORT, motor, mount

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3 type 5

4шт.

40

75021C1

STRIP, insulation, wedge

3шт.

41

75199C1

BAR, shroud, tab

4шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

102377

3/8 type 5

2шт.

Выбрано товаров: 131
