Запчасти Case IH 4140 (12-32) - ENGINE AND MOUNTING - DIESEL (04) - Drive Train

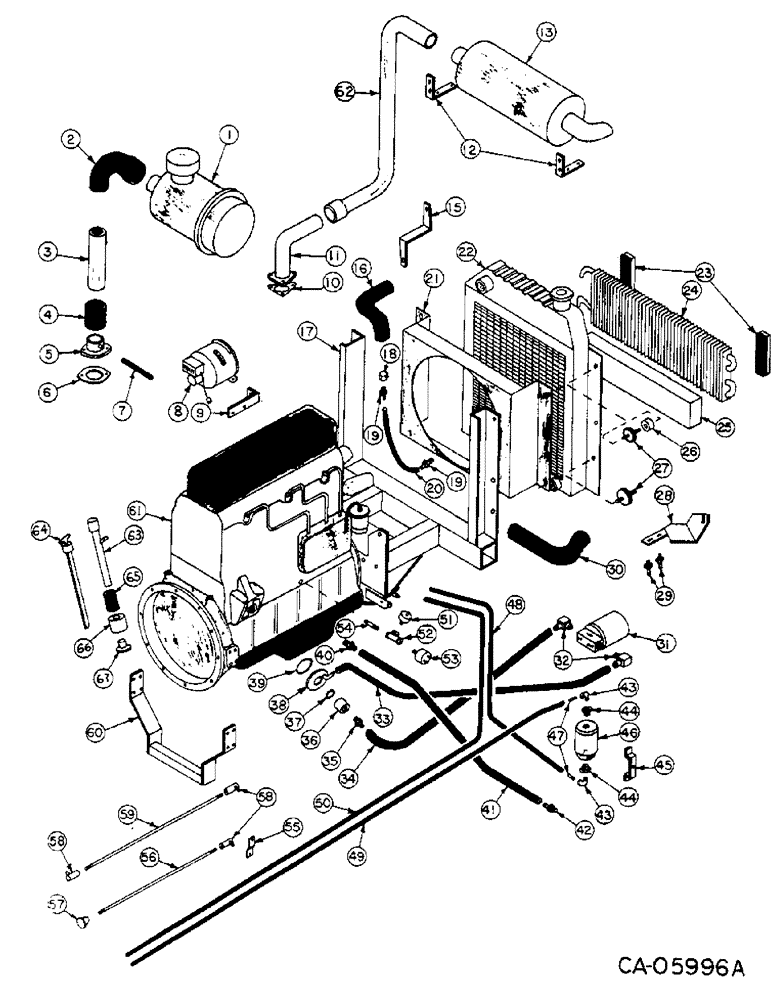

Схема запчастей Case IH 4140 - (12-32) - ENGINE AND MOUNTING - DIESEL (04) - Drive Train

Артикул

Название

Примечание

Количество

1

75030C91

CLEANER ASSY, air

1шт.

75031C1

CUP

1шт.

381346R1

BAFFLE

rubber

1шт.

389567R91

FILTER, ELEMENT

ELEMENT

1шт.

377953R91

CLAMP

1шт.

353019R92

CYLINDER END CAP

CAP, stack

1шт.

407076R91

PRECLEANER

FILTER, pre cleaner, optional

1шт.

2

75037C1

HOSE

Air Cleaner

1шт.

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, #32 hose

2шт.

3

75038C1

TUBE, air inlet 2" OD, 8" Length

1шт.

4

75061C1

HOSE, air cleaner

1шт.

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, #32 hose

2шт.

5

75062C1

ADAPTER, air inlet

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

73928C1

BOLT, air inlet adapter

2шт.

6

73864C1

GASKET, inlet

1шт.

7

75064C1

HOSE, vent

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

8

72268C91

ALTERNATOR

1шт.

9

75065C1

SUPPORT, alternator, bracket

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

75066C1

GASKET, exhaust

1шт.

11

75067C1

PIPE, exhaust, front

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

73928C1

BOLT, exhaust

4шт.

12

75044C1

ANGLE, muffler, bracket

2шт.

120388

.438 x 1.000 x .064

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

13

75042C1

MUFFLER, exhaust, Serial Range: -174

1шт.

13

76477C1

MUFFLER

exhaust, Start Serial: 175

1шт.

73260C1

CLAMP, muffler

2шт.

75043C1

CLAMP

muffler

1шт.

15

75069C1

SUPPORT, radiator stabilizer, RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

1шт.

446363

WASHER,5/16"

.375 x .875 x .064

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

16

73870C1

HOSE

radiator, upper

1шт.

73871C1

ADAPTER

1шт.

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, #24 hose

2шт.

17

75071C1

SUPPORT, rear motor, mount

1шт.

75072C1

BOLT

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

77022C1

BAR, retainer, Start Serial: 193

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

18

105411

CAP,1/4" NPT

1/4 pipe

1шт.

19

72583C1

CONNECTOR

2шт.

20

NSS

NOT SOLD SEPARAT

HOSE, radiator drain, Use 14 in. from 50 ft roll marked 427683C1

1шт.

72271C1

CLAMP, hose

2шт.

21

75073C1

SHROUD, radiator

1шт.

22

75049C1

RADIATOR

1шт.

72265C1

CAP

radiator

1шт.

75050C1

ABSORBER, radiator vibration

1шт.

23

73875C1

BAR, oil cooler, retainer

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

24

73874C1

COOLER

oil

1шт.

25

73851C1

STRIP, insulation, Replaces 75013C1

1шт.

26

73907C1

BUSHING

2шт.

27

73879C1

INSULATOR

radiator

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

28

75074C1

BRACKET, radiator stabilizer, LH

1шт.

29

75075C1

STUD, radiator stabilizer brkt

2шт.

120388

.438 x 1.000 x .064

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

30

75051C1

HOSE,1.50" ID x 8.50"

RADAITOR HOSE, , Lower 1.50" ID x 8.50"

1шт.

27337C1

CLAMP, #28 hose

2шт.

31

76396C1

HEAD, filter

1шт.

73321C1

ELEMENT

filter

1шт.

NLS

NO LONGER SERVICED

.312 x .734 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 pln type 5

2шт.

32

73496C1

ELBOW

2шт.

33

NSS

NOT SOLD SEPARAT

HOSE, filter to engine, Use 11 in. from 50 ft. roll marked 526621R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

34

NSS

NOT SOLD SEPARAT

HOSE, engine to filter, Use 25 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

35

73657C1

FITTING

1шт.

36

75053C1

UNION, remote filter

1шт.

37

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

38

75052C1

ADAPTER, remote filter

1шт.

39

75198C1

GASKET, nylon, washer

1шт.

40

75076C1

FITTING, oil drain

1шт.

41

NSS

NOT SOLD SEPARAT

HOSE, oil drain, Use 20 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

42

74761C1

CONNECTOR

1шт.

43

105422

ELBOW UNION

ELBOW, 1/8 90 deg street

2шт.

44

112877

ADAPTER,1/4" NPT Male x 1/8" NPT Fem

BUSHING, 1/4 - 1/8 reducing pipe

2шт.

45

73881C1

CLAMP, water separator, bracket

1шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

46

72054C1

FILTER

SCREEN, water, separator

1шт.

538122R1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm, W/liner

CLAMP, #8 hose

2шт.

47

109421

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE, 3/8 x 1-1/2 pipe

2шт.

48

NSS

NOT SOLD SEPARAT

HOSE, fuel, Use 8 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

49

NSS

NOT SOLD SEPARAT

HOSE, fuel, Use 55 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

50

NSS

NOT SOLD SEPARAT

HOSE, return, Use 55 in. from 50 ft. roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

51

77590C1

SENDER UNIT

GAUGE, oil pressure sender, Replaces 72235C1

1шт.

52

105416

TEE,1/8" NPT, Fem

1/8 pipe

1шт.

53

72246C1

SWITCH

oil pressure shut-off

1шт.

54

115075

NIPPLE, 1/8 x 3 pipe

1шт.

55

75077C1

SUPPORT, extender, bracket

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

56

73276C1

ROD, engine shut-off

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

57

73885C1

KNOB, engine shut-off

1шт.

58

72266C1

END

rod

3шт.

59

75079C1

ROD, throttle

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

60

73887C1

SUPPORT, front engine, mount

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

61

74440C91

ENGINE ASSY

1шт.

62

75197C1

PIPE, exhaust, rear, Serial Range: -174

1шт.

62

77287C1

PIPE, exhaust, rear, Start Serial: 175

1шт.

63

78116C1

TUBE, dipstick, Start Serial: 361

1шт.

64

78117C1

GAUGE, oil, dipstick, Start Serial: 361

1шт.

65

NSS

NOT SOLD SEPARAT

HOSE, adapter, Use 3 inches from 50 ft roll marked 73200C1, Start Serial: 361

1шт.

66

78118C1

CAP, filler, Start Serial: 361

1шт.

67

78119C1

TUBE, dipstick, adapter, Start Serial: 361

1шт.

74843C1

GASKET, Start Serial: 361

1шт.

Выбрано товаров: 133
