Запчасти Case IH 4140 (12-30) - ENGINE AND MOUNTING - GAS (04) - Drive Train

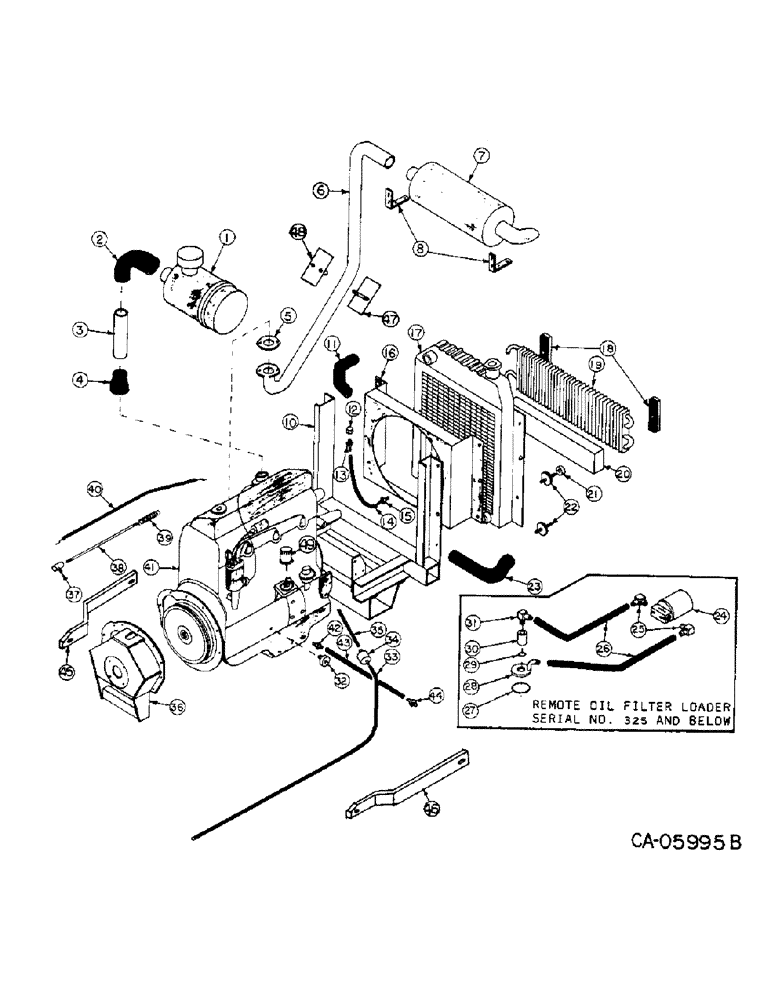

Схема запчастей Case IH 4140 - (12-30) - ENGINE AND MOUNTING - GAS (04) - Drive Train

Артикул

Название

Примечание

Количество

1

75030C91

CLEANER ASSY, air

1шт.

75031C1

CUP

1шт.

381346R1

BAFFLE

rubber

1шт.

389567R91

FILTER, ELEMENT

ELEMENT

1шт.

377953R91

CLAMP

1шт.

353019R92

CYLINDER END CAP

CAP, stack

1шт.

407076R91

PRECLEANER

FILTER, pre-cleaner, optional

1шт.

2

75037C1

HOSE

Air Cleaner

1шт.

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, #32 hose

2шт.

3

75038C1

TUBE, air inlet 2" OD, 8" Length

1шт.

4

75039C1

ADAPTER

air inlet

1шт.

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP, #32 hose

1шт.

995222R1

CLAMP

#36 hose

1шт.

5

75040C1

GASKET

exhaust

1шт.

6

75041C1

PIPE

exhaust, Serial Range: -135

1шт.

6

77284C1

PIPE

exhaust, Start Serial: 136

1шт.

182718

BOLT

3/8-NF x 1 phc type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

75042C1

MUFFLER, exhaust, Serial Range: -135

1шт.

7

76477C1

MUFFLER

exhaust, Start Serial: 136

1шт.

73260C1

CLAMP, muffler

1шт.

75043C1

CLAMP

muffler

1шт.

8

75044C1

ANGLE, exhaust, bracket

2шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

10

75046C1

SUPPORT, rear engine, mount

1шт.

75148C1

SPACER

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

182718

BOLT

3/8-NF x 1 phc type 5

3шт.

182730

BOLT

3/8-NF x 2 phc type 5

3шт.

77022C1

BAR, retainer, Start Serial: 156

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

1шт.

11

75047C1

HOSE,1.50" ID x 6.00"

RADIATOR HOSE, , Upper 1.50" ID x 6.00"

1шт.

27724R1

HOSE CLAMP,#24, 1.06/2.00 Type F Worm, W/liner

CLAMP, hose #24

2шт.

12

NLS

NO LONGER SERVICED

1/4 pipe

1шт.

13

72583C1

CONNECTOR

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE, radiator drain, Use 14 in. from 50 ft roll marked 427683C1

1шт.

72271C1

CLAMP, hose

2шт.

15

72583C1

CONNECTOR

1шт.

16

75048C1

SHROUD, radiator

1шт.

17

75049C1

RADIATOR

1шт.

72265C1

CAP

radiator

1шт.

75050C1

ABSORBER, radiator vibration

1шт.

18

73875C1

BAR, oil cooler, retainer

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120388

.438 x 1.000 x .064

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

19

73874C1

COOLER

oil

1шт.

20

73851C1

STRIP, installation, Replaces 75013C1

1шт.

21

73907C1

BUSHING

2шт.

22

73879C1

INSULATOR

radiator

4шт.

NLS

NO LONGER SERVICED

.438 x 1.000 x .064

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

23

75051C1

HOSE,1.50" ID x 8.50"

RADAITOR HOSE, , Lower 1.50" ID x 8.50"

1шт.

27337R1

HOSE CLAMP,#28, 1.31/2.25 Type F Worm, W/liner

CLAMP, hose #28

2шт.

24

76396C1

HEAD, filter

1шт.

73321C1

ELEMENT

filter, Serial Range: -325

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

2шт.

25

73496C1

ELBOW

2шт.

26

NSS

NOT SOLD SEPARAT

HOSE, filter to engine, Use 25 in. from 50 ft roll marked 526602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

27

75198C1

GASKET, nylon, washer

1шт.

28

75052C1

ADAPTER, remote filter

1шт.

29

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

30

75053C1

UNION, remote filter

1шт.

31

75054C1

ELBOW

1шт.

32

77590C1

SENDER UNIT

GAGE, oil pressure, sender, Replaces 72235C1

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE, tank to filter, Use 47 in. from 50 ft. roll marked 427683C1

1шт.

72271C1

CLAMP, hose

2шт.

34

72272C1

FILTER

fuel

1шт.

35

NSS

NOT SOLD SEPARAT

HOSE, filter to carburetor, Use 44 in. from 50 ft. roll marked 427683C1

1шт.

72271C1

CLAMP, hose

2шт.

36

75055C1

SUPPORT, front motor, mount

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

2шт.

86900411

WASHER

3/8-NF x 1-1/4 type 5

3шт.

120388

.438 x 1.000 x .064

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120369

NUT,3/8"-24, G5

1шт.

37

72266C1

END

rod

1шт.

38

75056C1

ROD, throttle

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

2шт.

39

75057C1

SPRING

throttle

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

40

73279C1

CABLE

choke

1шт.

41

74999C91

ENGINE ASSY, Chrysler

1шт.

75058C1

FAN

1шт.

120386

WASHER

.312 x .734 x .051

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

181566

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

1/4-NF x 3/4 type 5

4шт.

75059C1

BELT

Alternator

1шт.

42

75060C1

FITTING, oil drain

1шт.

43

NSS

NOT SOLD SEPARAT

HOSE, oil drain, Use 20 in. from 50 ft. roll marked 5626602R1

1шт.

27860R1

HOSE CLAMP,#06, .44/.78 Type F Worm, W/liner

CLAMP, #6 hose

2шт.

44

74761C1

CONNECTOR

1шт.

45

76988C1

SUPPORT, motor mount, RH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120396

WASHER

.531 x 1.062 x .074

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

46

76989C1

SUPPORT, motor mount, LH

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

47

77285C1

SUPPORT, lower, baffle, Start Serial: 136

1шт.

48

77286C1

SUPPORT, upper, baffle

1шт.

120376

NUT,5/16"-18, G5

, Start Serial: 136

2шт.

49

75318C1

FILTER

ELEMENT, filter, Start Serial: 326

1шт.

Выбрано товаров: 115
