Запчасти Case IH 4140 (12-27) - OIL PUMP, ISUZU ENGINE (04) - Drive Train

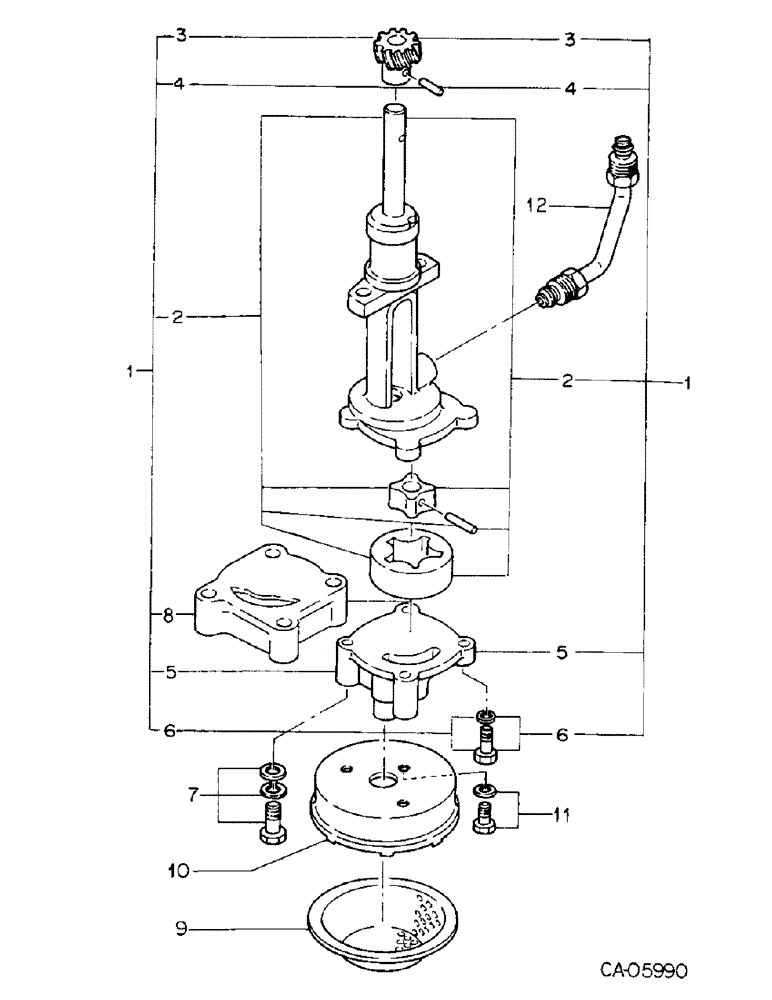

Схема запчастей Case IH 4140 - (12-27) - OIL PUMP, ISUZU ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

74919C91

PUMP

W/STRAINER, oil

1шт.

1

74940C91

PUMP

ASSY, oil

1шт.

2

74941C1

ROTOR ASSY, oil pump

1шт.

3

74669C1

GEAR, oil pump drive

1шт.

4

74670C1

PIN, gear shaft

1шт.

5

74942C1

COVER, oil pump

1шт.

6

74943C1

BOLT, oil pump cover

2шт.

74558C1

WASHER, lock

2шт.

7

74944C1

BOLT, oil pump cover

2шт.

74558C1

WASHER, lock

2шт.

74566C1

WASHER, flat

2шт.

8

74945C1

SPACER, oil pump

1шт.

9

74946C1

SCREEN, oil strainer

1шт.

10

74947C1

CASE, oil strainer screen

1шт.

11

74948C1

BOLT, case

1шт.

74558C1

WASHER, lock

1шт.

74678C1

BOLT, oil pump mounting

2шт.

12

74949C1

TUBE ASSY, oil pump

1шт.

Выбрано товаров: 18
