Запчасти Case IH 4140 (12-25) - FUEL SYSTEM, ISUZU ENGINE (04) - Drive Train

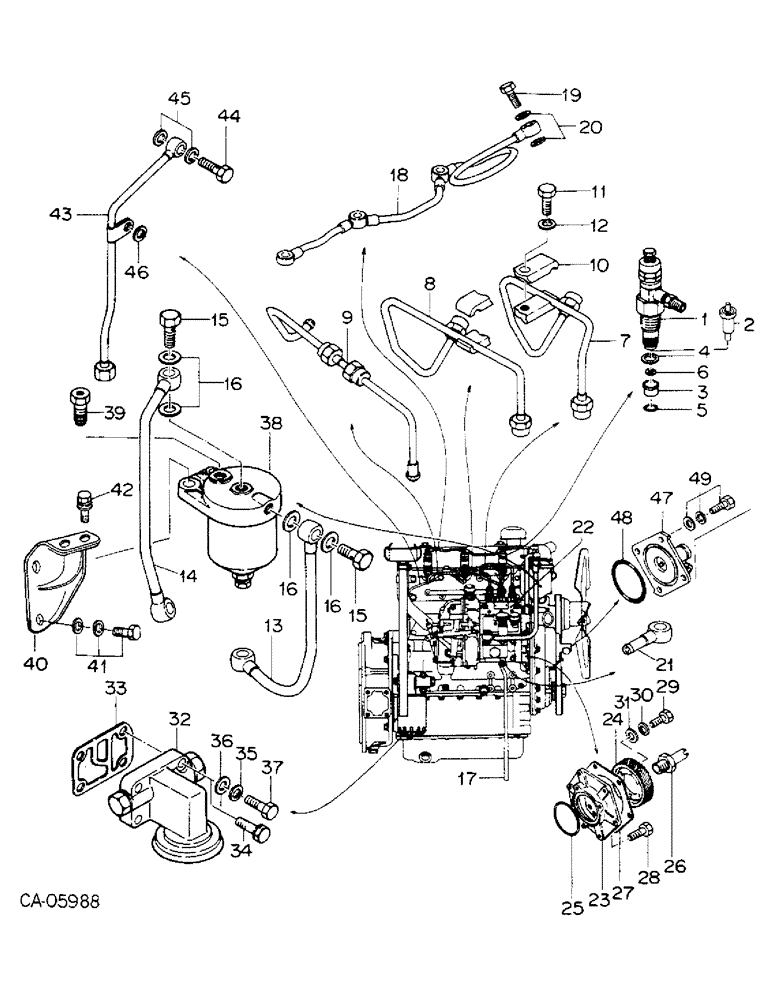

Схема запчастей Case IH 4140 - (12-25) - FUEL SYSTEM, ISUZU ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

1

73087C1

INJECTOR ASSY, fuel

3шт.

2

73082C1

NOZZLE INJECTION

NOZZLE

3шт.

3

74571C1

ADAPTER

nozzle heat

3шт.

4

74572C1

WASHER, injector nozzle

3шт.

5

74573C1

WASHER

heat shield adapter

3шт.

6

74574C1

WASHER

corrugated

3шт.

7

74891C1

TUBE ASSY, fuel injection, no. 1

1шт.

8

74892C1

TUBE ASSY, fuel injection, no. 2

1шт.

9

74893C1

TUBE ASSY, fuel injection, no. 3

1шт.

10

74579C1

CLAMP ASSY, injector tubing, Includes ref. nos. 11 and 12

2шт.

11

74581C1

BOLT, tubing clamp

2шт.

12

74580C1

WASHER, tubing clamp lock

2шт.

13

74894C1

TUBE ASSY, Serial Range: pump-filter

1шт.

14

74895C1

TUBE ASSY, filter to injection pump

1шт.

15

74854C1

SCREW, fuel filter union

2шт.

16

74553C1

GASKET

WASHER, sealing

4шт.

17

74585C1

TUBING, vinyl injector pump leak

1шт.

18

74896C1

TUBE ASSY, nozzle

1шт.

19

74587C1

SCREW, nozzle tubing union

1шт.

20

73975C1

WASHER

sealing

2шт.

21

74588C1

TUBE ASSY, fuel inlet

2шт.

22

74897C91

PUMP ASSY, fuel injection

1шт.

23

74898C1

BRACKET, injection pump

1шт.

24

74899C1

GEAR, injection pump

1шт.

26

74901C1

ADAPTER, tachometer drive

1шт.

27

74593C1

GASKET, fuel injection pump

1шт.

28

74902C1

BOLT

2шт.

29

74863C1

BOLT, gear mounting

4шт.

30

74566C1

WASHER, gear mounting

4шт.

31

74558C1

WASHER, lock

4шт.

32

74903C91

HEAD ASSY, oil filter

1шт.

33

74904C1

GASKET, oil filter head

1шт.

34

74905C1

BOLT, filter head mounting

3шт.

35

74558C1

WASHER, filter head lock

1шт.

36

74559C1

WASHER, filter head

1шт.

37

74906C1

BOLT, filter head mounting

1шт.

38

74661C91

FILTER ASSY, fuel

1шт.

39

74663C1

VALVE ASSY, overflow

1шт.

40

74907C1

BRACKET, fuel filter

1шт.

41

74908C1

BOLT, W/WASHER, bracket mounting

2шт.

42

74909C1

BOLT, fuel, Serial Range: filter-bracket

2шт.

43

74910C1

TUBE ASSY, rocker oil feed

1шт.

44

74596C1

SCREW, rocker oil feed union

1шт.

45

74597C1

WASHER, sealing

2шт.

46

74558C1

WASHER, lock

1шт.

49

74510C1

BOLT W/WASHERS, tachometer drive

4шт.

79638C1

PUMP, priming

1шт.

79640C1

PUMP, feed

1шт.

Выбрано товаров: 48
