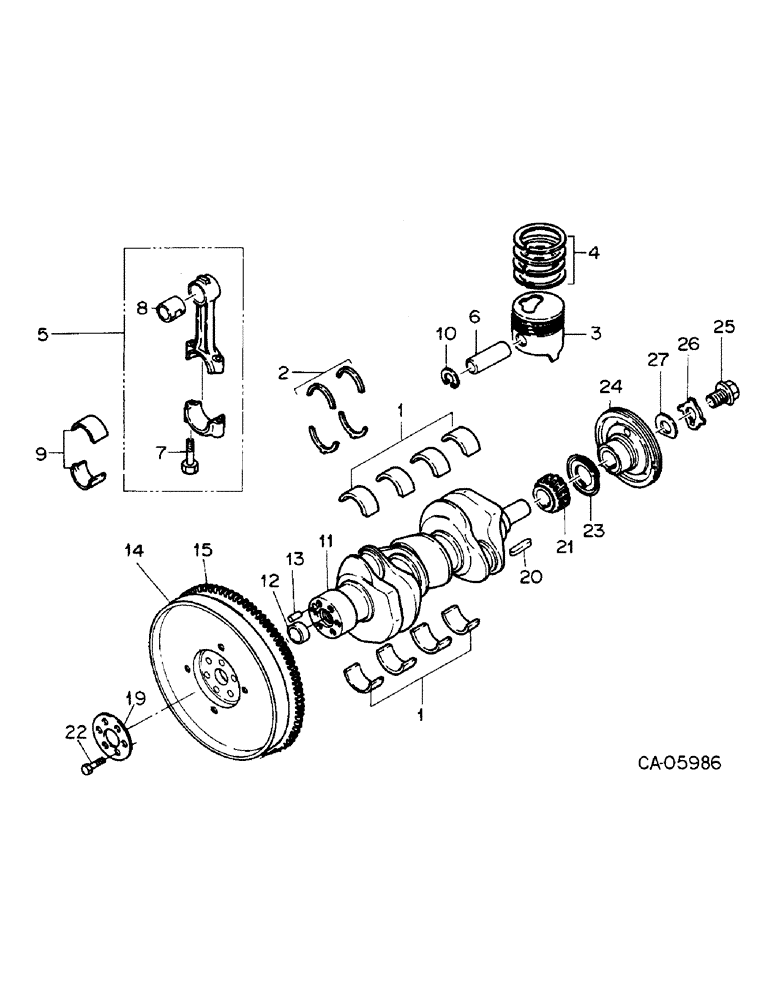

Запчасти Case IH 4140 (12-21) - CRANKSHAFT, ISUZU ENGINE (04) - Drive Train

1

74873C1

SET, crankshaft bearing, std

1шт.

1

74874C1

SET, crankshaft bearing, .50 U/S

1шт.

1

74875C1

SET, crankshaft bearing, 1.00 U/S

1шт.

2

72948C1

BEARING, thrust

2шт.

3

72949C1

PISTON

3шт.

3

74876C1

PISTON, .50 O/S

3шт.

3

74877C1

PISTON, 1.00 O/S

3шт.

4

74878C1

SET

piston ring

1шт.

4

74879C1

SET, piston ring, .50 U/S

3шт.

4

74880C1

SET, piston ring, 1.0 U/S

3шт.

5

72951C91

ROD ASSY, connecting

3шт.

6

72955C1

PIN, piston

3шт.

7

72952C1

BOLT, connecting rod

6шт.

8

72953C1

BUSHING, connecting rod

3шт.

9

72954C1

SET

connecting rod bearing

3шт.

10

72956C1

RING, snap

6шт.

11

74881C91

CRANKSHAFT W/PIN, Engine serial no. 518811 and below

1шт.

11

77858C91

CRANKSHAFT W/PIN, Engine serial no. 518812 and above

1шт.

13

72959C1

PIN, crankshaft, Furnished as part of 74881C91 & 77859C91

1шт.

14

72960C91

FLYWHEEL W/RING GEAR

1шт.

15

72961C1

GEAR, ring

1шт.

19

72963C1

WASHER, flywheel

1шт.

20

72964C1

KEY, crankshaft

1шт.

21

72965C1

GEAR, crankshaft

1шт.

22

74884C1

BOLT, flywheel

6шт.

23

72966C1

SLINGER, crankshaft oil

1шт.

24

72967C1

PULLEY, crankshaft, Engine serial no. 518811 and below

1шт.

24

77859C1

PULLEY, crankshaft, Engine serial no. 518812 and above

1шт.

25

72969C1

BOLT, crankshaft pulley

1шт.

26

72970C1

WASHER, tab

1шт.

27

72971C1

WASHER, crankshaft pulley

1шт.
