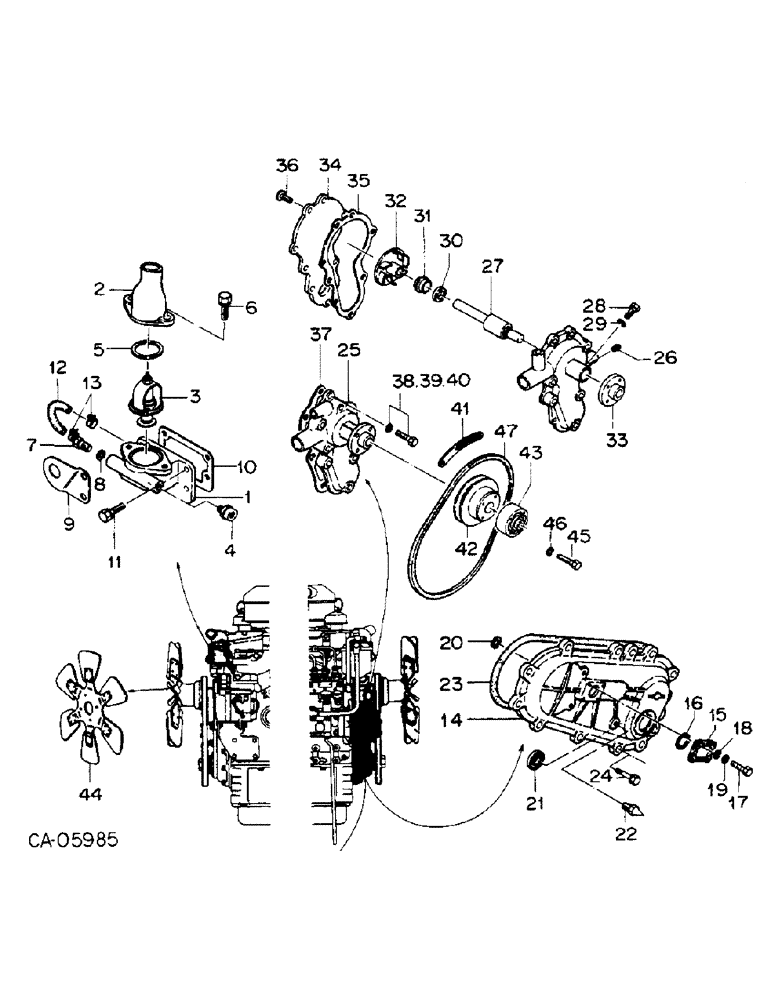

Запчасти Case IH 4140 (12-19) - TIMING GEAR AND HOUSING PUMP, ISUZU ENGINE (04) - Drive Train

1

74852C1

HOUSING, thermostat

1шт.

2

74627C1

OUTLET, water housing

1шт.

3

74628C1

THERMOSTAT

1шт.

4

74605C1

PLUG, thermostat housing

1шт.

5

74779C1

GASKET

outlet

1шт.

6

74853C1

BOLT, outlet

2шт.

7

74629C1

PLUG, thermostat housing

1шт.

8

74630C1

WASHER, sealing

1шт.

9

74854C1

HOOK, engine lifting

1шт.

10

74855C1

GASKET, thermostat housing

1шт.

11

74510C1

BOLT, thermostat housing

2шт.

11

74856C1

BOLT, thermostat housing

2шт.

12

74857C1

HOSE

Thermostat Housing

1шт.

13

74562C1

CLAMP, hose

2шт.

14

74858C1

HOUSING, timing gear

1шт.

15

74859C1

COVER, timing gear housing

1шт.

16

74860C1

GASKET, cover

1шт.

17

74861C1

BOLT, cover

2шт.

18

74862C1

WASHER

2шт.

19

74524C1

WASHER, lock

2шт.

20

74525C1

WASHER, packing

2шт.

21

74526C1

SEAL

oil

1шт.

22

74527C1

INDICATOR, timing

1шт.

23

74528C1

GASKET, gear housing

1шт.

24

74863C1

BOLT, timing gear housing

9шт.

25

74604C91

PUMP

ASSY, water, Includes ref nos. 26 thru 36

1шт.

26

74605C1

PLUG, water pump

1шт.

27

74606C1

BEARING ASSY, water pump

1шт.

28

74607C1

SCREW, set

1шт.

29

74558C1

WASHER, lock

1шт.

30

74608C1

WASHER, thrust

1шт.

31

74609C1

SEAL ASSY, water pump

1шт.

32

74610C1

IMPELLER, water pump

1шт.

33

74611C1

BRACKET

HUB, fan blade mounting

1шт.

34

74612C1

COVER, water pump

1шт.

35

74613C1

GASKET, water pump cover

1шт.

36

74614C1

SCREW

water pump cover

1шт.

37

74615C1

GASKET

water pump

1шт.

38

74616C1

BOLT, water pump mounting

1шт.

39

74617C1

BOLT, water pump mounting

4шт.

40

74864C1

BOLT, water pump mounting

1шт.

41

74865C1

BRACKET, fan belt adjusting

1шт.

42

74621C1

PULLEY

fan

1шт.

43

74866C1

SPACER, fan

1шт.

44

74619C1

FAN

ASSY, cooling

1шт.

45

74867C1

BOLT, fan mounting

4шт.

46

74558C1

WASHER, lock

4шт.

47

74622C1

BELT

Fan, Replaces 74868C1

1шт.

74640C91

PACKAGE

water pump repair, Consists of

1шт.

74606C1

BEARING

1шт.

74608C1

WASHER

1шт.

74609C1

SEAL

1шт.

74610C1

IMPELLER

1шт.

74613C1

GASKET

1шт.

74615C1

GASKET

1шт.
