Запчасти Case IH 4140 (12-13) - GASKET SETS, CHRYSLER ENGINE (04) - Drive Train

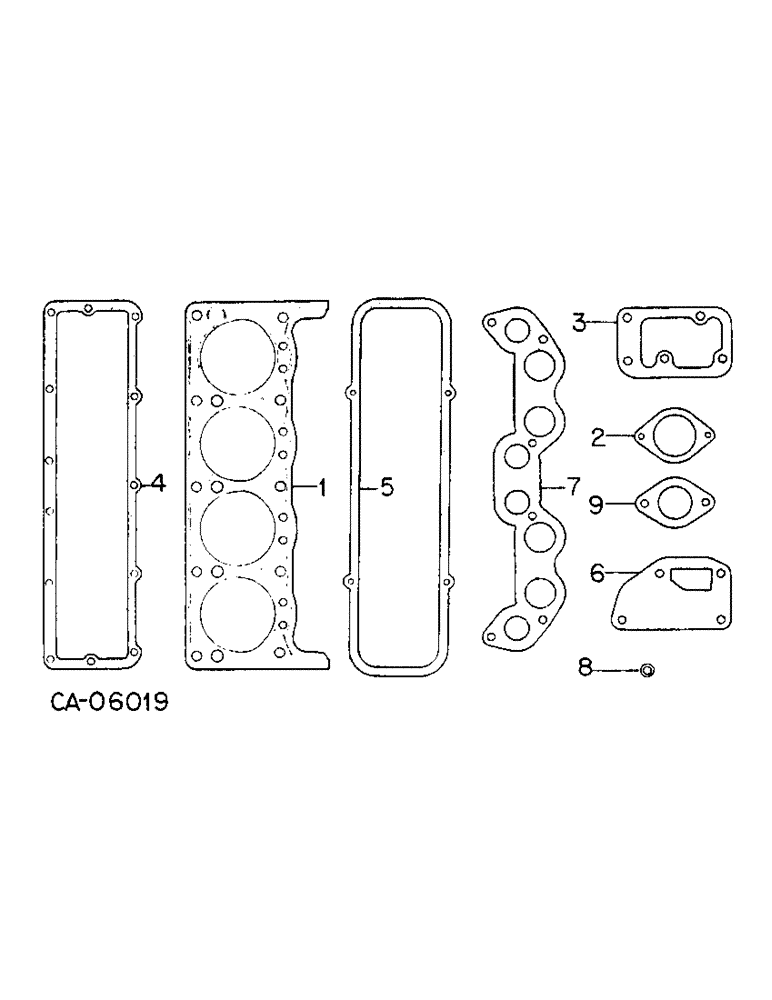

Схема запчастей Case IH 4140 - (12-13) - GASKET SETS, CHRYSLER ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

1

74979C1

GASKET

cylinder head

1шт.

2

75622C1

GASKET

water outlet pipe

1шт.

3

75624C1

GASKET

housing to cyl head

1шт.

4

75237C1

GASKET

tappet cover

1шт.

5

75257C1

GASKET

rocker cover

1шт.

6

75616C1

GASKET

water pump

1шт.

7

75587C1

GASKET

manifolds to cyl head

1шт.

8

75273C1

SEAL

valve stem

8шт.

9

75592C1

GASKET

, Serial Range: adapter-intake

1шт.

75718C91

SET

PACKAGE, top overhaul gasket

1шт.

75719C91

SET

PACKAGE, conversion gasket

1шт.

75247C1

GASKET

timing cover

1шт.

75242C1

GASKET

engine support plate

1шт.

75564C1

GASKET

filter base

1шт.

75569C1

SEAL, distributor oil

1шт.

75566C1

GASKET

distributor bracket

1шт.

75717C1

GASKET

fuel pump

1шт.

75609C1

GASKET

water pump plate

1шт.

75616C1

GASKET

water pump

1шт.

75233C91

SET

PACKAGE, oil pan gasket

1шт.

75262C1

SEAL

main bearing cap oil

2шт.

75686C91

PACKAGE

carburetor gasket

1шт.

If engine part not available from CaseIH, try Industrial Irrigation for parts. Phone: 402-463-1377. Located in Hastings, NE.

1шт.

Выбрано товаров: 23
