Запчасти Case IH 4140 (12-06) - MISCELLANEOUS, CHRYSLER ENGINE (04) - Drive Train

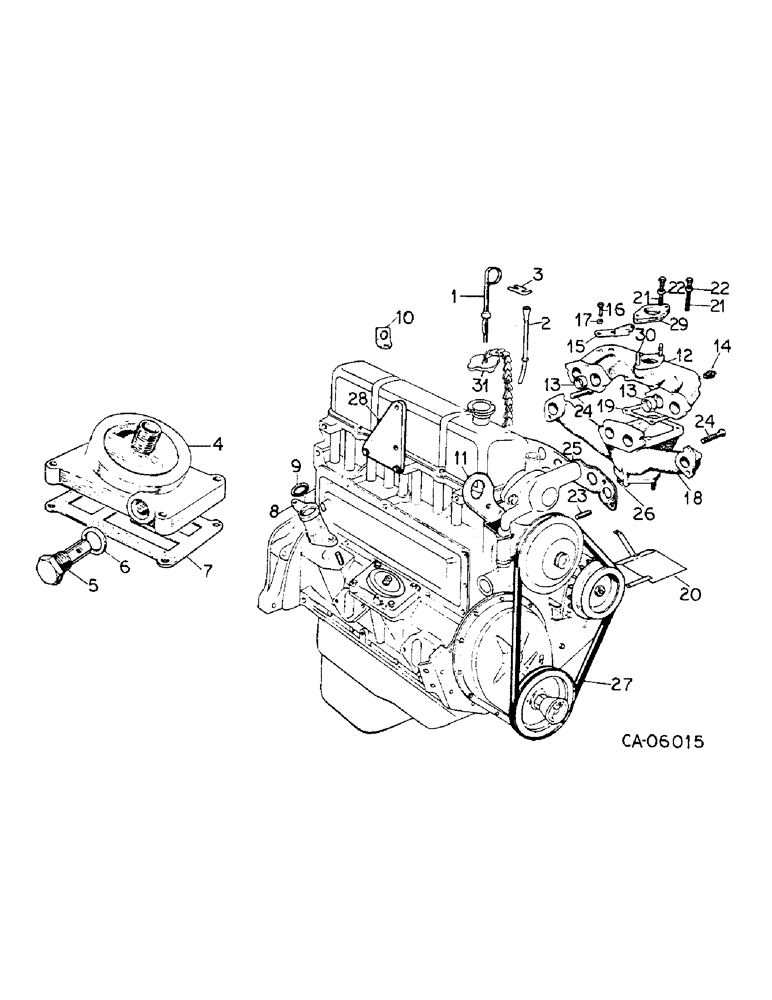

Схема запчастей Case IH 4140 - (12-06) - MISCELLANEOUS, CHRYSLER ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

1

75556C1

DIPSTICK, oil

1шт.

2

75557C1

TUBE

dipstick oil

1шт.

75559C1

PLUG, dipstick hole, sealing

1шт.

3

75558C1

CLIP, dipstick oil tube

1шт.

4

75560C1

BASE, filter

1шт.

75561C1

BOLT, filter base

4шт.

74973C1

WASHER, filter base bolt

4шт.

5

75562C1

VALVE

relief

1шт.

6

75563C1

WASHER, relief valve

1шт.

7

75564C1

GASKET

filter base

1шт.

8

75565C1

BRACKET, distributor drive

1шт.

9

75566C1

GASKET

distributor bracket

1шт.

75567C1

BOLT, distributor bracket

1шт.

75568C1

WASHER, distributor bracket

1шт.

75569C1

SEAL, distributor oil

1шт.

10

75570C1

BRACKET, lifting rear

1шт.

74997C1

NUT, lifting bracket

2шт.

75571C1

WASHER, lifting bracket

2шт.

11

75572C1

BRACKET, lifting front

1шт.

12

75573C1

MANIFOLD, intake

1шт.

13

75574C1

RING, locating

2шт.

14

75575C1

PLUG, intake manifold

1шт.

15

75576C1

BRACKET, accelerator cable

1шт.

16

75577C1

BOLT, accelerator cable bracket

2шт.

17

75578C1

WASHER, accelerator cable bracket

2шт.

18

75579C1

MANIFOLD, exhaust

1шт.

19

75580C1

GASKET, intake to exhaust manifold

1шт.

20

75581C1

SHIELD, alternator heat

1шт.

21

74998C1

BOLT, intake to exhaust manifold, long

2шт.

21

75583C1

BOLT, intake to exhaust manifold, short

2шт.

22

74973C1

WASHER, manifold bolts

4шт.

23

75584C1

STUD, manifolds to cyl head

4шт.

75586C1

NUT, manifold studs

4шт.

24

75585C1

BOLT, manifolds to cyl head

2шт.

74973C1

WASHER, manifold bolts & studs

6шт.

25

75587C1

GASKET

manifolds to cyl head

1шт.

26

75588C1

STUD, exhaust manifold

2шт.

27

75059C1

BELT

Alternator

1шт.

28

75591C1

BRACKET, ignition coil

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

5/16-NF x 3/4 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , Bracket to cyl head 5/16"

2шт.

29

75592C1

GASKET

, Serial Range: adapter-intake

1шт.

30

75593C1

STUD, carbaretor

2шт.

74973C1

WASHER, carb stud

2шт.

75614C1

NUT, carb stud

2шт.

31

75598C1

CAP

oil filler

1шт.

NSS

NOT SOLD SEPARAT

HOSE, distributor vacuum, Furnish 25 inches from bulk roll marked 427687C1

1шт.

If engine part not available from CaseIH, try Industrial Irrigation for parts. Phone: 402-463-1377. Located in Hastings, NE.

1шт.

Выбрано товаров: 48
