Запчасти Case IH 4140 (12-01) - BLOCK ASSEMBLY, CHRYSLER ENGINE (04) - Drive Train

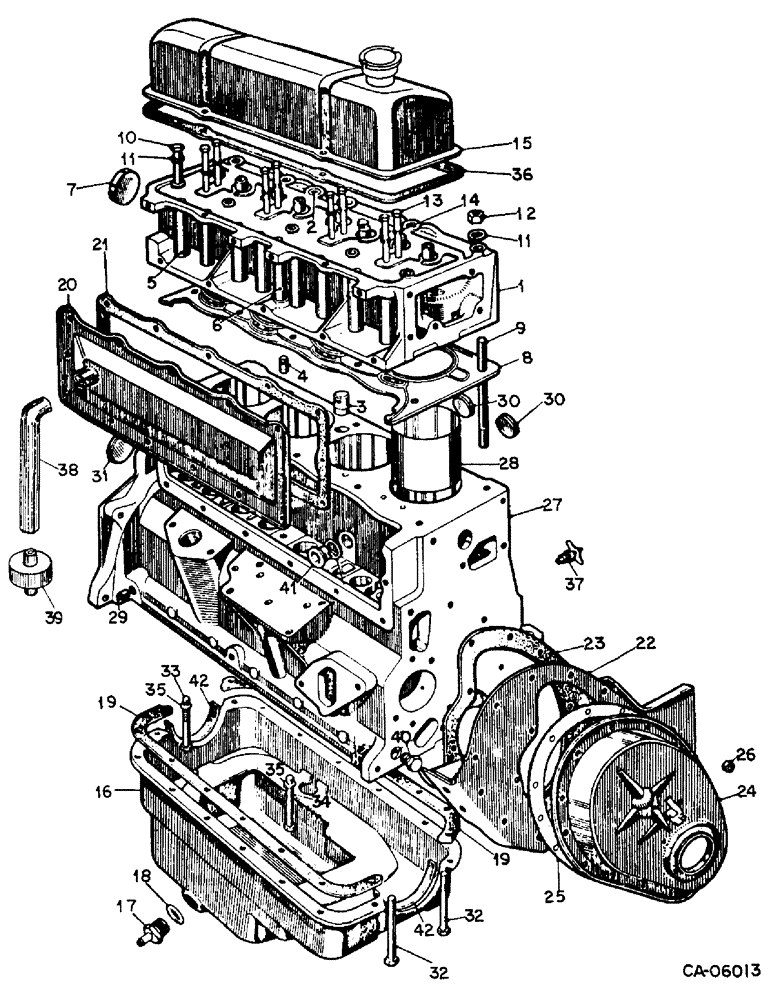

Схема запчастей Case IH 4140 - (12-01) - BLOCK ASSEMBLY, CHRYSLER ENGINE (04) - Drive Train

Артикул

Название

Примечание

Количество

77911C91

ENGINE ASSY, short block

1шт.

1

74972C1

HEAD, cylinder

1шт.

2

444698

PLUG

3/8-18 slt auto-hex-soc pipe heater connection

1шт.

3

74975C1

TUBE, water, center

1шт.

4

74976C1

TUBE, water, intermediate and rear

2шт.

5

74977C1

TUBE, push rod

8шт.

6

74977C1

TUBE, rocker oil feed

1шт.

7

74978C1

PLUG, cup

1шт.

8

74979C1

GASKET

cylinder head

1шт.

9

74994C1

STUD, cylinder head

2шт.

10

189334

SCREW,Hex, 3/8" - 24 x 4 1/2", Gr 5

BOLT, 3/8-NF x 4-1/2 type 5, cylinder head

8шт.

11

74996C1

WASHER, cylinder head bolt

10шт.

12

74997C1

NUT, cylinder head stud

2шт.

13

74998C1

BOLT, rocket arm shaft bracket

8шт.

14

74973C1

WASHER, rocker arm shaft bracket bolt

8шт.

15

74974C1

COVER, valve

1шт.

74995C1

WASHER, valve cover

4шт.

75227C1

SCREW, valve cover

4шт.

16

75228C1

PAN, engine oil

1шт.

75229C1

SCREW, engine oil pan

18шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

NSS

NOT SOLD SEPARAT

ENGINE, oil pan

1шт.

17

75060C1

ADAPTER, oil drain

1шт.

75231C1

PLUG, oil drain

1шт.

18

75232C1

WASHER, oil drain plug

1шт.

19

75233C91

SET

GASKET SET, oil pan

1шт.

20

75234C1

COVER, tappet

1шт.

75577C1

SCREW, tappet cover

13шт.

75578C1

WASHER, tappet cover

13шт.

21

75237C1

GASKET

tappet cover

1шт.

22

75238C1

PLATE, engine support front

1шт.

75239C1

SCREW, engine support plate

3шт.

75240C1

SCREW, engine support plate

3шт.

75241C1

WASHER, engine support plate

3шт.

23

75242C1

GASKET

engine support plate

1шт.

24

75243C1

COVER, timing

1шт.

75244C1

SCREW, timing cover

8шт.

75245C1

SCREW, timing cover

1шт.

75246C1

WASHER, timing cover screw

9шт.

25

75247C1

GASKET

timing cover

1шт.

26

75248C1

COLLAR, timing cover screw

1шт.

27

75249C1

BLOCK, cylinder

1шт.

28

75250C1

SLEEVE, cylinder

4шт.

29

444688

PLUG

1/8-27 stl auto-hex-soc pipe, oil passage

4шт.

30

75252C1

CUP, sealing, side

4шт.

75254C1

CUP, sealing, side

1шт.

31

75253C1

CUP, sealing, rear

1шт.

32

75255C1

BOLT, front main bearing cap

2шт.

33

80306R1

BOLT,Hex, 7/16" - 20 x 2 1/2", Gr 8

7/16-NF x 2-1/2 phc type 8, center and rear bearing cap

4шт.

34

362442R1

BOLT,Hex, 7/16" - 20 x 2", Gr 8

7/16-NF x 2 pln type 8, intermediate main bearing cap

4шт.

35

75256C1

WASHER, main bearing cap bolt

10шт.

36

75257C1

GASKET

valve cover

1шт.

37

103647

VALVE

1/4 NPT drain engine coolant

1шт.

38

75258C1

HOSE, Serial Range: breather-block

1шт.

995218R1

CLAMP

no. 12, breather hose

1шт.

39

75259C1

BREATHER

crankcase

1шт.

40

75260C1

PLUG, oil passage, front

1шт.

41

75261C1

PLUG, port hole

1шт.

75251C1

WASHER, copper

2шт.

42

75262C1

SEAL

main bearing cap oil

2шт.

Выбрано товаров: 60
