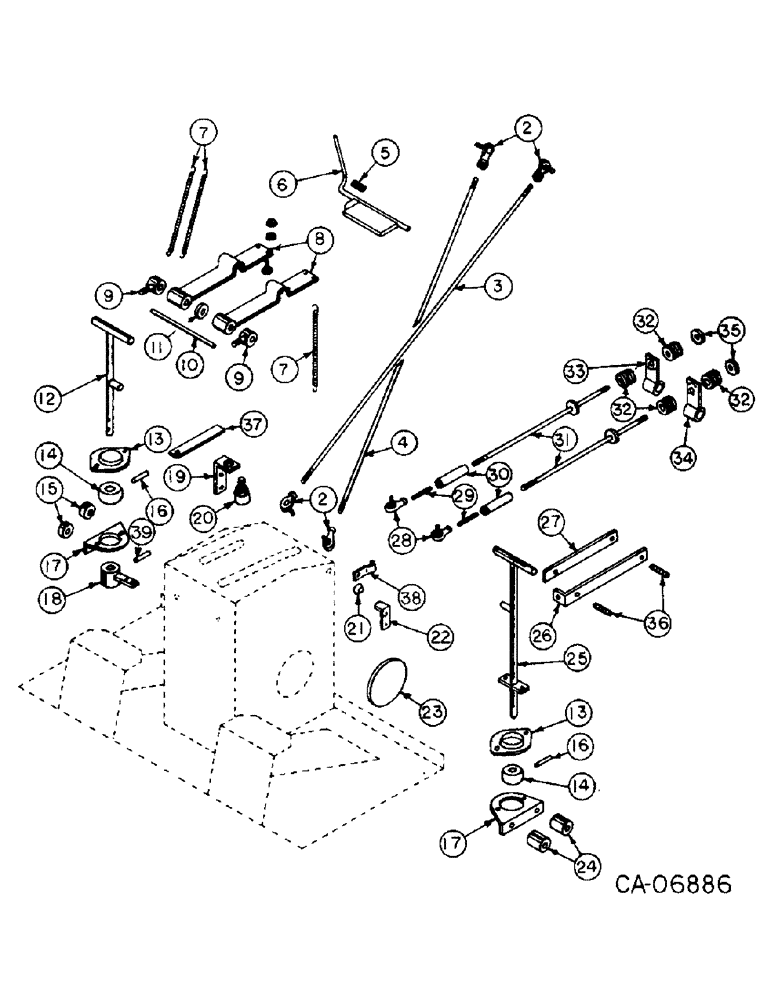

Запчасти Case IH 4140 (07-05) - HYDRAULIC & HYDROSTATIC CONTROLS, LOADER S/N 301 & ABOVE - GAS, LOADER S/N 307 & ABOVE - DIESEL (04) - Drive Train

2

72212C1

END ASSY.

END, rod

4шт.

232-4615

LOCK NUT,5/16"-24, GC

NUT, 5-16-NF phc p/t lock type 5

4шт.

3

75023C1

ROD, tilt

1шт.

120368

NUT,5/16"-24, G5

2шт.

4

75022C1

ROD, lift

1шт.

120368

NUT,5/16"-24, G5

2шт.

5

76472C1

SPRING

tension, short

1шт.

6

76468C1

LEVER, control lock

1шт.

7

77804C1

SPRING, tension

3шт.

8

76471C1

ARM, control lock

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

9

76466C1

PIVOT, lock arm

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

10

76467C1

ROD, lock arm pivot

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

11

127530H1

SPACER

lock arm

1шт.

12

77805C1

LEVER, hyd control

1шт.

72210C1

GRIP

handle

2шт.

13

77806C1

RETAINER

2шт.

14

77807C1

BUSHING

BALL, pivot

2шт.

15

73907C1

BUSHING

2шт.

16

19534R1

PIN,1/4" x 1 1/2", Coiled

2шт.

17

77808C1

SUPPORT

ball

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1 crg type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

18

77809C1

ARM, pivot

1шт.

19

72672C1

SUPPORT, neutral start switch

1шт.

598796R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT, 1/4 x 1 crg type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

20

NSS

NOT SOLD SEPARAT

SWITCH, neutral start, Serial Range: Refer-electrical

1шт.

21

77536C1

NUT, cap

1шт.

22

72031C1

SUPPORT, choke, lever, Gas only

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

4шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

23

77810C1

COVER

2шт.

24

154397C1

SPACER,5/8" Tube x 1 1/4"

3/8 x 1.250

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

25

77811C1

LEVER, drive control

1шт.

72210C1

GRIP

handle

2шт.

26

72024C1

BAR, friction, mounted

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

27

72023C1

BAR, friction, loose

1шт.

180044

SPRING

1/4 x 2 type 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

28

72213C1

END

3/8 rod

2шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 phc p/t lock type 5

2шт.

29

77812C1

STUD

2шт.

30

77813C1

UNION

adjusting

2шт.

31

77927C1

ROD

drive

2шт.

120369

NUT,3/8"-24, G5

2шт.

32

138541C1

SET

PACKAGE, spring, Contains four springs

1шт.

33

77676C1

LEVER

drive, RH

1шт.

475642R1

KEY,3/16" Sq x 11/16", Par

3/16 x 11/16 sq parallel

1шт.

78285C1

SCREW,5/16" x 3/4"

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

34

77677C1

LEVER

drive, LH

1шт.

475642R1

KEY,3/16" Sq x 11/16", Par

3/16 x 11/16 sq parallel

1шт.

78285C1

SCREW,5/16" x 3/4"

1шт.

20893R1

WASHER

.344 x 1.000 x .105

1шт.

35

72166C1

THRUST WASHER

thrust

2шт.

36

77817C1

SPRING, compression

2шт.

37

77738C1

BAR, actuator

1шт.

38

72032C1

TAB, choke cable retainer, Gas only

1шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 phc p/t lock type 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

39

617057R1

PIN,1/4" x 1", Coiled

1шт.
