Запчасти Case IH 4130 (10-09) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

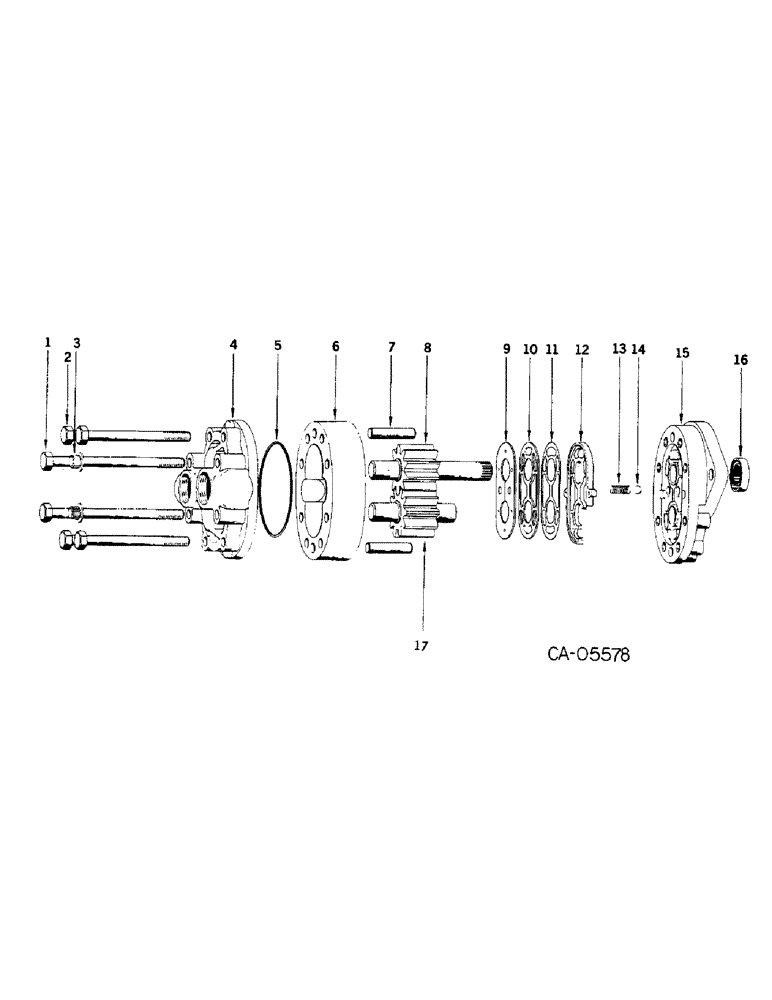

Схема запчастей Case IH 4130 - (10-09) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS
10
5
6
9
13
3
4
8
12
11
1
15
7
14
17
16
2

Артикул

Название

Примечание

Количество

73330C91

PUMP ASSY, hydraulic

1шт.

827487C1

SEAL KIT

KIT, pump service, Replaces 73331C91, Includes ref nos 5, 9 thru 14 and 16

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT, tie, order pump assy

2шт.

2

NSS

NOT SOLD SEPARAT

BOLT, tie, order pump assy

4шт.

3

NSS

NOT SOLD SEPARAT

BOLT, tie, order pump assy

2шт.

4

NSS

NOT SOLD SEPARAT

PLATE ASSY, back, order pump assy

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING, order kit

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, order pump assy

1шт.

7

NSS

NOT SOLD SEPARAT

PIN, dowel, order pump assy

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR ASSY, drive, order pump assy

1шт.

9

NSS

NOT SOLD SEPARAT

DIAPHRAGM, order kit

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET, back-up, order kit

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET, protector, order kit

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL, diaphragm, order kit

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING, order kit

1шт.

14

17007R1

BALL

steel

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE ASSY, front, order pump assy

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL, shaft, order kit

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR ASSY, idler, order pump assy

1шт.

Выбрано товаров: 19
