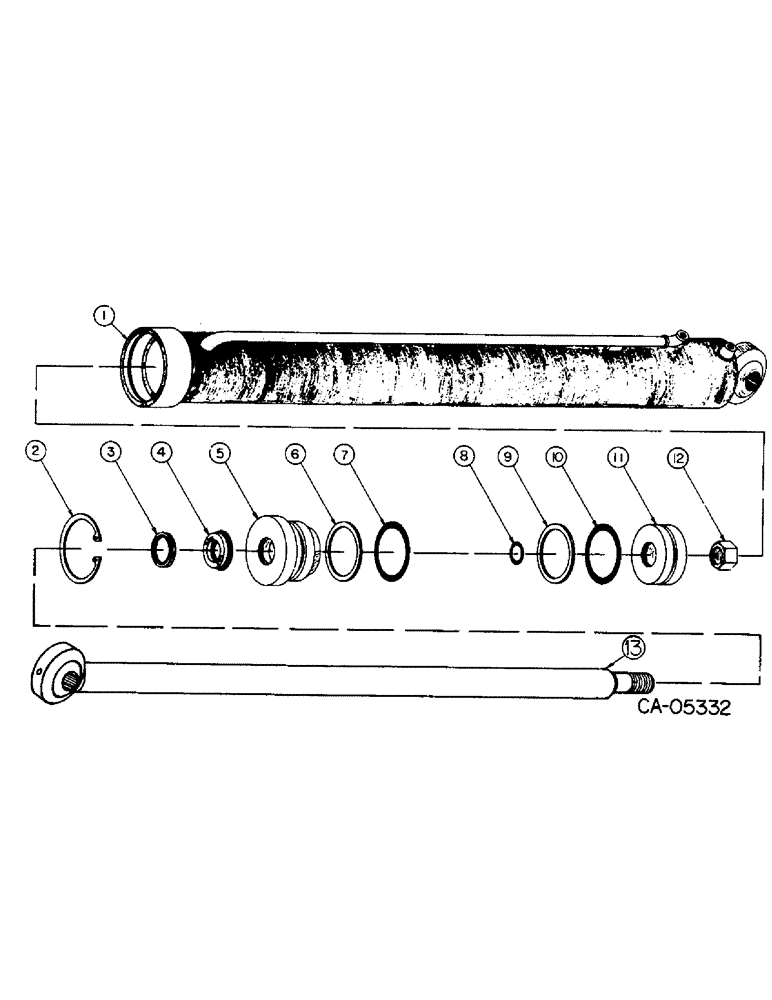

Запчасти Case IH 4130 (10-07) - HYDRAULICS, LIFT CYLINDER (07) - HYDRAULICS

73333C91

CYLINDER ASSY, lift

2шт.

72394C91

PACKAGE

o-ring & seal service

2шт.

1

73402C1

CYLINDER

BODY, cylinder

2шт.

2

562025R1

CIRCLIP

RING, retaining

2шт.

3

72310C1

WIPER SEAL

WIPER, rod

2шт.

4

72311C1

SEAL

rod

2шт.

5

72927C91

KIT

BUSHING, packing

2шт.

6

25020R1

O-RING,Rect, 1.75" ID x 2" OD, Cl 5

SEAL, 1.734 x 2.002 x .13 backup

2шт.

7

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1.734 x 2.012 x .139

2шт.

8

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

2шт.

9

72307C1

SEAL

piston

2шт.

10

21609R1

O-RING, 1.549 x 1.755 x .103

2шт.

11

72191C1

PISTON

2шт.

12

19638R1

LOCK NUT,3/4"-16, GB

NUT, 3/4-NF p/t lock type 5

2шт.

13

73410C1

ROD

cylinder

2шт.
