Запчасти Case IH 4130 (10-04) - HYDRAULICS, AUX HYD VALVE & FRT MOUNT (07) - HYDRAULICS

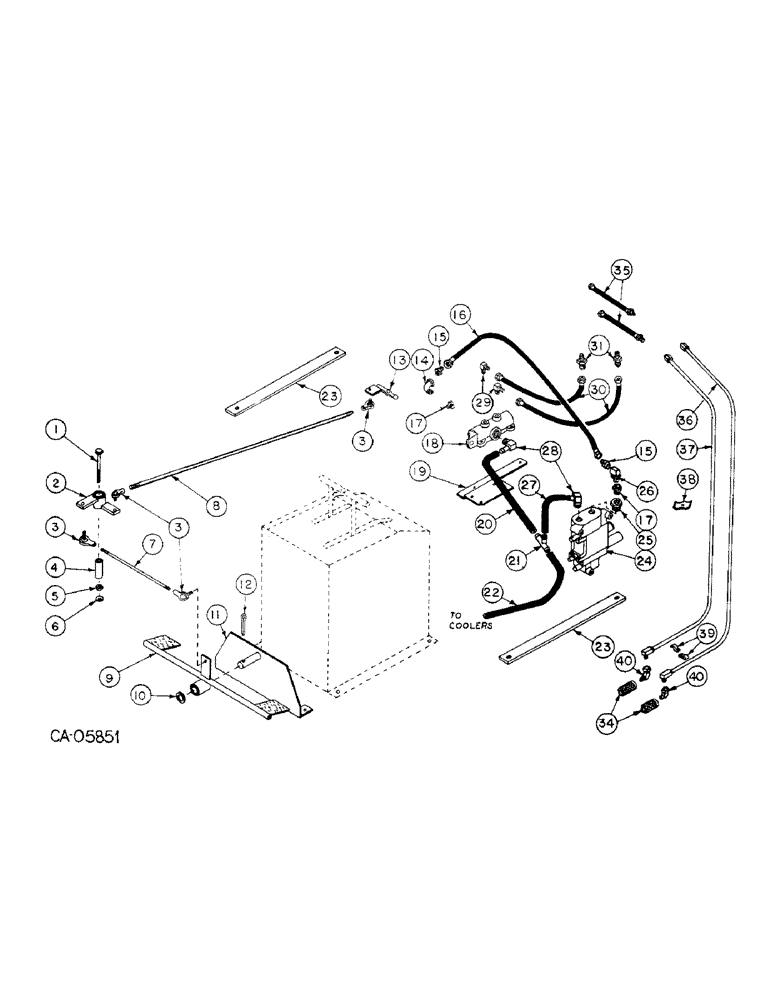

Схема запчастей Case IH 4130 - (10-04) - HYDRAULICS, AUX HYD VALVE & FRT MOUNT (07) - HYDRAULICS
31
30
5
17
11
19
13
18
12
14
34
4
9
40
36
35
28
39
3
27
37
23
29
25
24
26
16
3
7
15
40
22
10
21
6
17
2
38
1
15
3
8
20
23

Артикул

Название

Примечание

Количество

1

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2 type 5

1шт.

2

73391C1

ARM, foot pedal, pivot

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

3

72212C1

END ASSY.

END, 5/16 rod

4шт.

9413936

NUT,5/16"-24, GA

5/16-NF phc p/t lock type 1

4шт.

4

73273C1

BUSHING, pivot

1шт.

5

120377

NUT,3/8" - 16, Gr 5

1шт.

6

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

7

73392C1

STUD, front control, rod

1шт.

120368

NUT,5/16"-24, G5

2шт.

8

202702H1

ROD, side control

1шт.

120368

NUT,5/16"-24, G5

2шт.

9

73394C1

PEDAL, foot

1шт.

10

73395C1

BUSHING

1шт.

11

73396C1

PIVOT, foot pedal

1шт.

12

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

13

72484C1

HANDLE

1шт.

72485C1

PIN W/RETAINER

1шт.

14

73397C1

ELBOW

1шт.

15

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 3/4-16 37 deg hyd tube

2шт.

16

73401C1

HOSE ASSY, Serial Range: valve-valve

1шт.

17

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

adapter, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

2шт.

18

72180C91

VALVE ASSY, auxiliary control, Refer to auxiliary valve for list of components

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

19

73379C1

PLATE, valve mount

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

2шт.

20

NSS

NOT SOLD SEPARAT

HOSE, auxiliary valve to tee, Use 12 inches from bulk roll marked 526602R1

1шт.

995218R1

CLAMP

no. 12 hose

2шт.

21

73499C1

TEE, 1/2 in. beaded

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE, tee oil cooler, Use 36 inches from bulk roll marked 526602R1

1шт.

23

73466C1

ROD, seat riser, bar

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

24

73342C91

VALVE ASSY, control, Refer to control valve for list of components

1шт.

25

73343C91

KIT, power beyond conversion sleeve

1шт.

26

73465C1

ELBOW

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE, tee to M.C.V., Use 4 inches from bulk roll marked 526602R1

1шт.

995218R1

CLAMP

no. 12 hose

2шт.

28

73496C1

ELBOW, beaded

2шт.

29

9402865

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

3/8-18 37 deg hyd flared tube

2шт.

30

73400C1

HOSE

ASSY, Serial Range: valve-bulkhead

2шт.

31

22336R1

UNION, 3/4-16 37 deg flared tube

2шт.

34

72299C1

COUPLING, female

2шт.

35

73352C1

HOSE ASSY, bulk, Serial Range: head-tube

2шт.

36

73388C1

TUBING ASSY, inside

1шт.

37

73389C1

TUBE ASSY, outside 1" OD, 67, 9-1" Length

1шт.

38

72652C1

CLAMP, tubing

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

39

120875

CLAMP, conduit hose

2шт.

453869C1

SCREW, 1/4-14 x 7/8 cad c/r s/d tap

2шт.

40

347522R91

ELBOW UNION

ELBOW

2шт.

Выбрано товаров: 52
