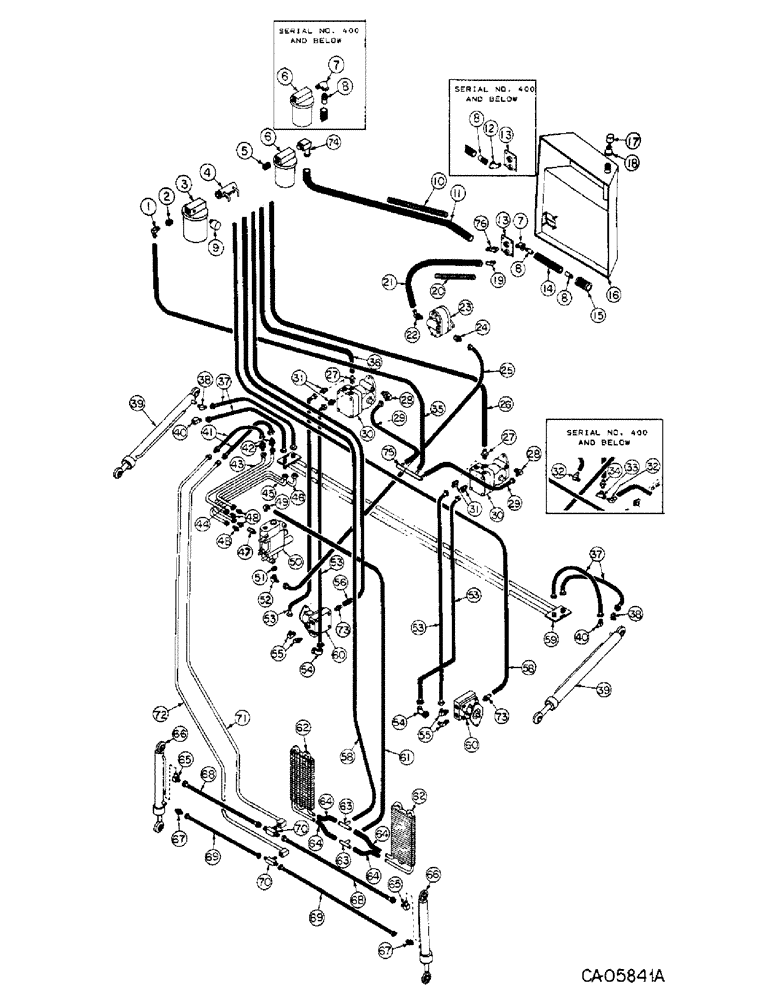

Запчасти Case IH 4130 (10-01) - HYDRAULICS, HYD. & HYDROSTATIC SYSTEM (07) - HYDRAULICS

1

194201H1

ELBOW,90 Degree, 1" Hose x 1" NPTF Beaded

1шт.

2

144065

ADAPTER,1 1/4" NPT Male x 1" NPT Fem

BUSHING, 1-1/4-1 reducing

1шт.

3

72155C1

HEAD

filter

1шт.

73320C1

ELEMENT

hyd filter - 10 micron

1шт.

69615C1

OIL SEAL

RING, filter element

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

73486C1

MANIFOLD, return

1шт.

5

73488C1

NIPPLE, 3/4 pipe - thd one end

1шт.

6

76396C1

HEAD, hyd filter

1шт.

73321C1

ELEMENT

hyd filter - 25 micron

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

141621

ELBOW,90 Degree, 3/4" NPT Street

3/4 90 deg pipe

1шт.

8

190723

LUBE NIPPLE,Nipple, 3/4" NPT x 2 1/2

NIPPLE, 3/4 x 2-1/2 pipe

1шт.

9

75825C1

SWITCH

sender

1шт.

10

73323C1

SPRING

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE, filter reservoir, Use 21-1/2 inches of bulk hose, Part no. for one ft., 364361C1

1шт.

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, #20 hose

2шт.

12

140798

ELBOW,45 Degree, 3/4" NPT Street

3/4 45 deg pipe, loader serial no. 400 & below

1шт.

13

73324C1

COVER, reservoir

1шт.

72164C1

GASKET

cover

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

NSS

NOT SOLD SEPARAT

HOSE, sump strainer, Use 7 inches of bulk hose, Part no. for one ft., 364361C1

1шт.

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, #20 hose

2шт.

15

73326C1

FILTER

sump

1шт.

16

73247C1

TANK & GRILLE, rear oil, Serial Range: Refer-superstructure

1шт.

17

72220C1

VALVE

breather

1шт.

18

189366

COUPLING, 1 x 3/16 reducing pipe

1шт.

19

73327C1

ELBOW

1шт.

20

73328C1

SPRING

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE, tank to lift pump, Use 40 inches from bulk roll marked 200598C1

1шт.

995218R1

CLAMP

#12 hose

2шт.

22

73329C1

ELBOW

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

.924 x .116

1шт.

23

73330C91

PUMP ASSY, hydraulic, Refer to hydraulic pump for list of components

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 3/4-16 to 7/8-14 reducing

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.755 x .097

1шт.

25

4507818R1

HOSE ASSY, pump to control valve

1шт.

26

73487C1

HOSE, LH pump drain

1шт.

995218R1

CLAMP

#12 hose

2шт.

27

73489C1

FITTING, beaded

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .087

2шт.

28

671942R1

ELBOW

7/8-14 37 deg hyd flared tube 90 deg

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .087

2шт.

29

73490C1

HOSE ASSY, pump feed

1шт.

995218R1

CLAMP

#12 hose

2шт.

30

73332C93

PUMP

ASSY, hydrostatic, Refer to hydrostatic pump for list of components

2шт.

138292

SCREW,1/2" - 13 x 1 1/2"

1/2 x 1-1/2 pln h/shd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

31

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short swivel

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .087

4шт.

32

73491C1

ELBOW, beaded, loader serial no. 400 & below

2шт.

33

218259

SHIELD

TEE, reducing pipe - int, loader serial no. 400 & below

1шт.

34

73492C1

FITTING, beaded, loader serial no. 400 & below

1шт.

35

73493C1

HOSE, pump feed

1шт.

311164C91

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP, #20 hose

2шт.

36

73494C1

HOSE, RH pump drain

1шт.

995218R1

CLAMP

#12 hose

2шт.

37

67067C1

HOSE

ASSY, Serial Range: header-cylinder

4шт.

38

9402826

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

3/4-16 37 deg hyd flared tube 45 deg

2шт.

39

73333C91

CYLINDER ASSY, lift, Refer to lift cylinder for list of components

2шт.

40

73428C1

ELBOW

2шт.

41

73352C1

HOSE ASSY

2шт.

42

22336R1

UNION, 3/4-16 37 deg hyd flared tube bulkhead

2шт.

43

73337C1

TUBE ASSY, valve to manifold 0.3" OD, 31.375" Length

1шт.

44

73338C1

TUBE ASSY, valve to manifold 0.5" OD, 32.625" Length

1шт.

45

73339C1

TUBE ASSY, valve to cylinder 31.75" Length

1шт.

46

73340C1

TUBE ASSY, valve to cylinder 0.5" OD, 32.625" Length

1шт.

72117C1

SUPPORT, hose, clamp

2шт.

73341C1

STRIP, foam

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

47

73495C1

VALVE, restrictor

1шт.

48

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 3/4-16 37 deg hyd flared tube reducer

4шт.

49

73496C1

ELBOW, beaded

1шт.

50

73342C91

VALVE ASSY, control, Refer to control valve for list of components

1шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

51

217-45

REDUCER,3/4" - 14 NPTF x 1/2" - 18 Fem NPTF

bushing, pipe 3/4"-14 NPTF x 1/2"-18 Fem NPTF

1шт.

52

9402865

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

3/8-18 37 deg hyd flared tube 90 deg

1шт.

53

73344C1

HOSE

ASSY, pump to motor, Replaces hose assy 73345C1 and 73346C1, On orders for 73345C1 or 73346C1 also furnish elbow 9410281

4шт.

54

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

55

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 37 deg flared tube ext pipe thd 90 deg

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .087

4шт.

56

NSS

NOT SOLD SEPARAT

HOSE, RH motor drain, Use 41 inches from bulk roll marked 526602R1

1шт.

995218R1

CLAMP

#12 hose

2шт.

58

NSS

NOT SOLD SEPARAT

HOSE, low pressure, Use 55 inches from bulk roll marked 526602R1

1шт.

995218R1

CLAMP

#12 hose

4шт.

59

73335C1

TUBE, cross-over, manifold

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

60

73347C91

MOTOR ASSY, hydrostatic, Refer to hydrostatic motor for list of components

2шт.

73305C1

GASKET

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

61

NSS

NOT SOLD SEPARAT

HOSE, oil cooler feed, Use 36 inches from bulk roll marked 526602R1

1шт.

995218R1

CLAMP

2шт.

62

73497C1

COOLER

hyd oil

2шт.

73498C1

BAR, retainer

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

63

73499C1

TEE, beaded

2шт.

64

NSS

NOT SOLD SEPARAT

HOSE, low pressure, Use 3 inches from bulk roll marked 526602R1

1шт.

995218R1

CLAMP

#12 hose

8шт.

65

9402904

ELBOW, 3/4-16 37 deg hyd flared tube

2шт.

66

73356C91

CYLINDER

ASSY, tilt, Refer to cylinder for list of components

2шт.

67

556656R1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 3/4-16 37 deg hyd flared tube

2шт.

68

73357C1

HOSE

ASSY, Serial Range: cyl-cyl

2шт.

69

73358C1

HOSE

ASSY, Serial Range: cyl-cyl

2шт.

70

9403021

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Br

3/4-16 37 deg hyd flared tube

2шт.

71

73354C1

TUBE,1" OD, 69, 13-7" Length

ASSY, tilt down

1шт.

72

73355C1

TUBE,1" OD, 69-3" Length

ASSY, tilt up

1шт.

72652C1

CLAMP, tubing

4шт.

120875

CLAMP, hose

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

73

73657C1

FITTING, beaded

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .087

2шт.

74

670517C2

SPARE PART

ELBOW, 90 deg beaded

1шт.

75

75806C1

MANIFOLD, hydro pump feed

1шт.

76

75118C1

ELBOW, 45 deg beaded

1шт.

75722C1

FITTING, pressure tap

1шт.

75721C1

HOSE ASSY, pressure tap

1шт.

105411

CAP,1/4" NPT

1/4 pipe

1шт.
