Запчасти Case IH 4130 (08-4) - ELECTRICAL, STARTING MOTOR PARTS (06) - ELECTRICAL

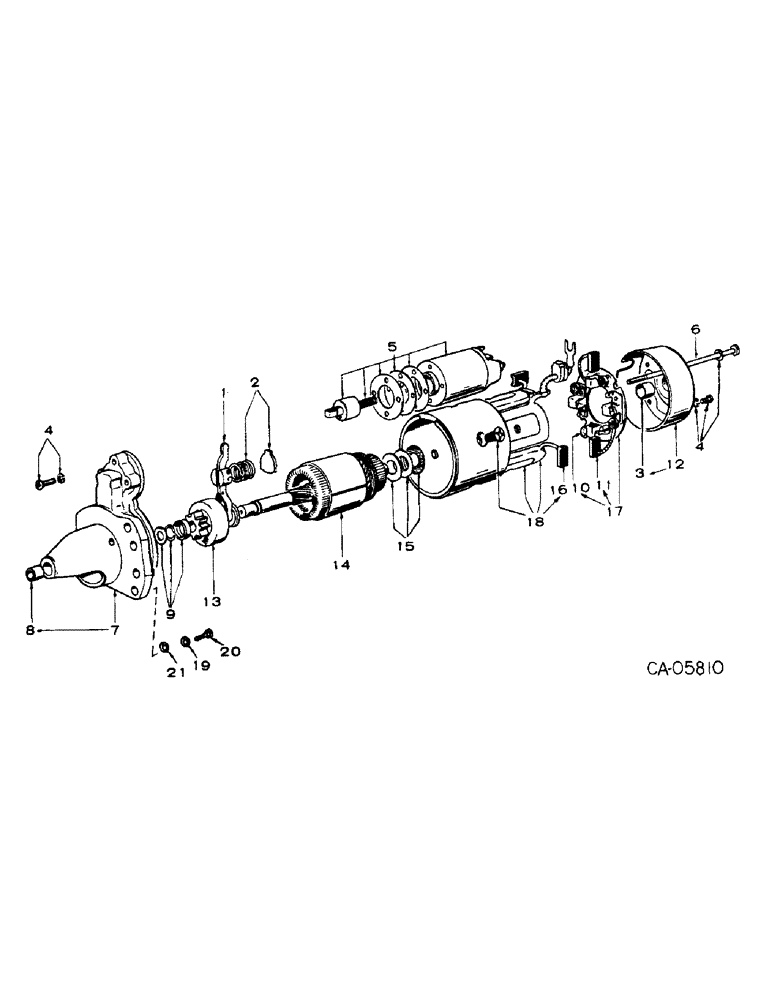

Схема запчастей Case IH 4130 - (08-4) - ELECTRICAL, STARTING MOTOR PARTS (06) - ELECTRICAL
8
3
5
18
2
4
15
12
20
17
19
7
10
21
9
1
14
6
16
11
13
4

Артикул

Название

Примечание

Количество

74264C91

MOTOR, ELECTRIC

MOTOR, starting

1шт.

1

74265C1

FORK

LEVER, clutch

1шт.

2

74266C1

SPRING

SET, spring & plate

1шт.

3

74267C1

BEARING

rear sleeve

1шт.

4

74268C1

SET, screw

1шт.

5

74269C1

SWITCH

ASSY, clutch solenoid

1шт.

6

74270C1

BOLT

machine through

2шт.

7

74271C91

FUNNEL

BRACKET ASY, front starter

1шт.

8

74272C1

BALL BEARING

front sleeve

1шт.

9

74273C1

STOP

SET, pinion retaining stop

1шт.

10

74274C1

SPRING, helical brush compression

4шт.

11

74275C1

BRUSH, COMMUTATOR

BRUSH, negative starter

2шт.

12

74276C91

BRACKET ASSY, rear

1шт.

13

74277C1

CLUTCH

pinion gear

1шт.

14

74278C1

ARM ASSY.

ARMATURE

1шт.

15

74279C1

WASHER

SET, insulator washer

1шт.

16

74280C1

BRUSH, COMMUTATOR

BRUSH, positive

2шт.

17

74281C91

HOLDER ASSY, brush, Includes ref. nos. 10 & 11

1шт.

18

74282C1

COIL

field

1шт.

19

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

21

74283C1

WASHER, flat

2шт.
