Запчасти Case IH 4130 (08-2) - ELECTRICAL, BREAKER BOX (06) - ELECTRICAL

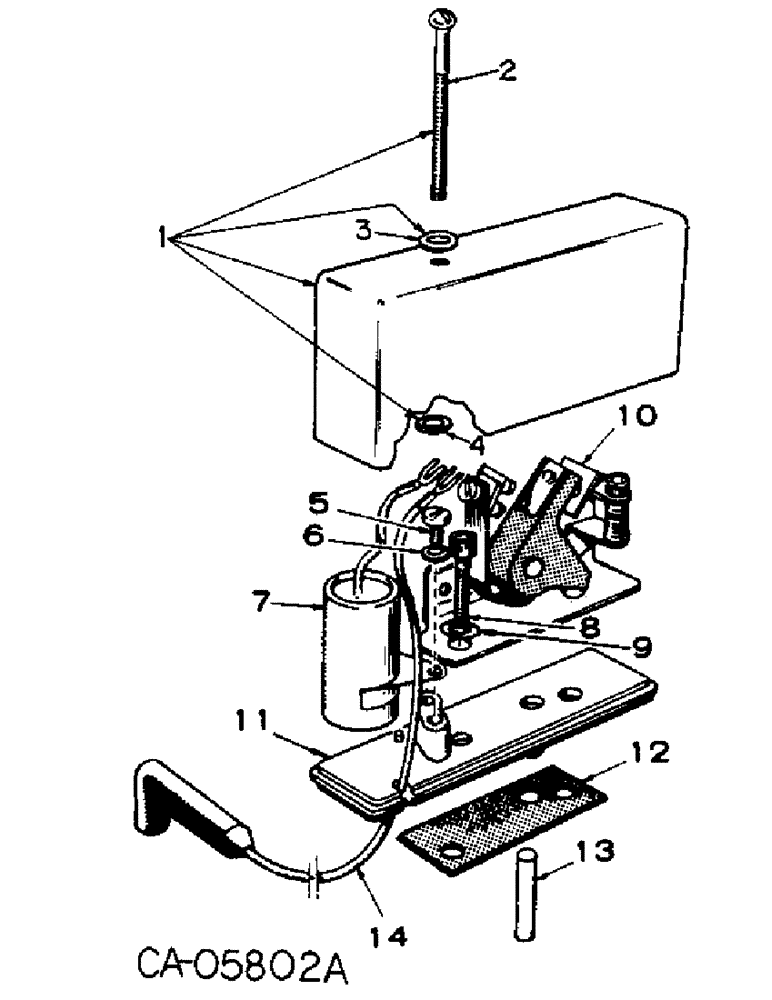

Схема запчастей Case IH 4130 - (08-2) - ELECTRICAL, BREAKER BOX (06) - ELECTRICAL
11
9
1
12
14
5
6
8
7
10
3
13
2

Артикул

Название

Примечание

Количество

74226C91

BOX

ASSY, breaker, Includes ref. nos. 1 thru 12

1шт.

1

75358C91

COVER

ASSY

1шт.

2

110508

SCREW,Sl Rnd Hd, #10 - 24 x 1 1/2"

no. 10 x 1-1/2 pln r/hds mach

1шт.

3

74227C1

WASHER

cover mtg

1шт.

4

75359C1

RETAINER, o-ring

1шт.

5

74229C1

SCREW

tapping

1шт.

6

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

7

74230C1

CONDENSER

1шт.

Part of Tune Up kit P/N 75360C91

1шт.

Part of Tune Up kit P/N 74023C91

1шт.

8

426816

SCREW,Hex Soc Hd, 1/4"-20 x 3/4"

1/4 x 3/4 h/shd cap

2шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

74231C1

BREAKER POINTS

POINT ASSY, breaker

1шт.

Part of Tune Up kit P/N 75360C91

1шт.

Part of Tune Up kit P/N 74023C91

1шт.

11

74232C1

BASE

1шт.

12

74233C1

GASKET

1шт.

13

74234C1

PLUNGER

breaker point assy

1шт.

14

74224C1

CABLE

ASSY, breaker, Serial Range: points-coil

1шт.

75360C91

KIT

tune up, Includes ref. nos. 7 & 10, Start Serial: 171

1шт.

74023C91

KIT

tune up, Includes ref. nos. 7 & 10, Serial Range: -170

1шт.

Выбрано товаров: 21
