Запчасти Case IH 4130 (08-1) - ELECTRICAL, IGNITION (06) - ELECTRICAL

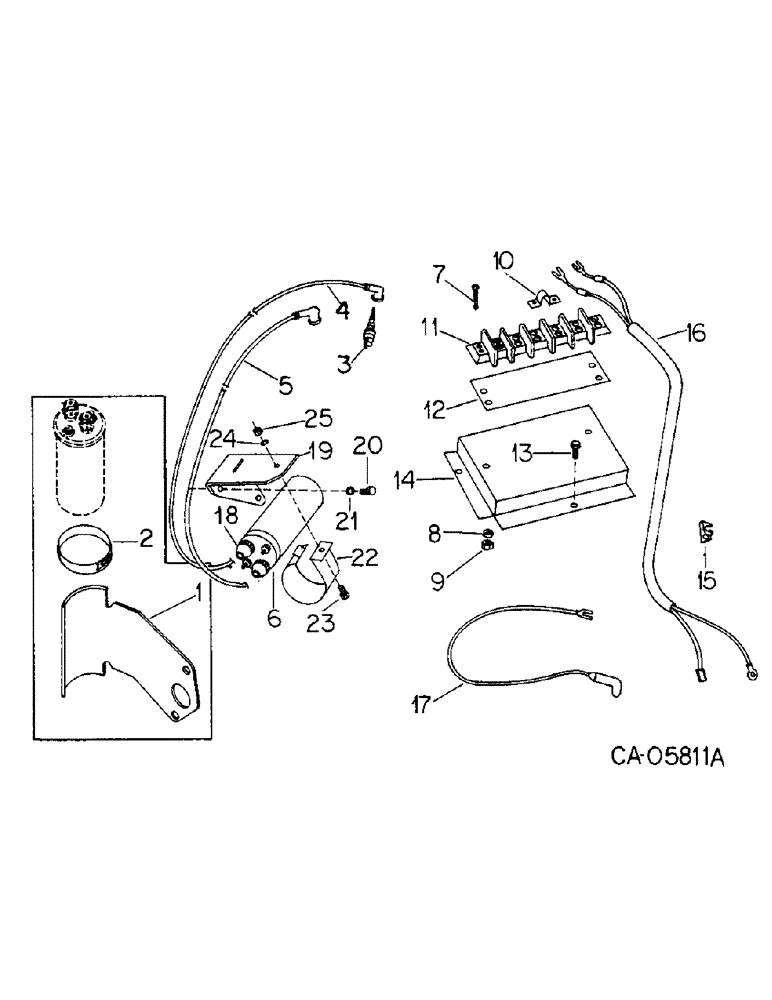

Схема запчастей Case IH 4130 - (08-1) - ELECTRICAL, IGNITION (06) - ELECTRICAL
11
23
15
7
9
8
5
6
24
12
21
17
20
10
22
16
18
25
4
19
13
14
2
1
3

Артикул

Название

Примечание

Количество

1

74211C1

BRACKET, coil mtg

1шт.

Refer to cylinder block for timing pointer for 4130 loaders with serial number 170 and below

1шт.

2

74212C1

COLLAR CLAMP

BRACKET, coil mtg

2шт.

Refer to cylinder block for timing pointer for 4130 loaders with serial number 170 and below

1шт.

3

74213C1

PLUG

SPARK PLUG

2шт.

Refer to cylinder block for timing pointer for 4130 loaders with serial number 170 and below

1шт.

3

75355C1

PLUG

SPARK PLUG, resistor, Champion RN6

2шт.

Refer to oil system for timing pointer for 4130 loaders with serial number 171 and above.

1шт.

4

74214C1

CABLE

spark plug, LH

1шт.

Refer to cylinder block for timing pointer for 4130 loaders with serial number 170 and below

1шт.

4

75356C1

CABLE

spark plug, LH

1шт.

Refer to oil system for timing pointer for 4130 loaders with serial number 171 and above.

1шт.

5

74215C1

CABLE

spark plug, RH

1шт.

Refer to cylinder block for timing pointer for 4130 loaders with serial number 170 and below

1шт.

5

75356C1

CABLE

spark plug, RH

1шт.

Refer to oil system for timing pointer for 4130 loaders with serial number 171 and above.

1шт.

6

74216C1

COIL

ignition, Includes ref. no. 18

1шт.

7

159658

SCREW,Cross Pan Hd, #8 - 32 x 3/4"

no 8 x 5/8 znp p/hd cr mach

2шт.

8

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

9

120622

NUT,#8-32

2шт.

10

74217C1

CLIP, terminal jumper

1шт.

11

74218C1

BLOCK

terminal

1шт.

12

74219C1

STRIP, terminal marker

1шт.

13

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

1шт.

14

74221C1

BRACKET, terminal block

1шт.

15

74222C1

CLIP, cable

1шт.

16

74223C1

HARNESS ASSY, wiring

1шт.

17

74224C1

CABLE

ASSY, Serial Range: block-coil

1шт.

18

74225C1

CAP

ignition coil

2шт.

19

75330C1

BRACKET, coil mtg

1шт.

Refer to oil system for timing pointer for 4130 loaders with serial number 171 and above.

1шт.

20

455858

ANGLE BAR

SCREW, no. 10 x 1/2 phc h/hd mach

2шт.

Refer to oil system for timing pointer for 4130 loaders with serial number 171 and above.

1шт.

21

120391

WASHER,#10

.219 x .500 x .036

2шт.

Refer to oil system for timing pointer for 4130 loaders with serial number 171 and above.

1шт.

22

75354C1

CLAMP, coil mtg

1шт.

Refer to oil system for timing pointer for 4130 loaders with serial number 171 and above.

1шт.

23

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

1шт.

Refer to oil system for timing pointer for 4130 loaders with serial number 171 and above.

1шт.

25

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

Refer to oil system for timing pointer for 4130 loaders with serial number 171 and above.

1шт.

Выбрано товаров: 41
