Запчасти Case IH 4130 (17-1) - MOUNTED EQUIPMENT, LOADER BOOM (05) - SUPERSTRUCTURE

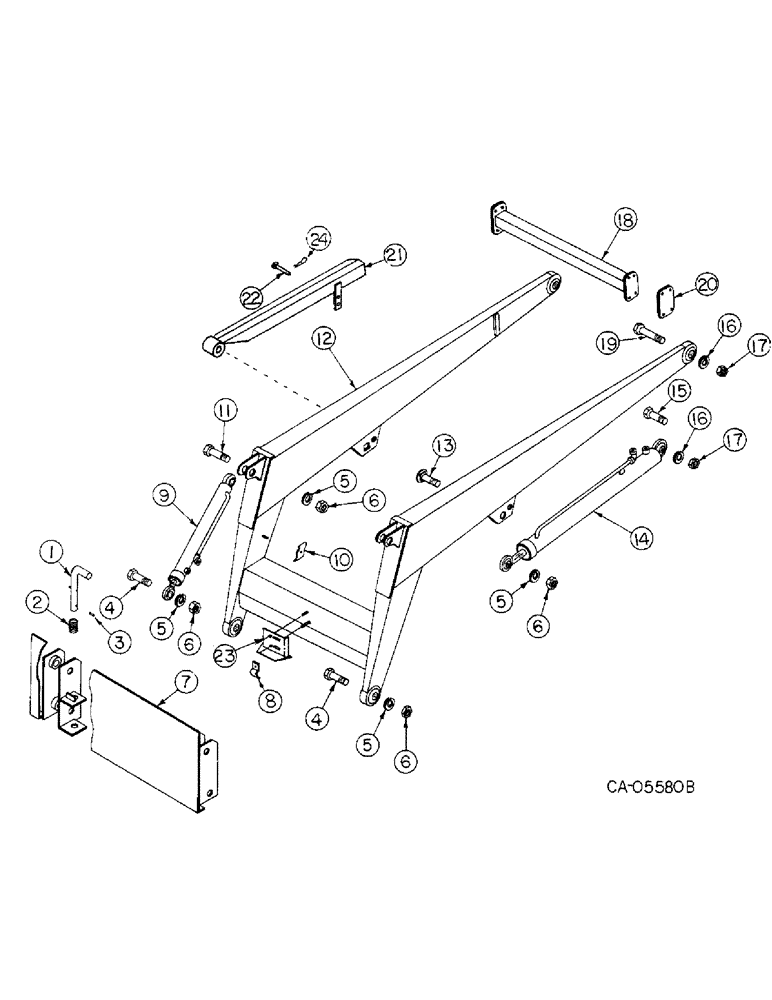

Схема запчастей Case IH 4130 - (17-1) - MOUNTED EQUIPMENT, LOADER BOOM (05) - SUPERSTRUCTURE
8
3
22
17
6
13
5
16
6
5
16
21
6
12
4
19
23
11
5
2
20
18
4
9
6
14
10
1
5
17
24
7
15

Артикул

Название

Примечание

Количество

1

73210C1

ROD

bucket, pin

2шт.

2

73359C1

SPRING

bucket pin

2шт.

3

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

4шт.

4

24895R1

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 8

4шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

6

25529R1

NUT,3/4"-10, G8

3/4 phc type 8

8шт.

7

73360C1

SUPPORT ASSY, easy tach, plate

1шт.

8

120875

CLAMP, hose

2шт.

9

73356C91

CYLINDER

ASSY, tilt, Refer to tilt cyl. assy for components

2шт.

10

369758R1

CLAMP

tubing

3шт.

11

24893R1

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

2шт.

12

73361C1

BOOM ASSY

1шт.

16982R91

FITTING

1/4-28 special taper drive thd

4шт.

73364C1

SHIM, crossbar retainer plate - 10 ga (Or as required)

1шт.

73365C1

SHIM, crossbar retainer plate - 16 ga (Or as required)

1шт.

13

27469R1

BOLT, 3/4 x 2-1/2 crg type 5

2шт.

14

73333C91

CYLINDER ASSY, lift, Refer to lift cyl. assy for components

2шт.

15

25998R1

BOLT,1" - 8 x 5 1/2", Gr 8

1 x 5- 1/2 phc type 8

2шт.

16

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

17

25531R1

NUT,1"-8, G8

1 phc type 8

4шт.

18

73362C1

ARM, crossbar

1шт.

19

26720R1

BOLT,Hex, 1" - 8 x 5", Gr 8

1 x 5 phd type 8

2шт.

20

73363C1

SUPPORT, crossbar retainer, plate

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

21

73367C91

PACKAGE, cylinder lockout bracket

1шт.

72533C1

DECAL

PRODUCT GRAPHIC, safety brace caution

1шт.

22

27874R1

HEADED PIN,3/8" x 3"

PIN, headed

1шт.

23

77282C1

SHIELD, front tubing

1шт.

120388

.438 x 1.000 x .064

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

24

586591R1

COTTER PIN

PIN, 1/8 Q.A. cotter

1шт.

Выбрано товаров: 34
