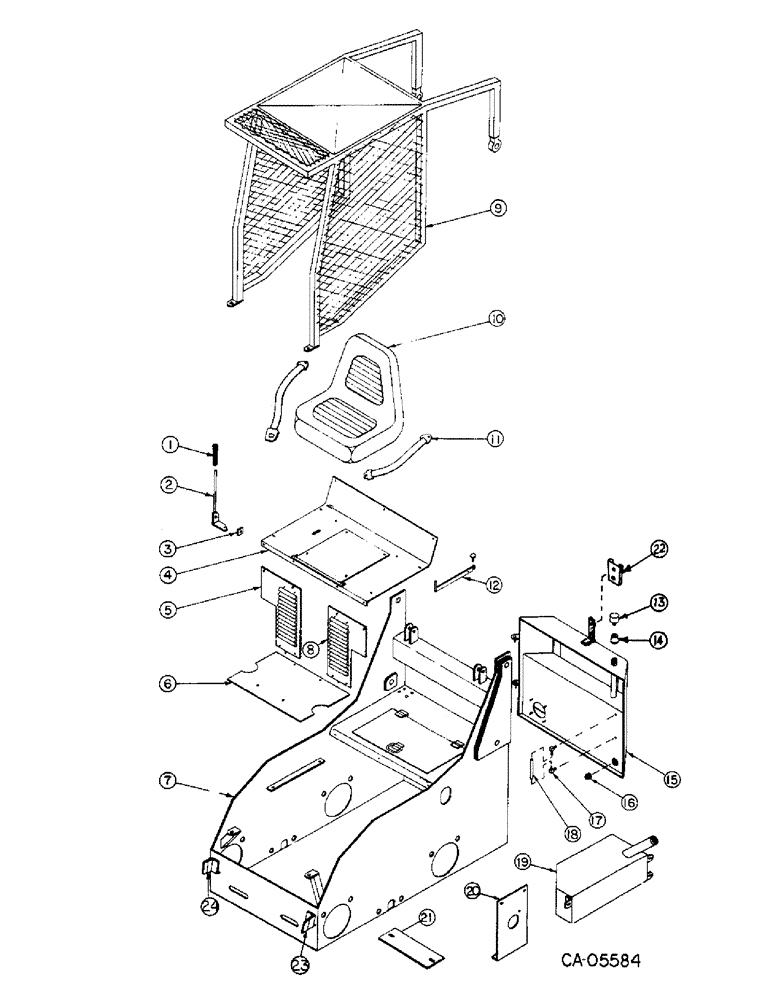

Запчасти Case IH 4130 (13-1) - SUPERSTRUCTURE (05) - SUPERSTRUCTURE

1

72125C1

GRIP, throttle lever

1шт.

2

73240C1

LEVER, throttle

1шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

1/2 x 2-1/4 type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

78242C1

BELLEVILLE WASHER

belleville

2шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

1шт.

3

72007C1

PAD, restrictor

1шт.

4

73241C1

PLATE, seat

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

7шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

78054C1

STRIP, wear pad, Start Serial: 796

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

no. 6 x 1/2 znp p/hdcr mach

2шт.

178349

LOCK WASHER,Ext-Int Tooth, #6

WASHER, no. 6 ext-int tooth lock

2шт.

134530

NUT,Hex, #6 - 32

Machine screw #6-32

2шт.

5

73242C1

PLATE, kick - RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

446363

WASHER,5/16"

.375 x .875 x .064

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

73243C1

PLATE, floor

1шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4 type 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

73318C1

FRAME, main

1шт.

8

73244C1

PLATE, kick - LH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

446363

WASHER,5/16"

.375 x .875 x .064

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

73245C1

TOP, rops, canopy

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

5/8 x 3 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

10

77991C91

SEAT ASSY.

SEAT, Replaces 72009C1

1шт.

77333C1

CUSHION

seat - back, Serial Range: -874

1шт.

77992C1

CUSHION

seat - back, Start Serial: 875

1шт.

77334C1

CUSHION, seat - bottom, Serial Range: -874

1шт.

77993C1

CUSHION

seat - bottom, Start Serial: 875

1шт.

77798C1

FRAME, seat, Serial Range: -874

1шт.

77994C1

FRAME, seat, Start Serial: 875

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

72179C1

BELT

SAFETY BELT

1шт.

86509452

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

7/16-NF x 1 type 5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16 type 5

2шт.

12

73246C1

BAR, safety lock, support, Serial Range: -250

1шт.

12

76912C1

BAR, safety lock, Start Serial: 251

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

1шт.

120376

NUT,5/16"-18, G5

2шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8 x 2 crg type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13

72220C1

VALVE

pressure - vacuum

1шт.

14

189366

COUPLING, 1 x 3/8 reducing pipe

1шт.

15

73247C1

TANK & GRILLE ASSY, rear oil

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 phc p/t lock type 5

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

16

444709

PLUG,Hex Soc, 3/4"-14

3/4-14 hex. soc. drain

1шт.

17

72221C1

ELBOW

2шт.

18

72010C1

HOSE, indicator

1шт.

19

73248C91

TANK, fuel w/cap

1шт.

72187C1

CAP

fuel tank

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

20

73249C1

PLATE, control valve mtg - bracket

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

73250C1

BAR, access, cover

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

398976R1

BRACKET

SMV emblem

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

2шт.

983017R1

NUT, 5/16 c-z whiz lock

2шт.

23

73416C1

BRACKET, boom guide - LH

1шт.

24

73417C1

BRACKET, boom guide - RH

1шт.

25555R1

WASHER,17/32" x 1 1/4" x .188", HDN

.531 x 1.250 x .188 phc hdn

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.
