Запчасти Case IH 4130 (12-12) - 75323C91 - POWER, CARBURETOR, FOR 4130 LOADERS WITH (04) - Drive Train

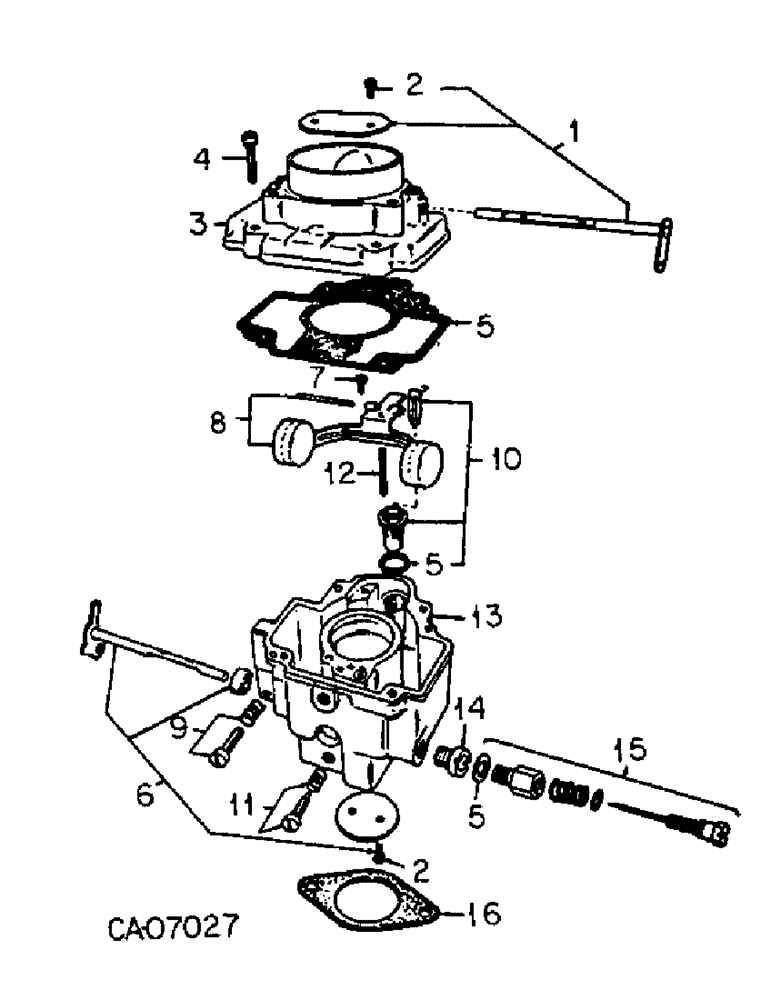

Схема запчастей Case IH 4130 - (12-12) - 75323C91 - POWER, CARBURETOR, FOR 4130 LOADERS WITH (04) - Drive Train
2
4
9
1
14
13
6
16
10
5
3
12
15
2
5
8
11
5
7

Артикул

Название

Примечание

Количество

75323C91

CARBURETOR ASSY, downdraft

1шт.

1

78628C1

SHAFT

ASSY, choke

1шт.

2

75332C1

SCREW

choke valve

2шт.

3

NSS

NOT SOLD SEPARAT

BODY, intake, Order carburetor assy

1шт.

4

78629C1

SCREW, Serial Range: body-intake

4шт.

5

138461C91

SEAL KIT

KIT, carburetor gasket

1шт.

6

78436C1

KIT, throttle shaft

1шт.

7

NSS

NOT SOLD SEPARAT

Order kit, 78630C1

1шт.

8

78630C1

FLOAT

KIT, float

1шт.

9

78663C1

KIT, idle speed adj

1шт.

10

75339C1

VALVE

& SEAT ASSY FLOAT

1шт.

11

78634C1

NEEDLE

idle

1шт.

12

NSS

NOT SOLD SEPARAT

Order kit, 78630C1

1шт.

13

NSS

NOT SOLD SEPARAT

BODY, main, Order carburetor assy

1шт.

14

78631C1

JET, power

1шт.

15

75344C91

NEEDLE

ASSY, power

1шт.

16

75324C1

GASKET

carb. mtg.

1шт.

138462C91

KIT

carburetor repair, Includes ref nos 7, 10, 11 and 15

1шт.

Выбрано товаров: 18
