Запчасти Case IH 4130 (12-10) - POWER, FUEL AND EXHAUST SYSTEM - ENGINE, FOR 4130 LOADERS WITH (04) - Drive Train

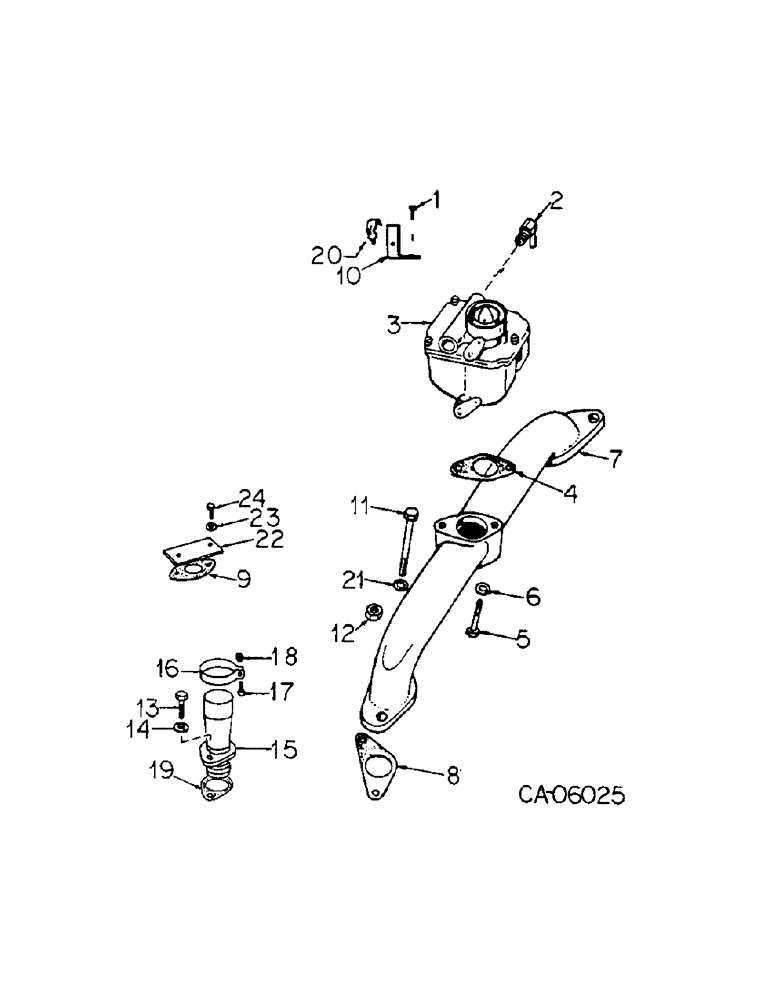

Схема запчастей Case IH 4130 - (12-10) - POWER, FUEL AND EXHAUST SYSTEM - ENGINE, FOR 4130 LOADERS WITH (04) - Drive Train
11
12
15
10
20
21
8
22
23
1
7
9
13
14
4
5
19
6
16
24
3
18
17
2

Артикул

Название

Примечание

Количество

1

436746

SCREW

no. 10NF x 1/4 znp p/hds mach

2шт.

2

75322C1

ELBOW, carb inlet pipe

1шт.

3

75323C91

CARBURETOR ASSY, Refer to carburetor assy this group components

1шт.

4

75324C1

GASKET

carb mtg

2шт.

5

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

5/16 x 2-3/4 type 5

2шт.

6

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

75325C1

MANIFOLD, intake

1шт.

8

79304C1

GASKET

intake manifold, Replaces 75326C1

1шт.

9

74173C1

GASKET, fuel pump cover

1шт.

10

75327C1

BRACKET, choke

1шт.

11

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

3шт.

11

257804R1

BOLT, 3/8 x 3 phc type 8

1шт.

12

25522R1

NUT,3/8"-16, G8

3/8 phc type 8

1шт.

13

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 phc type 8

4шт.

14

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

74175C1

ADAPTER

exhaust manifold

2шт.

16

75328C1

CLAMP

exhaust adapter

2шт.

17

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 type 5

2шт.

18

120377

NUT,3/8" - 16, Gr 5

2шт.

19

75329C1

GASKET

exhaust manifold adapter

2шт.

20

74176C1

CLAMP

choke

1шт.

21

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

22

74177C1

COVER, fuel pump opening

1шт.

23

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

24

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2 type 5

2шт.

Выбрано товаров: 25
