Запчасти Case IH 4130 (12-09) - POWER, FUEL & EXHAUST SYSTEM - ENGINE, FOR 4130 LOADERS WITH (04) - Drive Train

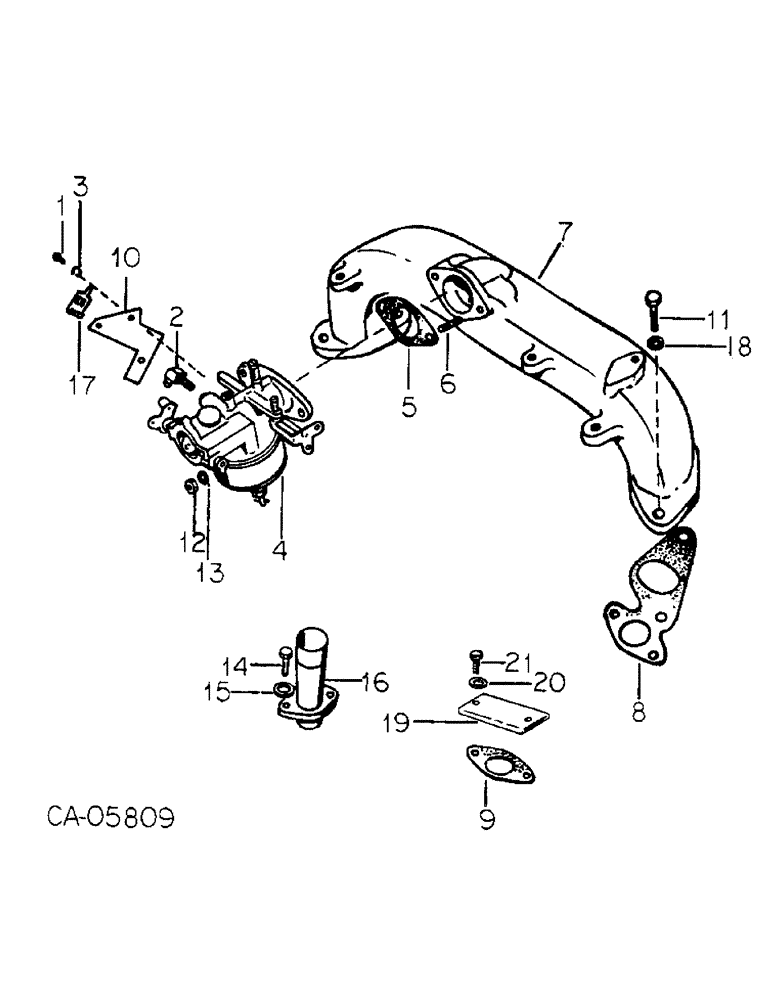

Схема запчастей Case IH 4130 - (12-09) - POWER, FUEL & EXHAUST SYSTEM - ENGINE, FOR 4130 LOADERS WITH (04) - Drive Train
1
3
21
6
12
15
10
4
7
19
17
16
8
20
5
13
2
9
14
18
11

Артикул

Название

Примечание

Количество

1

121540

BRACKET,Slotted Rd Hd, #10-32 x 5/16"

SCREW, no. 10NF x 5/16 znp r/hds mach

2шт.

2

74167C1

ELBOW, carb inlet pipe

1шт.

3

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

4

74168C91

CARBURETOR ASSY, Refer to carburetor assy this group for components

1шт.

5

74169C1

GASKET

carb mtg

2шт.

6

74170C1

STUD, carb mtg

2шт.

7

74171C1

MANIFOLD, intake

1шт.

8

74172C1

GASKET

intake & exhaust manifold

2шт.

9

74173C1

GASKET, fuel pump cover

1шт.

10

74174C1

BRACKET, choke

1шт.

11

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

4шт.

12

25931R1

JAM NUT,Jam, 5/16"-24, G8

5/16-NF phc jam type 8

2шт.

13

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 phc type 8

4шт.

15

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

74175C1

ADAPTER

exhaust manifold

2шт.

17

74176C1

CLAMP

choke

1шт.

18

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

74177C1

COVER, fuel pump opening

1шт.

20

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

21

180018

CONNECTING LINK

1/4 x 5/8 type 5

2шт.

Выбрано товаров: 21
