Запчасти Case IH 4130 (12-07) - POWER, OIL SYSTEM (04) - Drive Train

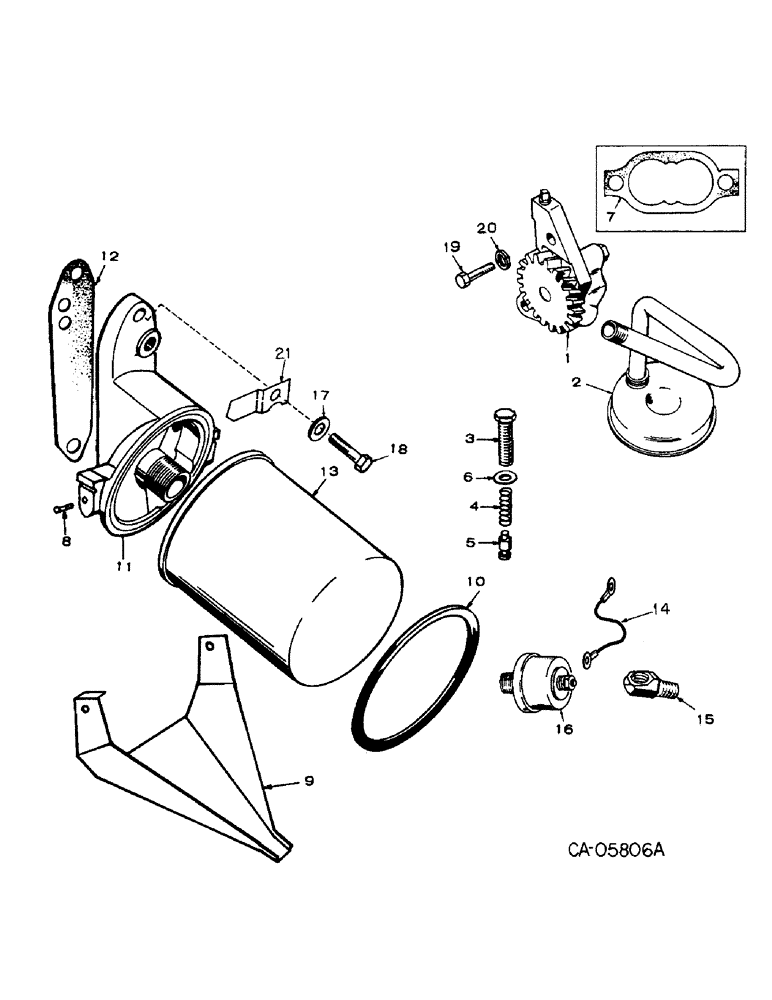

Схема запчастей Case IH 4130 - (12-07) - POWER, OIL SYSTEM (04) - Drive Train
10
11
12
16
13
15
2
6
7
1
20
17
4
18
14
8
3
9
21
19
5

Артикул

Название

Примечание

Количество

1

74153C1

ENGINE OIL PUMP

PUMP, oil

1шт.

2

74154C1

SCREEN, oil pump intake

1шт.

3

181637

3/8-NF x 1 type 5

1шт.

4

74155C1

SPRING

by-pass valve

1шт.

5

74156C1

HYDRAULIC VALVE

VALVE, by-pass

1шт.

6

74087C1

WASHER

WASHER, by-pass valve

1шт.

7

74158C1

GASKET

KIT, oil pump gasket

1шт.

8

NLS

NO LONGER SERVICED

SCREW, hex hd tapping

2шт.

9

74160C1

CHUTE, oil drain

1шт.

10

74161C1

OIL SEAL

oil filter air

1шт.

11

74162C1

ADAPTER

oil filter

1шт.

12

74163C1

GASKET

oil filter adapter mtg

1шт.

13

75318C1

FILTER

OIL

1шт.

14

75321C1

CABLE, oil pressure sender

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

15

74165C1

FITTING

ELBOW, oil pressure sender

1шт.

16

74166C1

SWITCH ASSY, oil pressure sender

1шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

16

77590C1

SENDER UNIT

SWITCH ASSY, oil pressure sender, Replaces 72235C1

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

17

74152C1

WASHER

oil filter adapting mtg

2шт.

For 4130 loaders with serial numbers 170 & below.

1шт.

17

75319C1

WASHER, oil filter adapting mtg

2шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

18

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16 x 1 phc type 8

2шт.

19

25483R1

BOLT,Hex, 1/4" - 20 x 1", Gr 8

1/4 x 1 phc type 8

2шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

75320C1

BRACKET, ign timing pointer

1шт.

For 4130 loaders with serial numbers 171 & above.

1шт.

Выбрано товаров: 29
