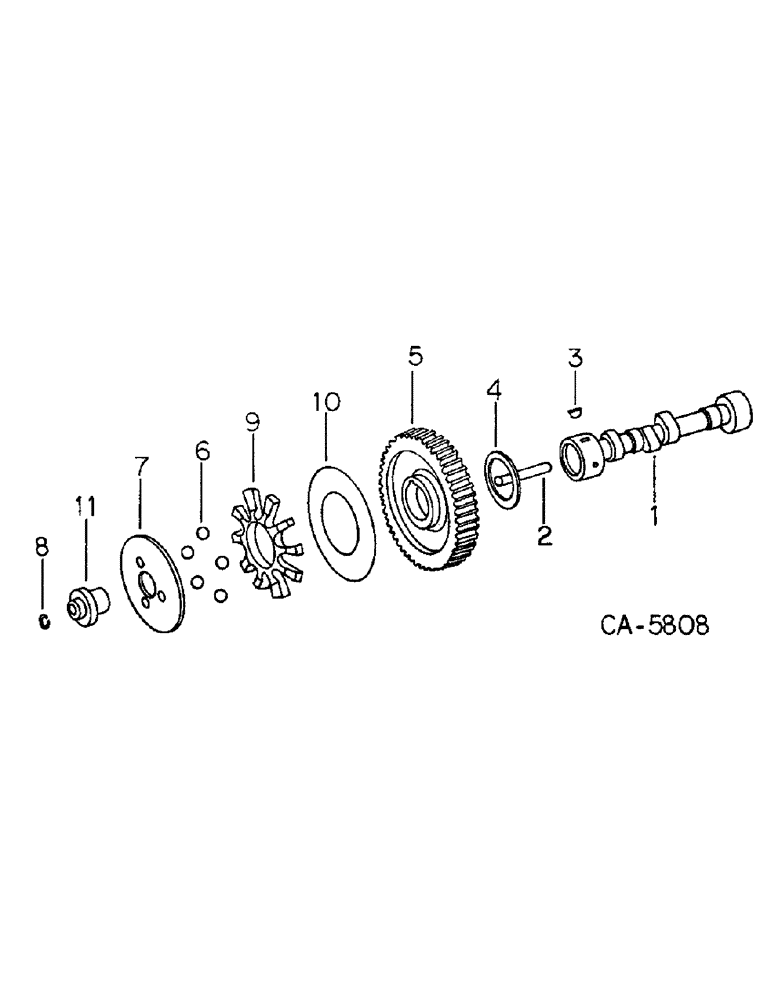

Запчасти Case IH 4130 (12-05) - POWER, CAMSHAFT (04) - Drive Train

1

74109C91

CAMSHAFT ASSY, Includes ref. no. 2

1шт.

2

74110C1

PIN

1шт.

3

74100C1

KEY

gear

1шт.

4

74111C1

WASHER, thrust

1шт.

5

74112C91

GEAR ASSY, Includes ref. nos. 9 & 10

1шт.

6

74113C1

BALL

gov fly

5шт.

7

74114C1

CUP

gov

1шт.

8

74115C1

OIL SEAL

RING, retaining, For 4130 loaders, Serial Range: -170

1шт.

8

75315C1

RING, retaining, For 4130 loaders, Start Serial: 171

1шт.

9

74116C1

SPACER

fly ball

1шт.

10

74117C1

LARGE PLATE

PLATE, fly ball

1шт.

11

74118C1

HUB

gov cup

1шт.
